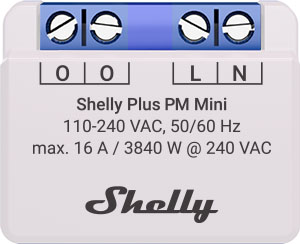

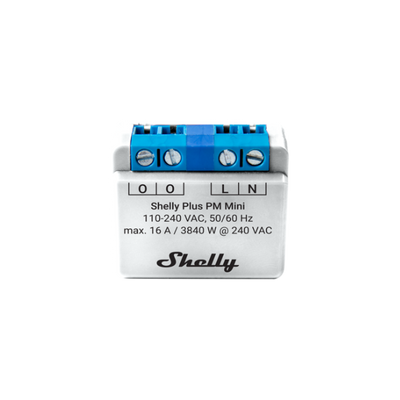

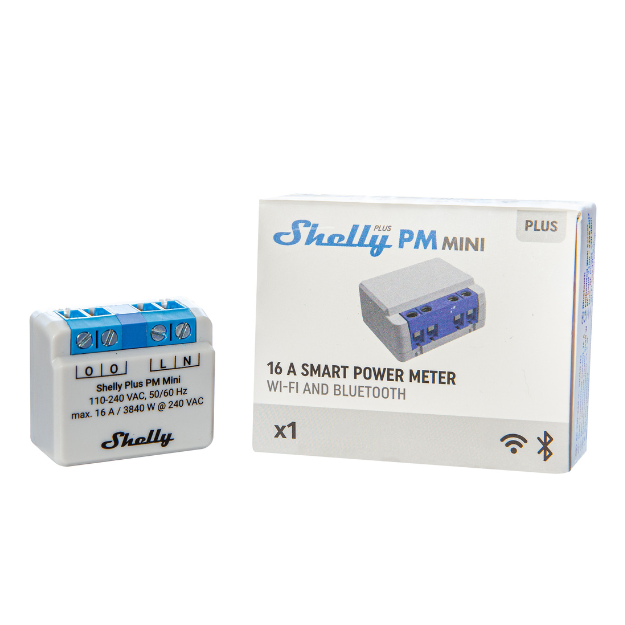

Shelly Plus PM Mini

Name: Shelly Plus PM Mini
Brand: Shelly Europe | Easy Smart Home Automation
SKU: FG3800235265673
Price: 15.35 EUR
Availability: InStock

Device identification

Device name: Shelly Plus PM Mini
Device model: SNPM-001PCEU16
Device SSID: ShellyPMMini-XXXXXX

Short description

Shelly Plus PM Mini (The Device) is a small form factor power meter. Enhanced with all the gen2 firmware flexibility, it provides professional integrators with additional options for end-customer solutions. It can work standalone in a local Wi-Fi network, or it can also be operated through cloud home automation services through MQTT, HTTP, and WebSocket. All inbound connections support TLS.

Shelly Plus PM Mini can be accessed, set up, and monitored remotely by the User, as well as the Device can access and communicate with an automation system, as long as they are in the same network infrastructure.

The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

NOTICE! The Device does not have a built-in relay.

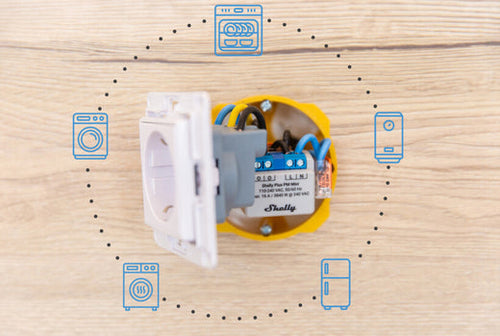

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

Simplified internal schematics

Device electrical interfaces

Inputs

2 line inputs on screw terminals: 1 L and 1 N

Outputs

2 load circuit outputs (bridged internally): 2 O

Connectivity

Wi-Fi
Bluetooth (for inclusion purposes)

Each connectivity option can be enabled or disabled by the user.

Safety features

Internal temperature sensing and reporting

Supported load types

Resistive (incandescent bulbs, heating devices)
Capacitive (LED light drivers, capacitor banks, electronic equipment, motor start capacitors)
Inductive (transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

One (Reset) button
- Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
- Press and hold for 10 seconds to factory reset the Device.

Outputs

LED (monocolor) indication
- AP (Access Point) enabled and Wi-Fi disabled:
  1 second ON / 1 second OFF
- Wi-Fi enabled, but not connected to a Wi-Fi network:
  1 second ON / 3 seconds OFF
- Connected to a Wi-Fi network:
  Constantly ON
- Cloud is enabled, but not connected:
  1 second ON /5 seconds OFF
- Connected to Shelly Cloud:
  Constantly ON
- OTA (Over the Air Update):
  1/2 sec ON / 1/2 second OFF
- Button pressed and held for 5 seconds:
  1/2 second ON / 1/2 second OFF
- Button presses and held for 10 seconds:
  1/4 second ON / 1/4 second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Type	Value
Physical

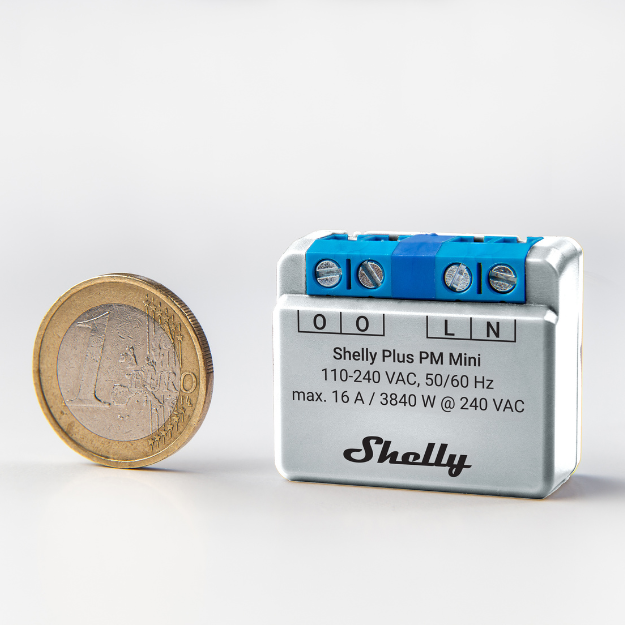

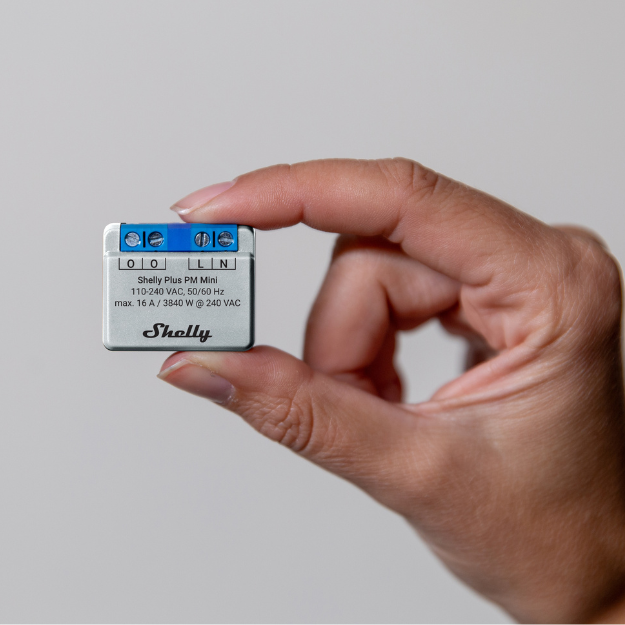

Size (HxWxD):	29x35x16 +-0.5 mm / 1.11x1.35x0.63 +-0.02 in
Weight:	13 +-1 g / 0.46 +-0.04 oz

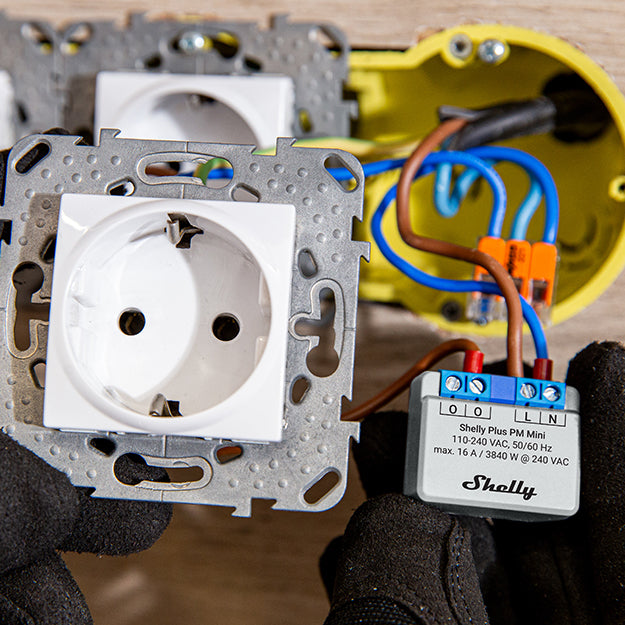

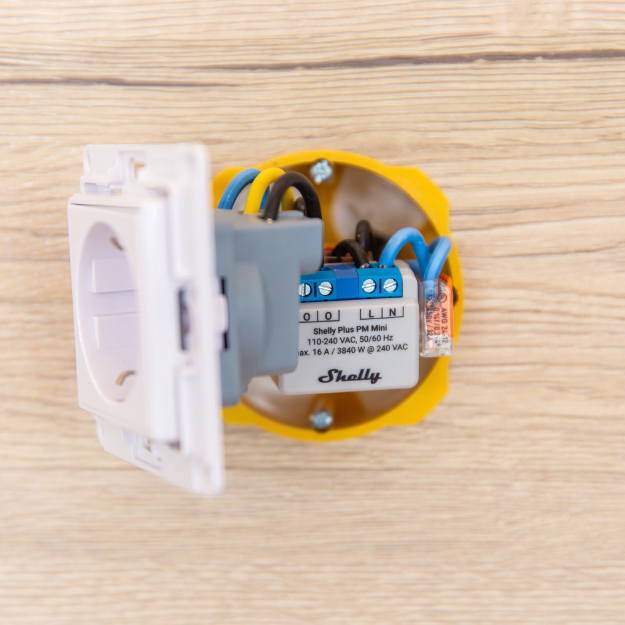

Mounting:	Wall box
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 1.5 mm2 / 20 to 16 AWG
Conductor stripped length:	5 to 6 mm / 0.20 to 0.24 in
Shell material:	Plastic
Color:	Light gray
Environmental
Ambient temperature:	-20 degC to 40 degC / -5 degF to 105 degF
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Electrical
Power supply:	110 - 240 VAC
External protection:	16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
Power consumption:	<1.2 W
Output circuits ratings
Max measurement voltage:	240 VAC
Max measurement current:	16 A
Max measurement power:	3840 W
Power measurement:	Yes
Voltage protection / Cutoff:	No
Current protection / Cutoff:	No
Max power protection / Cutoff:	No
Radio
RF band:	2400 - 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32
Flash:	4 MB
Firmware capabilities
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes
UDP:	Yes
Scripting:	Yes

Basic wiring diagrams

Legend

Terminals		Wires
O	Load circuit output terminals (bridged internally)	L	Live (110-240 V) wire
L	Live (110-240 V) terminal	N	Neutral wire
N	Neutral terminal

Troubleshooting

Your device is overheating.

Make sure the ambient temperature does not exceed 40 degC / 105 degF. If placed in confined space Shelly Plus PM Mini may increase the ambient temperature above the allowed limits. Ensure ventilation of the Device.
