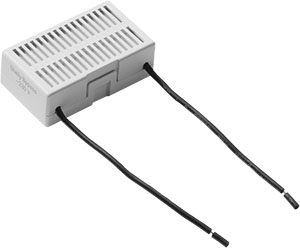

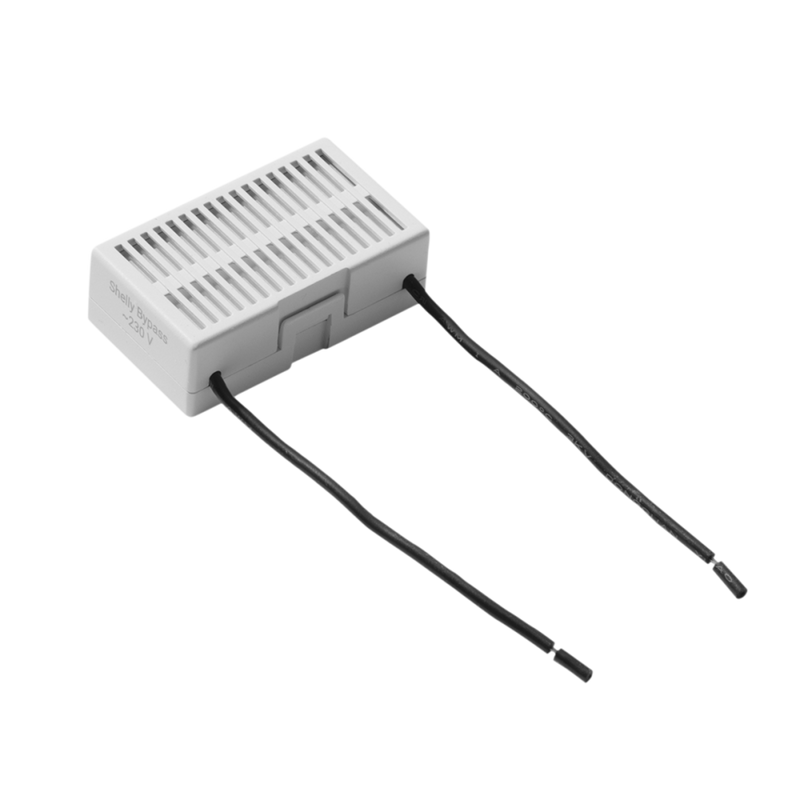

Shelly Bypass
Short description
Shelly Bypass is required for Shelly devices that do not need neutral wire to operate if the load they switch is less than 20 W at 240 VAC.
Compatibility:
Compatible with Shelly 1L, Shelly 2L, and Shelly Dimmer 2.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Specifications
Type |
Value |
|---|---|
Physical | |
Size (HxWxD): |
39x23x13 mm / in (without wires) |
Material: |
Plastic |
Color: |
White |
Environmental | |
Ambient temperature: |
-20° C to 70° C / -5° F to 158° F |
Humidity: |
30 % to 70 % RH |
Max. altitude |
2000 m / 6562 ft |
Electrical | |
Working voltage: |
230 VAC |
Power consumption: |
<4 W |
Printed User Guide
Multilanguage user guide - English, Deutsch, Italiano, Español, Português, Français
