Shelly BLU Gateway
Device identification
-
Device name: ShellyBLU Gateway
-
Device model: GWF-KZ01
-
Firmware model ID: SNGW-BT01
-
Device SSID: ShellyBluGw-XXXXXXXXXXXX
Short description

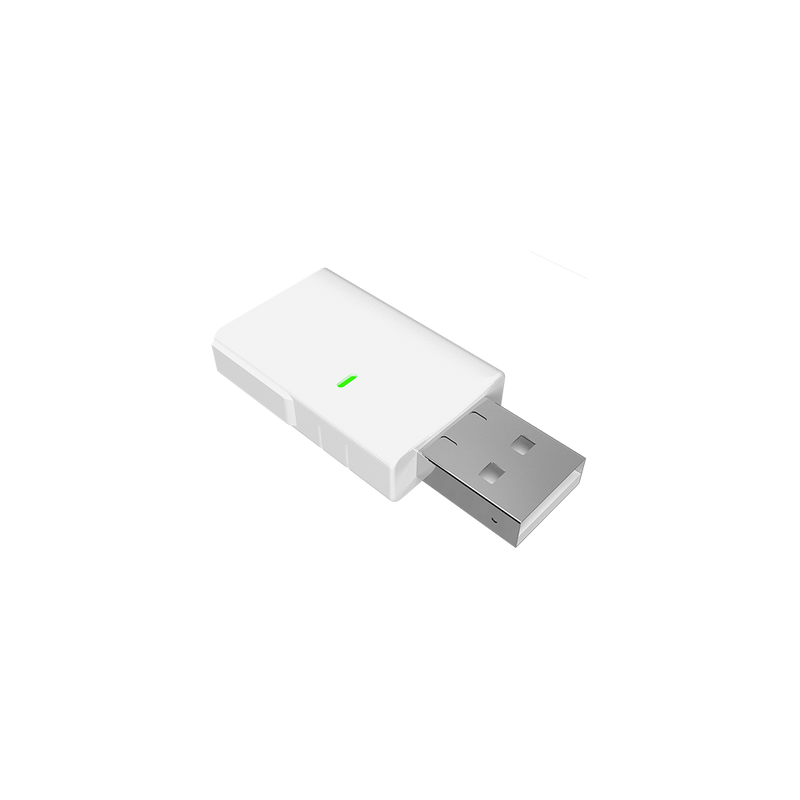

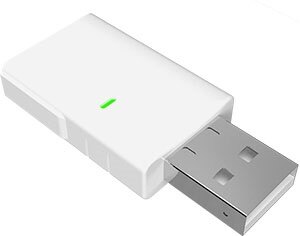

ShellyBLU Gateway (the Device) is a smart BLE to Wi-Fi gateway in a USB A dongle.
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
Government/municipal
-
University/college
USB Type-A Plug
Connectivity
-
Wi-Fi
-
Bluetooth
User interface
Inputs
-
One (Reset) button
-
Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
-
Press and hold for 10 seconds to factory reset the Device.
-
Outputs
-
LED indication
-
Blue light indicator will be on if in AP mode.
-
Red light indicator will be on if in STA mode and not connected to a Wi-Fi network.
-
Yellow light indicator will be on if in STA mode and connected to a Wi-Fi network. Not connected to Shelly Cloud or Shelly Cloud disabled.
-
Green light indicator will be on if in STA mode and connected to a Wi-Fi network and to the Shelly Cloud.
-
The light indicator will be flashing Red/Blue if OTA update is in progress.
-
Specifications
|
Type |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
45x20x8 mm / 1.77x0.79x0.21 in |
|
Weight: |
5 g / 0.18 oz |
|
Material: |
Plastic |
|
Color: |
White |
|
Environmental |
|
|
Ambient temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity |
30 % to 70 % RH |
|
Electrical |
|
|
Power supply: |
5 VDC (from USB Type-A port) |
|
Power consumption: |
< 1 W |
|
Radio |
|
|
RF band: |
2400 - 2495 MHz |
|
Max. RF power: |
<20 dBm |
|
Wi-Fi protocol: |
802.11 b/g/n |
|
Wi-Fi Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
|
Bluetooth Protocol: |
4.2 |
|
Bluetooth Range: |
Up to 20 m / 66 ft indoors and 30 m / 100 ft outdoors |
|
MCU |
|
|
CPU: |
ESP32 |
|
Flash: |
4 MB |
|
Firmware capabilities |
|
|
Scripting: |
Yes |
|
MQTT: |
Yes |
|
CoAP: |
No |
Troubleshooting
...
Components and APIs
Compliance
Shelly BLU Gateway multilingual EU declaration of conformity.pdf
Shelly BLU Gateway UK PSTI ACT Statement of compliance.pdf
Printed user guide
Shelly BLU Gateway multilingual printed user and safety guide.pdf
Installation guides
