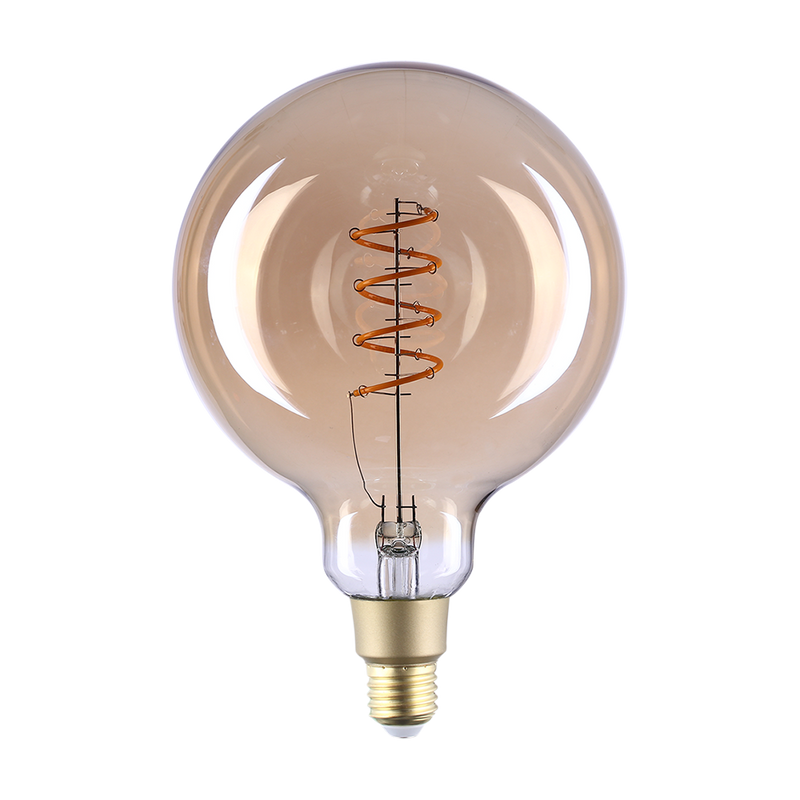

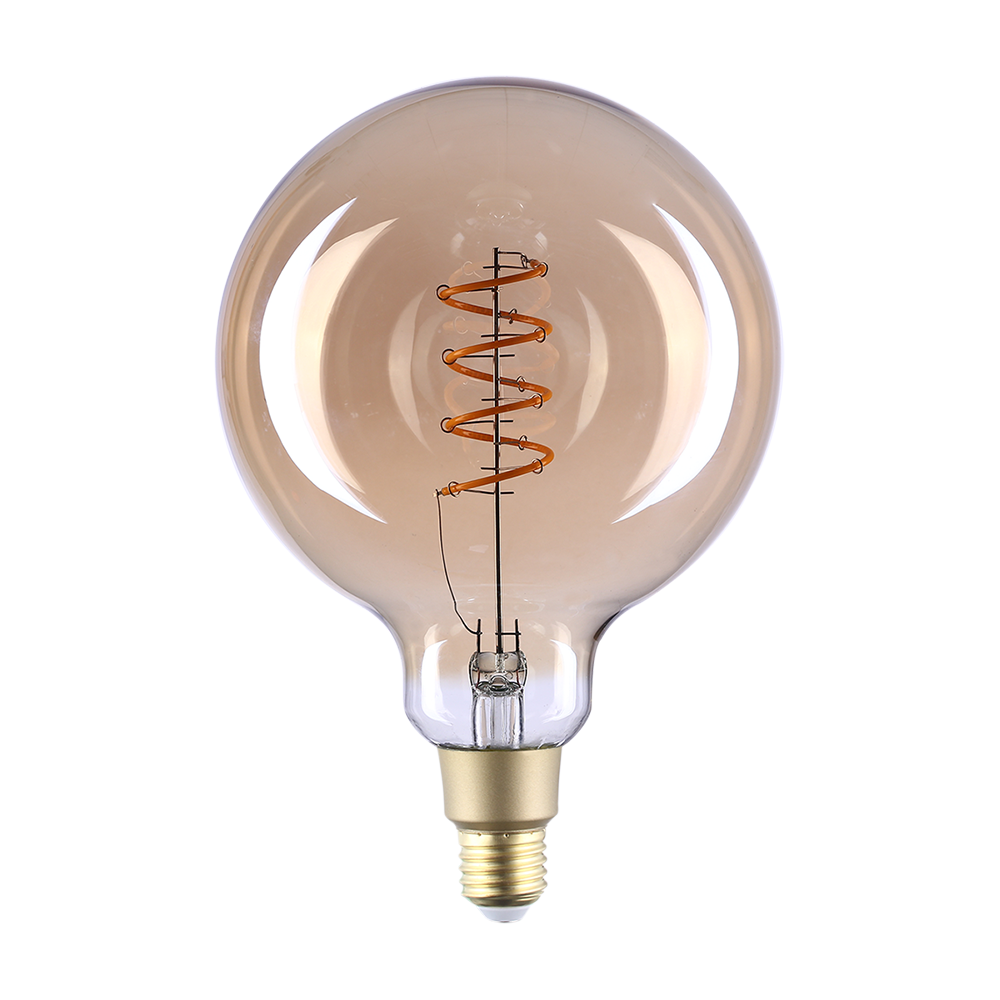

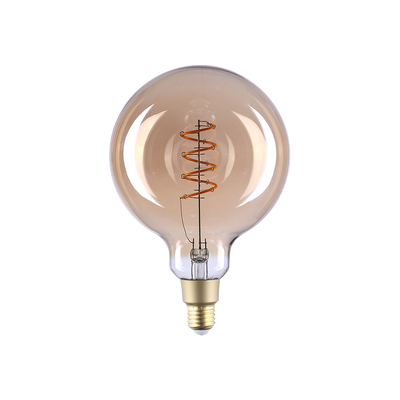

What is Shelly Vintage?
Vintage bulb with a spectacular design
Control the lighting at home, no matter where you are. Now you wont be leaving the lights on and your home wont welcome you in darkness. Shelly Vintage Bulbs can be set to automatically turn on/off based on the sunrise and sunset hours.
Features
No HUB required.
Wide range of voltage support.
Dimmable white light by fine-tuning your brightness.
It can be integrated to work with all other Shelly devices.
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
Easily make your Arduino project live and usable in your automation project.
Specification
POWER | |
Power Rating |
|
Socket |
E27 |
Power supply AC |
230 V ±10%, 50 Hz |
Power supply DC |
No |
SPECIAL FUNCTIONS | |
Device temperature protection |
No |
Overload protection |
No |
Power measurement |
Yes |
Dimming |
Yes |
FEATURES | |
Brightness |
|
Beam angle |
360° |
Color changing |
No |
Color Index |
Ra > 80 |
Color Temperature |
2700 K (Warm white) |
Filament |
Straight |
Glass/Coating |
Clear |
Predefined effects |
No |
Protection Class |
IP20 |
Operational temperature |
-10 ?C to +40 ?C |
Device power consumption |
< 1 W |
Local and remote control |
Yes |
Sunrise/Sunset |
Yes |
Weekly Schedule |
Yes |
Lifetime |
15,000 hours |
CONNECTIVITY | |
Wireless / Wi-Fi Protocol |
802.11 b/g/n |
RF band |
2401 2483 MHz |
Max. RF power |
< 20 dBm |
Range |
up to 50 m outdoors and up to 30 m indoors (depend on the building materials) |
DIMENSIONS | |
Size: |
|
