Wave i4 (EU)
Note: The product line known as "Shelly Qubino Wave" will now be referred to as "Shelly Wave". This name change will not impact the functionality of any devices. The only modification will be the use of the new name in all future documentation.

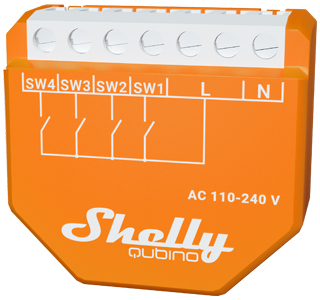

Device: Wave i4
EU Part number/Ordering Code: QNSN-0A24XEU
Z-Wave Product type ID: 0x0009
Z-Wave Product ID: 0x0081
Z-Wave Manufacturer: Shelly Europe Ltd.
Z-Wave Manufacturer ID: 0x0460
Terminology
Device - In this document, the term Device is used to refer to the Shelly Qubino device that is a subject of this guide.
Gateway - A Z-Wave® gateway, also referred to as a Z-Wave® controller, Z-Wave® main controller, Z-Wave® primary controller, or Z-Wave® hub, etc., is a device that serves as a central hub for a Z-Wave® smart home network. The term gateway is used in this document.
S button - The Z-Wave® Service button, located on Z-Wave® devices and is used for various functions such as adding (inclusion), removing (exclusion), and resetting the device to its factory default settings. The term "S button" is used in this document.
Adding/Inclusion - The process of adding Z-Wave device to a Z-Wave network - gateway. The words included, added, etc. are used in this regard.
Removing/Exclusion - The process of removing Z-Wave device from a Z-Wave network - gateway. The words excluded, removed, etc. are used in this regard.
Blind - Refers to any kind of window treatment, such as venetian blinds, roller blinds (screens), roller shutters, vertical window blinds, curtains, integral venetian blinds, pleated blinds, awnings, etc. Additionally, Wave Shutter can also control window motors, projector screens, or any type of bi-directional AC motor (Wave Shutter DC control any kind of bi-directional DC motor).
Short description
The Device is a 4-digital inputs module (110-240 V AC) that controls other devices within the Z-Wave network. It enables manual activation or deactivation of scenes through a switch/push-button.

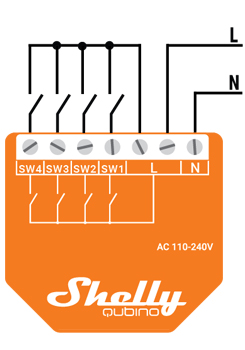

Switch/push-button connected to input terminal SW1
The device supports Central Scene Command Class and when a button is single pressed, double pressed, held and released, it will transmit a scene notification together with scene number (1,2,3 or 4)
NOTE: Switch type is not supported for triggering central scene notifications

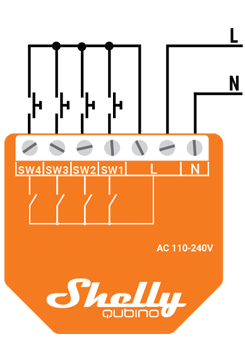

Push-button connected to input terminal SW1
If the SW1 is configured as a push-button:
Scene number = 0X01
Short press: Central scene notification Key pressed 1 time=0x00 with scene number 0X01 is sent and send command to the associated devices in associated groups 4 (check chapter Z-Wave Association).
2x Short press: Central scene notification Key pressed 2 time=0x00 is sent.
Press and hold: Central scene notification Key held down =0x02 is sent and Send command to the associated devices in associated group 5 (check chapter Z-Wave Association).
Release: Central scene notification Key released =0x01 is sent and Send command to the associated devices in associated group 5 (check chapter Z-Wave Association).
If the SW1 is configured as a switch:
Change switch position once: Send the command to the associated devices in associated groups 4 and 5 (check chapter Z-Wave Association).
If the SW1 is configured as a switch-memory:
Switching to Close switch-memory contact: send command to the associated devices in associated groups 4 and 5 (check chapter Z-Wave Association) according to switch state.
Switching to Open switch-memory contact: send command to the associated devices in associated groups 4 and 5 (check chapter Z-Wave Association) according to switch state.
Switch/push-button connected to input terminal SW2
If the SW2 is configured as a push-button:
Scene number = 0X02
Short press: Central scene notification Key pressed 1 time=0x00 with scene number 0X02 is sent and send command to the associated devices in associated groups 6 (check chapter Z-Wave Association).
2x Short press: Central scene notification Key pressed 2 time=0x00 is sent.
Press and hold: Central scene notification Key held down =0x02 is sent and Send command to the associated devices in associated group 7 (check chapter Z-Wave Association).
Release: Central scene notification Key released =0x01 is sent and Send command to the associated devices in associated group 7 (check chapter Z-Wave Association).
If the SW2 is configured as a switch:
Change switch position once: Send the command to the associated devices in associated groups 6 and 7 (check chapter Z-Wave Association).
If the SW2 is configured as a switch-memory:
Switching to Close switch-memory contact: send command to the associated devices in associated groups 6 and 7 (check chapter Z-Wave Association) according to switch state.
Switching to Open switch-memory contact: send command to the associated devices in associated groups 6 and 7 (check chapter Z-Wave Association) according to switch state.
Switch/push-button connected to input terminal SW3
If the SW3 is configured as a push-button:
Scene number = 0X03
Short press: Central scene notification Key pressed 1 time=0x00 with scene number 0X03 is sent and send command to the associated devices in associated groups 8 (check chapter Z-Wave Association).
2x Short press: Central scene notification Key pressed 2 time=0x00 is sent.
Press and hold: Central scene notification Key held down =0x02 is sent and Send command to the associated devices in associated group 9 (check chapter Z-Wave Association).
Release: Central scene notification Key released =0x01 is sent and Send command to the associated devices in associated group 9 (check chapter Z-Wave Association).
If the SW3 is configured as a switch:
Change switch position once: Send the command to the associated devices in associated groups 8 and 9 (check chapter Z-Wave Association).
If the SW3 is configured as a switch-memory:
Switching to Close switch-memory contact: send command to the associated devices in associated groups 8 and 9 (check chapter Z-Wave Association) according to switch state.
Switching to Open switch-memory contact: send command to the associated devices in associated groups 8 and 9 (check chapter Z-Wave Association) according to switch state.
Switch/push-button connected to input terminal SW4
If the SW4 is configured as a push-button:
Scene number = 0X04
Short press: Central scene notification Key pressed 1 time=0x00 with scene number 0X04 is sent and send command to the associated devices in associated groups 10 (check chapter Z-Wave Association).
2x Short press: Central scene notification Key pressed 2 time=0x00 is sent.
Press and hold: Central scene notification Key held down =0x02 is sent and Send command to the associated devices in associated group 11 (check chapter Z-Wave Association).
Release: Central scene notification Key released =0x01 is sent and Send command to the associated devices in associated group 11 (check chapter Z-Wave Association).
If the SW4 is configured as a switch:
Change switch position once: Send the command to the associated devices in associated groups 8 and 9 (check chapter Z-Wave Association).
If the SW4 is configured as a switch-memory:
Switching to Close switch-memory contact: send command to the associated devices in associated groups 10 and 11 (check chapter Z-Wave Association) according to switch state.
Switching to Open switch-memory contact: send command to the associated devices in associated groups 10 and 11 (check chapter Z-Wave Association) according to switch state.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Integrations
Shelly Qubino Wave devices are developed on the world's leading technology for smart homes Z-Wave.
This means Shelly Qubino Wave works with all certified gateways supporting Z-Wave communication protocol.
To make sure the functions of Shelly Qubino Wave products are supported on your gateway, we are regularly executing compatibility tests of our devices with different Z-Wave gateways. Please refer to the reports available in the 'Compatibility with Gateways' section below for detailed information on compatibility status.
Simplified internal schematics
N/A
Device electrical interfaces
Inputs
1 switch/button input on screw terminal
2 switch/button inputs on screw terminal
3 switch/button inputs on screw terminal
4 switch/button inputs on screw terminal
3 power supply inputs on screw terminals: N, L
Outputs
N/A
Connectivity
Z-Wave - Unsecure, S0 Security, S2 Unauthenticated Security, S2 Authenticated Security
Safety features
Overheat protection
switch off its own relay
sends the Notification Report to the Gateway (Overheat detected)
the led lights react as specified above (check blinking mode for Overheat detected)
Any of next activities reset this alarm: power cycle, short press on S button, press any switch-push button connected to any SW (SW, SW1, SW2, ) terminal.
NOTE: The Overheat protection is always active and cannot be disabled.
Additional description above under chapter Notification for Overheat detected.
Supported load types
N/A
User interface
S button and operating modes
Normal mode
Setting in progress mode
-
Setting mode (with S button)
Settings mode is required to start desired procedure for example: adding (inclusion), removing (exclusion), factory reset etc. It has a limited time of operation. After the procedure in Setting mode is concluded, the Device goes automatically into Normal mode.
-
Entering to Setting mode:
Quickly press and hold the S button on the Device until the LED turns solid blue
An additional quick press on the S button means menu change in infinite loop
Menu LED status has a timeout of 10s before entering again into Normal state
S buttons functions
Manually adding the Device to a Z-Wave network
Manually removing the Device from a Z-Wave network
Factory Reset the Device
LED Signalisation
Normal mode
Removed/Excluded
The LED will be blinking blue in Mode 1 for 10 min after every power cycle and 10 min after S button pressed.
Added/Included
The LED will be blinking green in Mode 1 for 10 min after every power cycle and 10 min after S button pressed.
Settings in progress
Factory reset and reboot
During factory reset, the LED will turn solid green for approx. 1sec, then the blue and red LED will be blinking 0,1s On, 0,1s Off for about 2sec.
Adding / Removing
During adding or removing, the LED will be blinking blue in Mode 2.
Firmware updating OTA
During the OTA update, the LED will be blinking blue and red in Mode 2.
Checking power supply 230 V AC frequency or 24 V DC voltage
During checking the power supply, the LED will be blinking blue and red in Mode 5.
Settings mode with S button
Adding / Removing menu selected
When the menu is selected the LED will be on blue, for maximum of 10 seconds.
Adding / Removing menu - while pressing S- button - Add/Remove process selected
When the menu is executing the LED will be blinking blue in Mode 3.
Factory reset menu selected
When the menu is selected the LED will be on red, for maximum of 10 seconds.
Factory reset - while pressing S - button - Factory reset process selected
When the menu is executing the LED will be blinking red in Mode 3.
Alarm Mode
Overheat detected
The LED will be blinking red in Mode 4 - 2x (LED 0,2s On / 0,2s Off) + 2s Off and repeating this sequence
LED blinking modes
Specifications
Power supply AC |
110 - 240 V AC, 50/60 Hz |
Power supply DC |
No |
Power consumption |
< 0.2 W |
Overload protection |
No |
Power measurement |
No |
Working without a neutral line |
No |
Number of inputs |
4 |
Distance |
Up to 40 m indoors (131 ft.) (depends on local condition) |
Z-Wave® repeater: |
Yes |
CPU |
Z-Wave® S800 |
Z-Wave® frequency band: |
868,4 MHz |
Maximum radio frequency power transmitted in frequency band(s) |
< 25 mW |
Size (H x W x D) |
37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
Weight |
17 g / 0.6 oz |
