Shelly 1L

Name: Shelly 1L
Brand: Shelly Europe | Easy Smart Home Automation
SKU: S1L
Price: 18.45 EUR
Availability: OutOfStock

Device identification

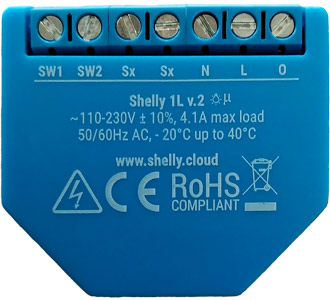

Device name: Shelly 1L
Device model: SHSW-L
Device SSID: shelly1l-XXXXXX

Short description

Shelly 1L is a small smart switch, which handles the problem of many light switches being difficult to automate, because they can operate without Neutral. Shelly 1L solves this problem, because it only needs the hot line. The device allows remote control of the appliance connected to it through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly 1L can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly 1L has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Integrations

Google
Samsung SmartThings
Alexa

Simplified internal schematics

Device electrical interfaces

Inputs

2 switch/button inputs on screw terminals
2 power supply inputs on screw terminals: N and L

Outputs

2 switch signal output on screw terminal
Load output on screw terminal

Add-on interface

Shelly proprietary serial interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

Wi-Fi

Safety features

Overheating protection

Supported load types

(with and without Neutral)

Resistive (incandescent bulbs, heating devices)
Capacitive (capacitor banks, electronic equipment, motor start capacitors)
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

One (Reset) button
- Press and hold for 5 seconds to enable Device access point.
- Press and hold for 10 seconds to factory reset the Device.

Specifications

Type	Value
Physical
Size (HxWxD):	38x43x14 ±0.5 mm / 1.50x1.69x3.55 ±0.02 in
Weight:
Mounting:	Wall console
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length:	5 to 6 mm / 0.20 to 0.24 in
Shell material:	Plastic
Color:	Cyan
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply AC:	110 - 240V, 50/60Hz
Power supply DC:	No
Neutral not needed:	Yes
Min. load without neutral	20 W resistive load
Power consumption:	< 1 W
Output circuits ratings
Max switching voltage AC:	250 V
Max switching voltage DC:	N/A
Max switching current AC:	4.1 A (5 A peak)
Max switching current DC:	N/A
Sensors, meters
Internal-temperature sensor:	Yes
Radio
RF band:	2401 - 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP8266
Flash:	2 MB
Firmware capabilities
Schedules:	18
Webhooks (URL actions):	10 with 5 URLs per hook
Scripting:	No
MQTT:	Yes
CoAP:	Yes

Basic wiring diagrams

1L with N wiring diagram-20240528-141423.png

1L without N wiring diagram-20240528-141338.png

Legend

Terminals		Wires
SW1	Switch 1 input terminal	L	Live (110 - 240 VAC) wire
SW2	Switch 2 input terminal	N	Neutral wire
Sx	Switch signal output terminal
N	Neutral terminal
L	Live (110-240 V) terminal
O	Load output terminal
