Shellyblu Gateway

Device identification

  • Device name: ShellyBLU Gateway

  • Device model: GWF-KZ01

  • Firmware model ID: SNGW-BT01

  • Device SSID: ShellyBluGw-XXXXXXXXXXXX



Short description

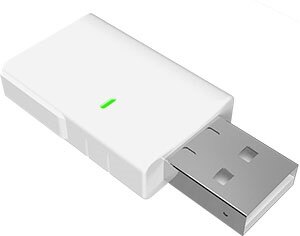

ShellyBLU Gateway (the Device) is a smart BLE to Wi-Fi gateway in a USB A dongle.



Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

USB Type-A Plug



Connectivity

  • Wi-Fi

  • Bluetooth



User interface

Inputs

  • One (Reset) button

    • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

    • Press and hold for 10 seconds to factory reset the Device.

Outputs

  • LED indication

    • Blue light indicator will be on if in AP mode.

    • Red light indicator will be on if in STA mode and not connected to a Wi-Fi network.

    • Yellow light indicator will be on if in STA mode and connected to a Wi-Fi network. Not connected to Shelly Cloud or Shelly Cloud disabled.

    • Green light indicator will be on if in STA mode and connected to a Wi-Fi network and to the Shelly Cloud.

    • The light indicator will be flashing Red/Blue if OTA update is in progress.



Specifications

Type

Value

Physical

Size (HxWxD):

45x20x8 mm / 1.77x0.79x0.21 in

Weight:

5 g / 0.18 oz

Material:

Plastic

Color:

White

Environmental

Ambient temperature:

-20 jjaeC to 40 jjaeC / -5 jjaeF to 105 jjaeF

Humidity

30 % to 70 % RH

Electrical

Power supply:

5 VDC (from USB Type-A port)

Power consumption:

< 1 W

Radio

RF band:

2400 - 2495 MHz

Max. RF power:

<20 dBm

Wi-Fi protocol:

802.11 b/g/n

Wi-Fi Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol:

4.2

Bluetooth Range:

Up to 20 m / 66 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU:

ESP32

Flash:

4 MB

Firmware capabilities

Scripting:

Yes

MQTT:

Yes

CoAP:

No
