Physical

Size (HxWxD):

45x40x36 ±0.5 mm / 1.77x1.57x1.42 ±0.02 in (without the cable)

Weight:

75 ±1 g / 2.65 ±0.05 oz (with the cable)

Conductor aperture:

Ø15 mm / Ø0.6 in

Core:

Ferite

Shell material:

Plastic

Color:

White

Environmental

Ambient temperature:

-10 °C to 50 °C / 14 °F to 122 °F

Humidity:

0 % to 80 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Primary/secondary current ratio:

3000/1

Rated max. primary current:

120 A

Electrical strength:

3000 VAC, 60 sec

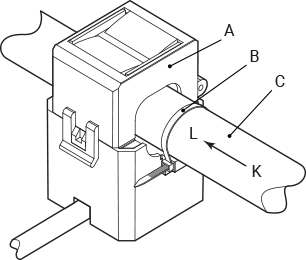

A

Shelly CT 120A

B

Cable tie (another one on the opposite side)

C

Primary conductor
