Shelly BLU Wall Switch 4 + Adapter Legrand

€17,73

Incl. VAT Shipping calculated at checkout.

In stock

Shelly BLU Wall Switch 4 + Adapter Legrand

€17,73

Incl. VAT Shipping calculated at checkout.

In stock

Variants: Legrand Adapter Gira/Merten adapter Legrand Adapter Busch-Jaeger adapter Stand-Alone

Key Features

Uses BLE technology (Bluetooth-operated)
2 years battery life
Encryption (high level of security)
Supports multi-click - single, double, triple, and long press (16 actions in total)
Beacon mode - If enabled, the device will emit beacons every 8 seconds
3M patch included in the box
Compact size, portability, and ease of use
Full compatibility with Home Assistant and any other device which is supported by BTHome protocol (out of the box)

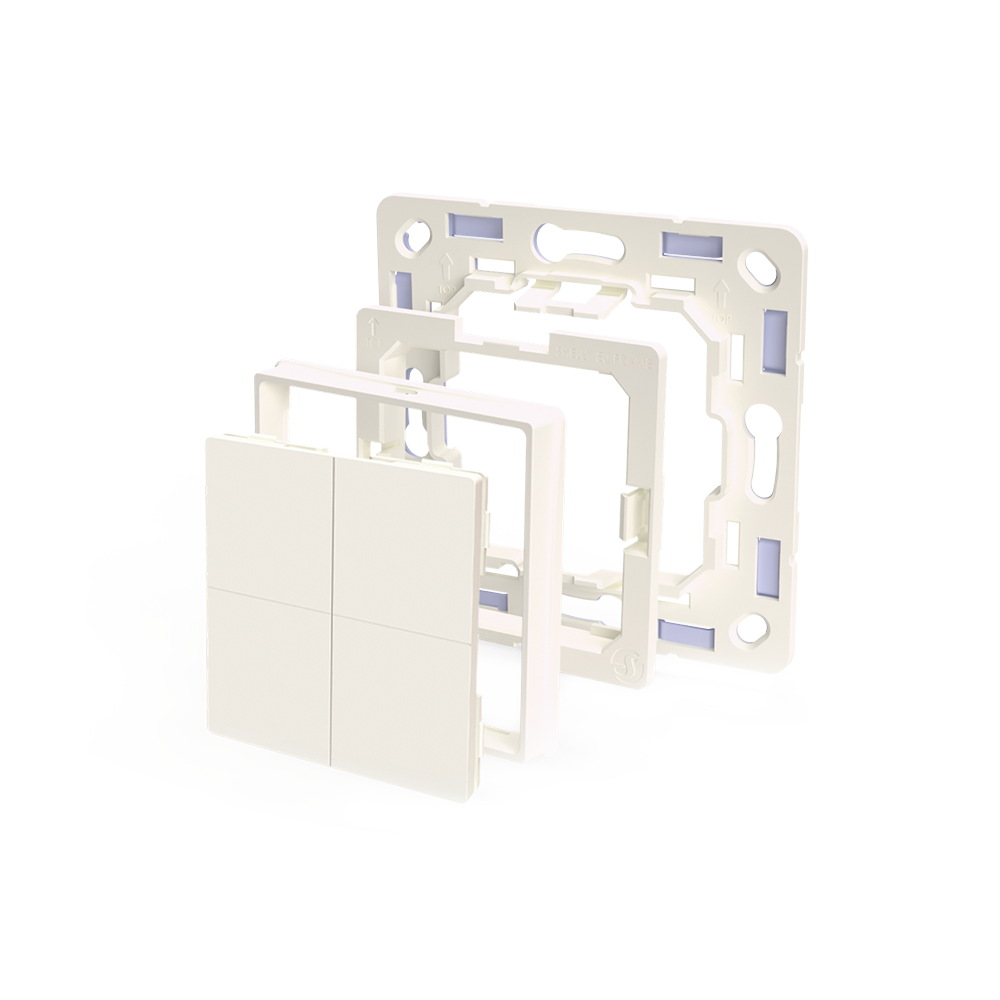

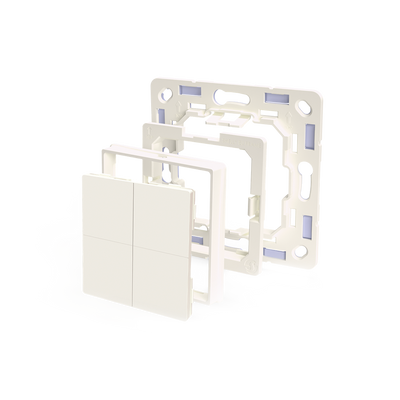

*Please note, this package does not include the frames; it only contains the adapters needed to fit Shelly BLU Wall Switch 4 into your existing Legrand (Niloe) frames.

Shelly BLU Wall Switch 4

Device image

Device identification

Device name: Shelly BLU Wall Switch 4
Device model: SBBT-004CEU
Device Bluetooth ID: 0x0006

Short description

Shelly BLU Wall Switch 4 (the Device) is a smart four-button Bluetooth control interface. It can be mounted seamlessly with various standard switch ranges. It can also be used as a standalone remote control. The Device features a long battery life, supports multi-click and strong encryption.

Main features

Long battery life
Supports multi-click
Compact size, portability, and ease of use
Strong encryption

Use cases

Lighting control: Assign the button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.
Garage door opener: Use the strong encryption of Shelly BLU Wall Switch 4 and control your smart garage door opener as you approach or leave your garage.
Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.
Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the Device for presence control, for example to keep lights on while you need to spend some time in a certain area.
Scene control: Use the 4 buttons to activate any scene or specific actions you can imagine. Each button supports single, double, triple and long push - which allows the user to make 16 different actions!
Mix and match your interior design with the wide number of 3rd party frames supported
No wiring needed

Connectivity

Bluetooth

User interface

Inputs

Four push buttons
- Press and hold for 10 sec to pair Shelly BLU Wall Switch 4 with another Bluetooth device.
- Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).

Specifications

Quantity	Value
Physical
Size (HxWxD):	46x46x13 mm / 1.81x1.81x0.51 in
Weight:	17 g / 0.6 oz
Shell material:	Plastic
Shell color:	Ivory
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30% to 70% RH
Electrical
Power supply:	1x 3 V battery (included)
Battery type:	CR2032
Estimated battery life:	Up to 2 years
Bluetooth
Protocol:	4.2
RF band:	2400 - 2483.5 MHz
Max. RF power:	< 4 dBm
Range:	Up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)
Encryption:	AES (CCM mode)

Troubleshooting

…

Compliance

Shelly BLU Wall Switch 4 multilingual EU declaration of conformity.pdf

Battery material safety data sheet

CR-PSDS-01_MSDS_Panasonic CR2030.pdf

Components and APIs

Printed user guide

Shelly BLU Wall Switch 4 multilingual printed user and safety guide.pdf

Knowledge Base

View full details

why shelly blu wall switch 4?

Smart Control Made Simple

Whether mounted on the wall* or used stand-alone, Shelly BLU Wall Switch 4 adapts to your lifestyle. Equip your home with the ability to perform up to 16 different actions using simple click combinations. From turning lights on and off to activating appliances or custom scenes, control is always at your fingertips. It's designed to fit seamlessly with wall frames from leading brands like Shelly, Legrand, Gira, Merten, and Busch-Jaeger, ensuring it complements any room’s decor.

*Select the product variation that best suits your needs and preferences.

Solutions

Shelly BLU Wall Switch 4

One Switch, Many Uses

Replace your ordinary switches with Shelly BLU Wall Switch 4! Easily mountable, on any wall, without any wiring, Shelly BLU Wall Switch 4 lets you manage lighting, appliances and activate scenes from one place. Configure the four customizable buttons to perform up to 16 actions - turn appliances on and off, adjust dimming, or activate scenes. For example, you could use it to shut down all non-essential devices when leaving home with just 1 button press.

Portable control

When used standalone, it lets you freely manage your home's lighting, appliances, and scenes from anywhere within range. Configure the four buttons to handle tasks like turning off upstairs lights from your downstairs couch, adjusting thermostat settings without leaving your bed. Shelly BLU Wall Switch 4 puts convenience in your hands, making it easy to adapt your surroundings to any activity.

Set the perfect brightness and position

Shelly BLU Wall Switch 4 gives you precise control over your curtains, blinds, shutters, and dimming lights. Adjust your curtains through the customizable button presses that can set their exact position. Similarly, the dimming feature allows you to tailor brightness to
match any activity and create the ideal ambiance every time.

Two Choices in One Pack

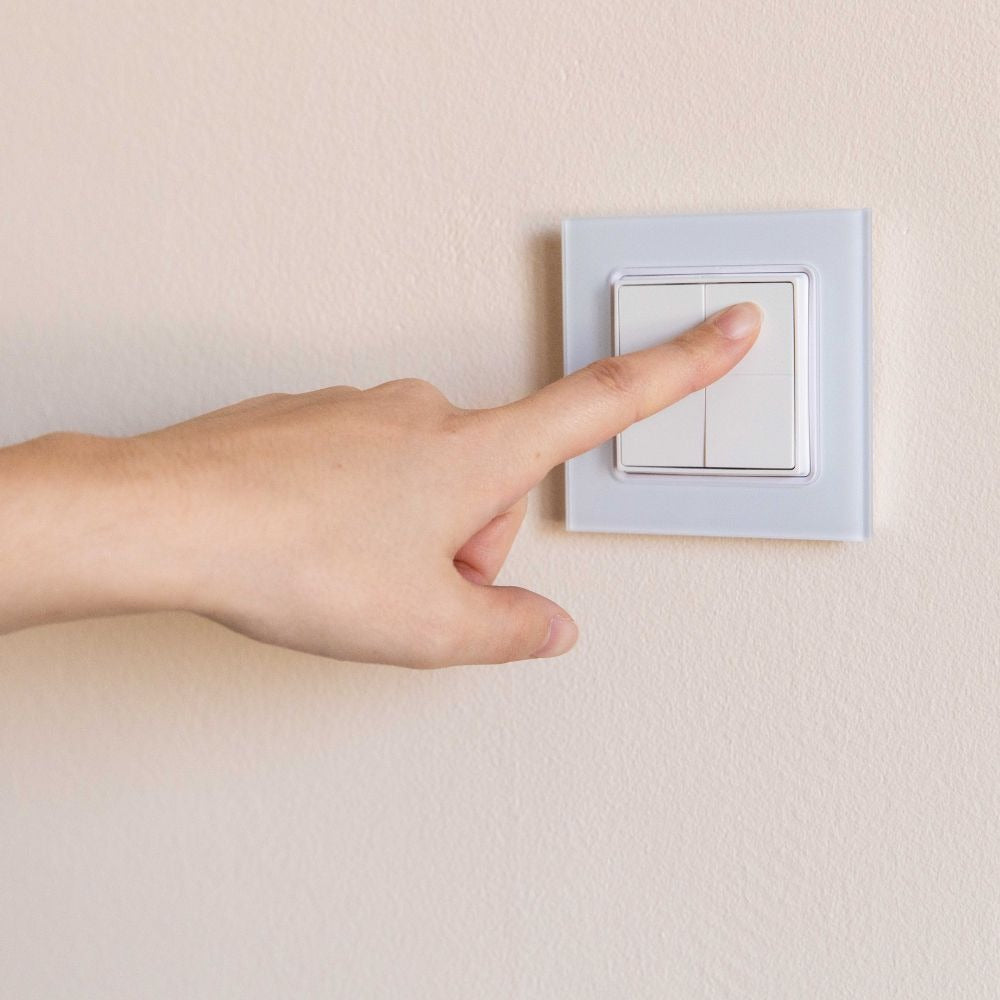

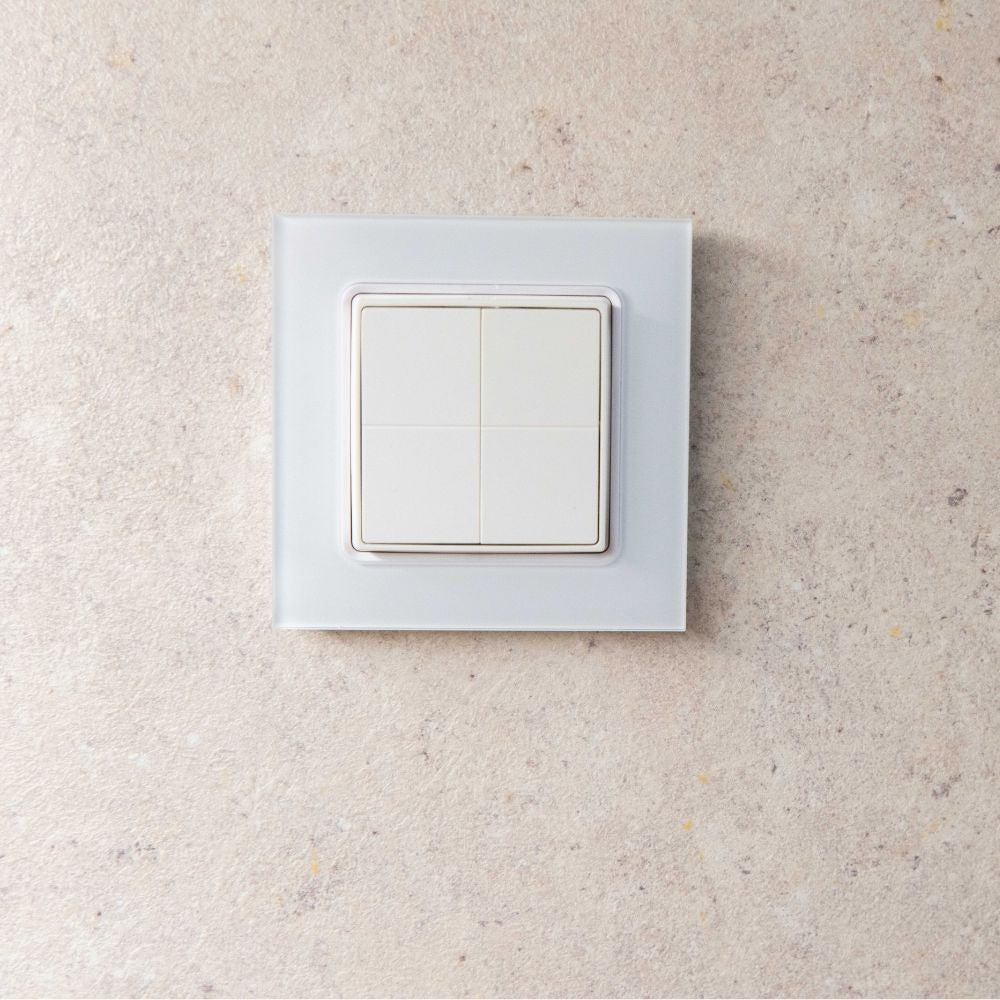

Use as a wall switch

The adapter sets enable you to use the Shelly BLU Wall Switch as a standard wall switch, seamlessly replacing your current one while keeping your existing frame.

Use stand-alone

The standalone version enables you to use Shelly BLU Wall Switch as a portable device. Enjoy the flexibility and ease of use without permanent installation.

Use as a wall switch

The adapter sets enable you to use the Shelly BLU Wall Switch as a standard wall switch, seamlessly replacing your current one while keeping your existing frame.

Use stand-alone

The standalone version enables you to use Shelly BLU Wall Switch as a portable device. Enjoy the flexibility and ease of use without permanent installation.
