Manage your smart devices from one centralized place with Shelly Wall Display, now combined with Shelly BLU H&T for precise climate control
3
3 Years Manufacturer Warranty
3 Years Warranty
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
Typically used for:
Room management
Thermostat
Centralized control
Couldn't load pickup availability
Key Features
Integrated 5 A relay for appliance control; neutral required
Embedded sensors for Temperature, Humidity & LUX
Power consumption monitoring of all devices in your chosen room
Can function as a room thermostat
Easy navigation and customizable home screen and brightness
Create scenes and schedules

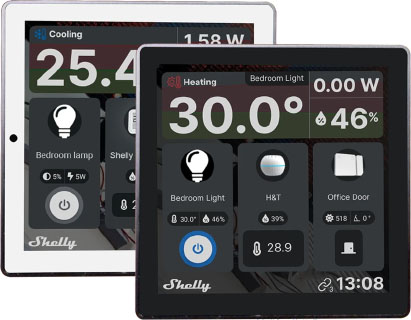

Shelly Wall Display
Device identification
Device name: Shelly Wall Display
Device model: SAWD1
Short description
Shelly Wall Display (the Device) is a smart home control panel with a 4 color display and load circuit switching functionality.
Main features
Touch-sensitive 4 color display
Easy navigation and customizable home screen
Integrated relay for appliance control
Integrated temperature, humidity, and light sensors
Power consumption monitoring of all devices in a room in your Shelly Smart Control account
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Integrations
N/A

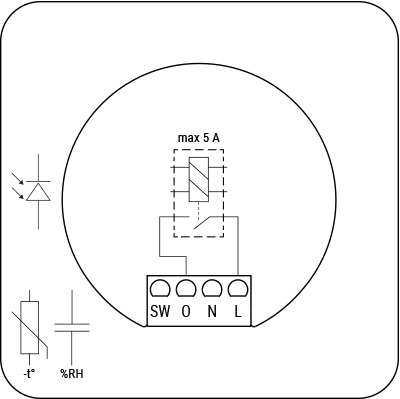

Simplified internal schematics

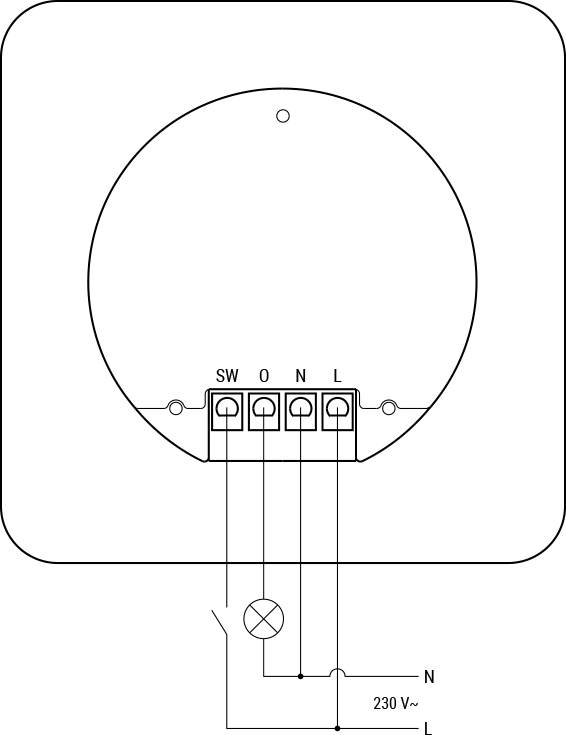

Device electrical interfaces
Inputs
1 switch/button input on screw terminal
2 power supply inputs on screw terminals: N and L
Outputs
1 relay output with power measurement on screw terminal
Shelly Wall Display is a sophisticated 4-inch display that brings intuitive control and seamless monitoring to every corner of your smart home. Whether it's dimming the lights, adjusting the room's ambiance, or ensuring optimal energy efficiency, this smart control panel makes home management simple. The highly customizable home screen becomes a reflection of your preferences, offering a quick glimpse of essential home details. Together with Shelly BLU H&T, it can function as a smart thermostat, allowing you to easily fine-tune your heating or cooling.
Features
Personalized Home Screen for Instant Control
Tailor your home screen just the way you like it. Effortlessly arrange and customize the layout to showcase up to 6 devices that matter most to you. You can switch devices on or off with a single tap, monitor humidity and temperature, and know the room’s current power consumption with just a glance.
Quick Control Center: Your Chosen Favorites
This dedicated space lets you create an unlimited collection of your most-used devices, groups, and scenes, putting them all at easy access. Need to set the perfect ambiance? Want to control device groups with a single tap? Simply add them to your favorites and navigate to them instantly. Say goodbye to scrolling through menus – the Favorites Tab ensures that whatever you need is right where you expect it to be.
Device Tab (room-specific)
Access all your devices at a glance using the Devices Tab on Shelly Wall Display. See a complete list of devices that are set up in your chosen room, and control each one individually.
Room-Specific Groups Tab
Simplify control by quickly managing your existing groups. Discover and control the groups of devices that work together harmoniously within the selected room, all in one convenient place.
Scenes Tab (room-specific)
Transform your space in an instant. Discover the scenes you’ve created to set the perfect ambiance for any occasion. Whether it’s a cozy movie night or a fun gathering, the Scenes Tab empowers you to alter the mood with a simple touch.
Wi-Fi and Bluetooth connectivity
Connect it to your Wi-Fi network. No HUB required! Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
Integrated switch
Features a 5 A switch for appliance control
Instant environmental data
Integrated LUX sensor & precise temperature and humidity data from Shelly BLU H&T for monitoring and automations
Power monitoring
Of all power measuring devices in your chosen room
Thermostat
Monitor, manage and fine-tune your heating or cooling settings together with data from Shelly BLU H&T.
Easy navigation
Scroll through different menus and control your devices with just a tap
Solutions
Shelly Wall Display+BLU H&T
Modernize your Lighting Setup
Replace your traditional switches with Shelly Wall Display and wire its built-in 5A relay to your lights. With a simple two-finger tap, you can switch the relay on or off without the need to look. And don't worry - the relay can also be wired to a traditional light switch next to the display to suit the needs of everyone in your home. Yet Shelly Wall Display is more than just a smart switch - the intuitive touch interface lets you effortlessly move between tabs and control your other devices as well. It also actively monitors the room’s temperature, humidity, and power usage, displaying this information on the home screen at all times.
A Smart Thermostat for Your Home
Shelly Wall Display can also function as a thermostat together with Shelly BLU H&T, presenting an intuitive interface for monitoring, managing, and fine-turning your heating or cooling settings. It works to craft an optimal energy-efficient experience, no matter how large the room is. Working in harmony with other Shelly devices, it dynamically adjusts your heating or cooling settings to maintain the ideal temperature, ensuring your environment is always comfortable and efficient.
