Elevate your lighting control with Shelly DALI Dimmer Gen3 – your ultimate device for brightness control of a DALI network of lights.
3
3 Years Manufacturer Warranty
3 Years Warranty
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.Learn more
Couldn't load pickup availability
Key Features
Wi-Fi and Bluetooth connectivity (BLE gateway and Wi-Fi range extender)
DALI single master application controller
Supports LED control gear (DALI Part 207 gear)
Bus power supply guaranteed 10mA (up to 5 DALI control gear units)
Smart schedules
Night mode: Enables to set a specific brightness of lights during night time
Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control
Button fade rate: Controls how quickly the brightness changes while holding the button(s)
Transition duration: Controls the time for dimming from 0 to 100%
Supports scripting, webhooks, MQTT and local actions
Supports KNXnet / IP communication
No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants

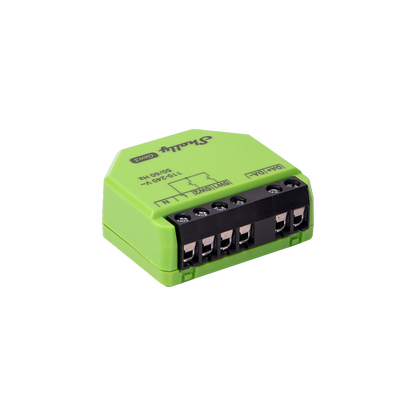

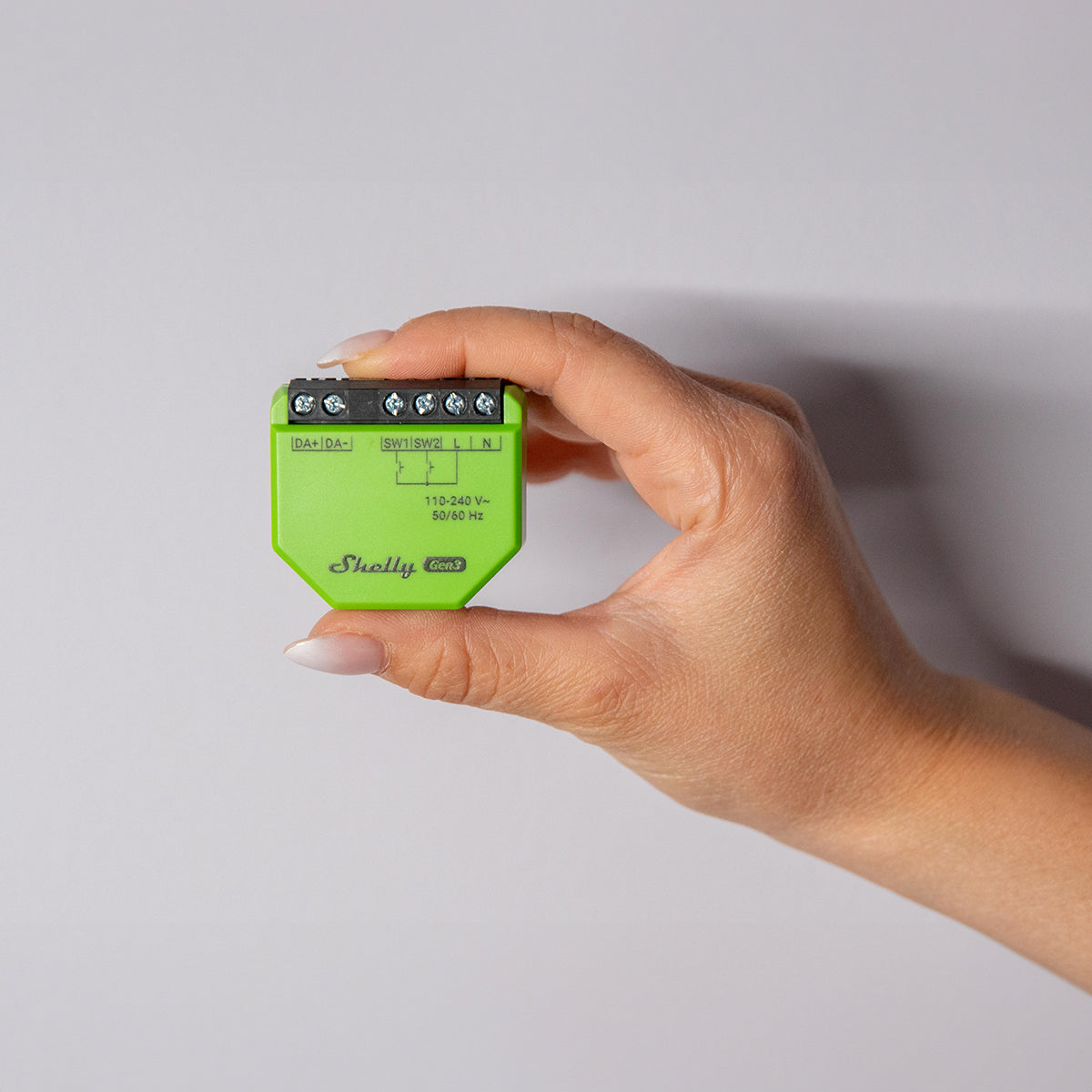

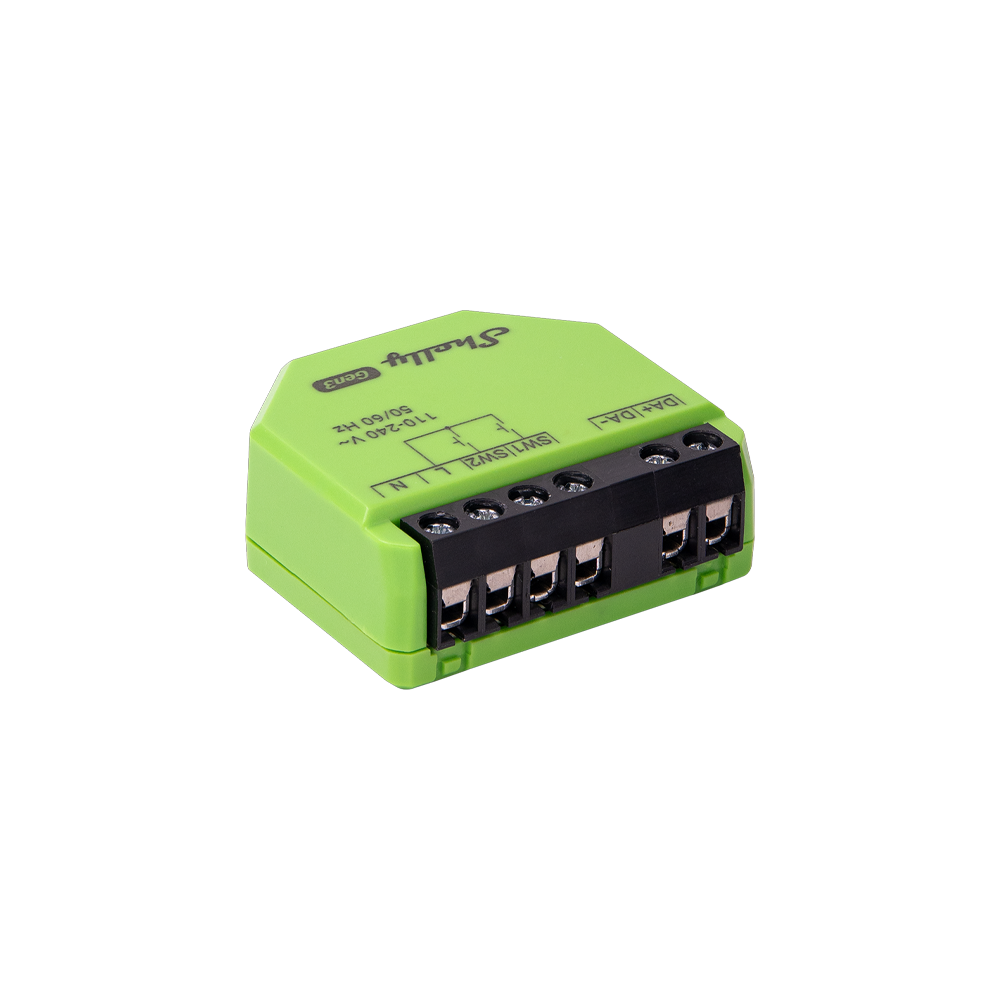

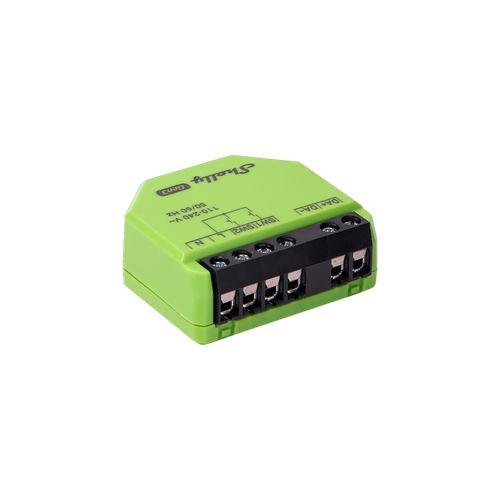

Shelly DALI Dimmer Gen3
Device identification
Device name: Shelly DALI Dimmer Gen3
Device model: S3DM-0A1WW
Device SSID: ShellyDDimmerG3-XXXXXXXXXXXX
Device Bluetooth ID: 0x1071
Short description
Shelly DALI Dimmer (the Device) is a gateway device between Shelly ecosystem and APIs and a DALI network of lights. It can control DALI capable light sources that contain DALI control gear.
In terms of DALI it is a single-master application controller, supporting LED control gear (Part 207), which does not share the bus with other DALI control devices. Shelly DALI Dimmer controls all connected DALI control gear as a single group with broadcast messages.
The Device contains a bus power supply with possibility to control up to X non-powered bus units.
The Shelly DALI Dimmer can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as it is connected to a Wi-Fi router and the Internet.
It has an embedded Web Interface which can be used to monitor and control the Device, as well as adjust its settings.
Main features
DALI application controller: Supports DALI bus control in a single-master configuration of direct or indirect DALI control gear lights.
DALI features: Control light intensity of attached control gear (DT6). Color temperature control is not supported.
DALI power on default: off
DALI on bus failure: turn on at 100%
Shelly Plus Add-on compatible: The Device supports connection with the sensor interface to the Shelly Plus devices.
Switch/Button input mode: Allows flexible input control through switches or buttons.
One/dual button dimming control: Allows to use the full functionalities of the Device for dimming control with any wall switch configuration.
Night mode: Enables to set a specific brightness of input lights during nighttime.
Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.
Button fade rate: Controls how quickly the output brightness changes while holding the button(s).
Transition duration: Controls the time for dimming from 0 to 100 %.
Weekly schedules: Supports daily schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.
Auto on/off timers: Enables auto on/off timer setting.
Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, a
nd flip value of the dimming signal.
Webhooks: Support automation through lightweight, event-driven communication with other devices.
BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.
Wi-Fi Range Extender: Retransmits the Wi-Fi signal and extends its reach.
Scripting: Allows creating automation scenarios through scripts.
Compatibility: Highly compatible with 3rd Party home automation systems.
No need for hub: Ready for use locally or remotely via Shelly Smart Control or 3rd Party systems.
Use cases
Add DALI lights to a Shelly ecosystem
Use Shelly interfaces - application, local APIs to control DALI lights
Integrations
Amazon Alexa supported capabilities
Brightness Controller
Google Smart Home supported traits
Brightness
Samsung SmartThings supported capabilities
Color Control
Simplified internal schematics

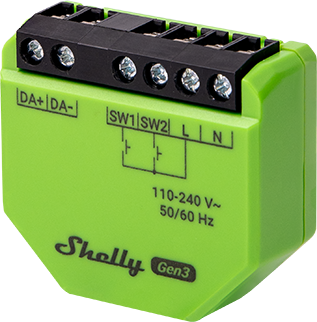

Device electrical interfaces
Inputs
2 switch/button inputs on screw terminals: S1 and S2
2 power supply inputs on screw terminals: 1 N and 1 L
Outputs
2 DALI bus lines: D+ and D-
Add-on interface
Shelly proprietary serial interface
⚠CAUTION! High voltage on the add-on interface when the Device is powered!
Connectivity
Wi-Fi
Bluetooth
Safety function
Overheating protection
Supported load types
Can control up to 5 DALI bus units. Rated current of internal power supply 10mA. Bus units should be externally powered.
Contains DALI bus power supply with a maximum output current less than 35mA
User interface
Inputs
One (Control) button
Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
Press and hold for 10 seconds to factory reset the Device.
Outputs
LED (monocolor) indication
AP (Access Point) enabled and Wi-Fi disabled: 1 second ON / 1 second OFF
Wi-Fi enabled, but not connected to a Wi-Fi network: 1 second ON / 3 seconds OFF
Connected to a Wi-Fi network: Constantly ON
Cloud is enabled, but not connected: 1 second ON /5 seconds OFF
Connected to Shelly Cloud: Constantly ON
OTA (Over the Air Update): ½ sec ON / ½ second OFF
Button pressed and held for 5 seconds: ½ second ON / ½ second OFF
Button presses and held for 10 seconds: ¼ second ON / ¼ second OFF
The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.
Specifications
Quantity
Value
Physical
Size (HxWxD):
42x37x17 mm / 1.65x1.46x0.66 in
Weight:
18 g / 0.63 oz
Screw terminals max torque:
0.4 Nm / 3.5 lbin
Conductor cross section:
0.5 to 1.5 mm² / 20 to 16 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:
5 to 6 mm / 0.20 to 0.24 in
Mounting:
In-wall, suspended ceilings
Shell material:
Plastic
Shell color:
Green
Environmental
Ambient working temperature:
-20 °C to 40 °C / -5 °F to 105 °F
Humidity:
-20 °C to 40 °C / -5 °F to 105 °F
Max. altitude:
2000 m / 6562 ft
Electrical
Power supply:
110 - 240 VAC ±10% 50/60Hz
Power consumption:
< 2 W
Neutral not needed:
No
Output circuits ratings
Bus power supply
Guaranteed 10mA (up to 5 DALI control gear units), Short circuit current < 35 mA
Bus voltage
16V nominal
Sensors, meters
Internal-temperature sensor:
Yes
Radio
Wi-Fi
Protocol:
802.11 b/g/n
RF band:
2401 - 2495 МHz
Max. RF power:
< 20 dBm
Range:
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:
4.2
RF band:
2400 - 2483.5 MHz
Max. RF power:
< 4 dBm
Range:
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:
ESP32-C3 Shelly
Flash:
8 MB
Firmware capabilities
Schedules:
20
Webhooks (URL actions):
20 with 5 URLs per hook
Scripting:
Yes
MQTT:
Yes
Encryption:
Yes, TLS 1.2

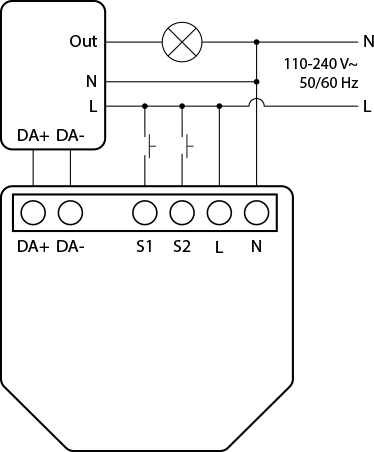

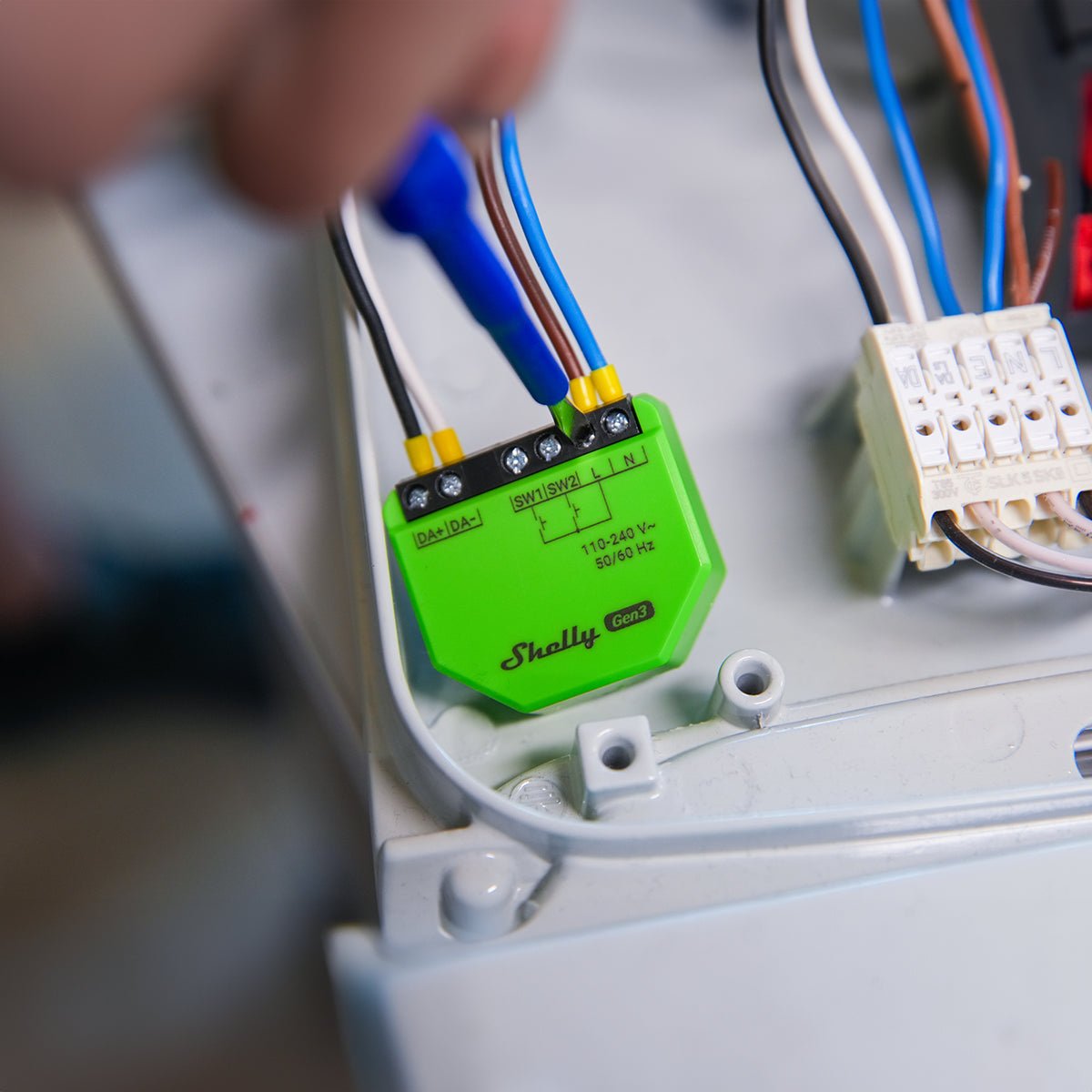

Basic wiring diagrams
Legend
Terminals
Wires
N
Neutral terminal
N
Neutral wire
L
Live (110-240 V~) terminal
L
Live (110 - 240 V~) wire 50-60 Hz
Out
Dali dimmer load output
S1, S2
Switch input terminals
DA+
Dali interface positive terminal
DA-
Dali interface negative terminal
Troubleshooting
Check the correct installation of the CT:
If negative readings on a measured circuit are read and are not expected, check the correct installation of the CT (K->L).
Ensure that the device is properly powered:
Check power cables, outlets, and any power indicators on the device.
Inspect Connections:
Verify that all connections, including cables and wiring, are secure and properly seated. Loose connections can lead to functionality issues.
Review Device Settings:
If applicable, check and review the device settings. Ensure that configurations are correct and match your intended use.
Update Firmware/Software:
Check if there are any available firmware or software updates for the device. Keeping the device up-to-date can resolve known issues and improve performance.
Restart or Reboot:
Sometimes, a simple restart can resolve temporary glitches. Turn off the device, wait a few seconds, and then power it back on.
Check Network Connection:
If the device is connected to a network, ensure that the network settings are correct. Test the network connection and consider restarting routers or switches if needed.
Inspect Physical Components:
Physically inspect the device for any signs of damage, overheating, or unusual behavior.
Check Compatibility:
Ensure that the device is compatible with other components in your system, including hardware and software. Incompatibility issues can lead to malfunctions.
Monitor Environmental Factors:
Consider environmental factors such as temperature and humidity.
Inspect Power Supply Quality:
Poor power quality, including voltage spikes or fluctuations, can affect device performance. Consider using a surge protector or voltage regulator if needed.
*These are general troubleshooting steps, and the specific steps may vary based on the type of device or issue you are facing. If the issue persists and you are unable to resolve it, consider reaching out to our technical customer support.

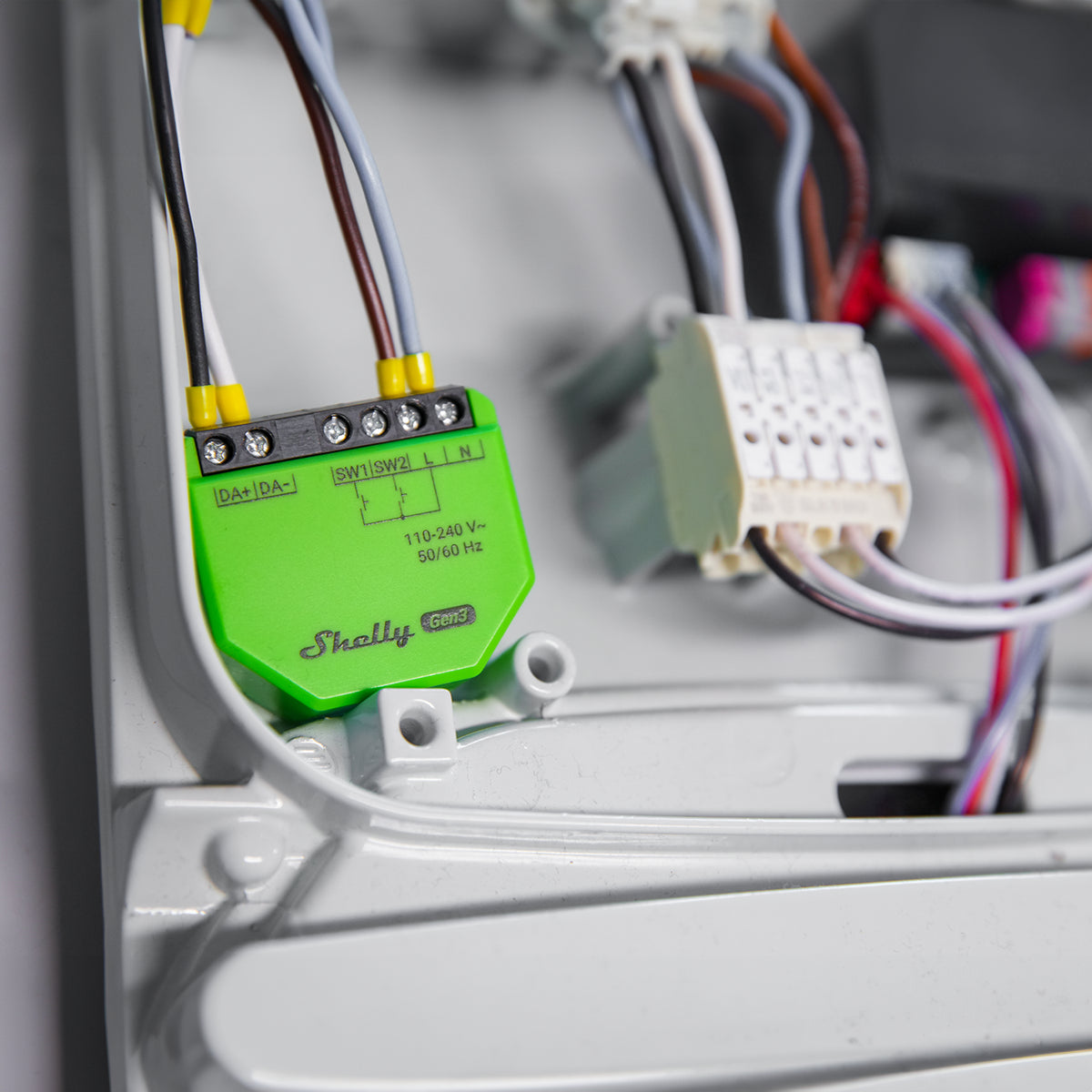

Control high-end DALI luminaires with Shelly DALI Dimmer Gen3 and integrate them into your Shelly smart ecosystem. Experience a predictable and repeatable brightness control of DALI lights with additional functions for easy maintenance. Excellent integration with external Shelly sensors or input controls enhance and automate the usability of your home or office space.
Control of DALI Part 207 gear
Shelly DALI Dimmer Gen3 is designed to provide brightness control of DALI lights. Whether for your home or your office space, Shelly smart solutions allow for cost effective and highly flexible deployments of sensors and actuators.
Integrated bus power supply
The integrated bus power supply allows control of up to 5 downstream lights without the use of additional DALI power supply module. When additional sensor or wall switches need to be deployed the Shelly product line offers wired and wireless sensor for easy integration or retrofit solutions.
KNX Support
Shelly DALI Dimmer Gen3 integrates into KNX systems, offering a powerful and cost-effective solution for expanding your existing setup. By enabling wireless extension, it eliminates the need for wiring, reducing both installation time and costs. Whether you're upgrading a current system or adding new
capabilities, it provides a flexible and efficient way to enhance your KNX network.
Remote control
Enjoy the flexibility of remote control and monitoring of your smart home,
office space or store. Your cloud connected Shelly devices can be integrated into the Shelly Smart Home application. Control individual rooms, create smart scenes, share your devices with your family members.
Shelly DALI Dimmer Gen 3
Optimizing Commercial and Specialized Spaces
Shelly DALI Dimmer Gen3, integrated into a DALI network of lights, excels in environments where flexibility and precision are key. In open-space commercial settings, this advanced system allows for dynamic lighting adjustments to meet constantly evolving needs and requirements. Beyond open spaces, the Shelly DALI Dimmer Gen3 enhances the effectiveness of DALI systems in specialized environments like conference halls, retail spaces, hospital operating rooms, and more. With this dimmer, you can create the perfect lighting setup to make any space more functional and comfortable.
Ideal for Retrofit and New-Build Installations
The DALI network of lights, enhanced with Shelly DALI Dimmer Gen3, offers exceptional flexibility for both retrofit and new-build installations. In a new build, a DALI ecosystem eliminates the need for traditional lighting control circuits, streamlining the wiring process and enhancing overall efficiency. Retrofitting a DALI system into an existing setup is also possible and provides advanced lighting control, but it does not allow for the full benefits of DALI's more efficient and simplified wiring system, as existing control circuits are already established.
Cost-efficient
Shelly DALI Dimmer Gen3, paired with DALI luminaries, offers a powerful combination of cost-efficiency and flexibility, making it a smart investment for a wide range of applications. Whether you're upgrading existing systems or planning a new installation, DALI delivers exceptional value by providing precise lighting control that meets diverse needs while optimizing operational costs.
Gen3 Series features
On the Road to Matter
Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations.
*Dependent on the extent of Matter's functionalities support.
More Memory, More Power
The Gen3 series ensures the quality and reliability of our devices by using our own powerful Shelly chip. Boasting 8MB of memory, this dramatically improves device performance and efficiency.
Unified Control with Virtual Components
The Gen3 Series introduces “virtual components, transforming how you manage and control 3rd party devices. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.
On the Road to Matter
Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations.
*Dependent on the extent of Matter's functionalities support.
More Memory, More Power
The Gen3 series ensures the quality and reliability of our devices by using our own powerful Shelly chip. Boasting 8MB of memory, this dramatically improves device performance and efficiency.
Unified Control with Virtual Components
The Gen3 Series introduces “virtual components, transforming how you manage and control 3rd party devices. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system.
