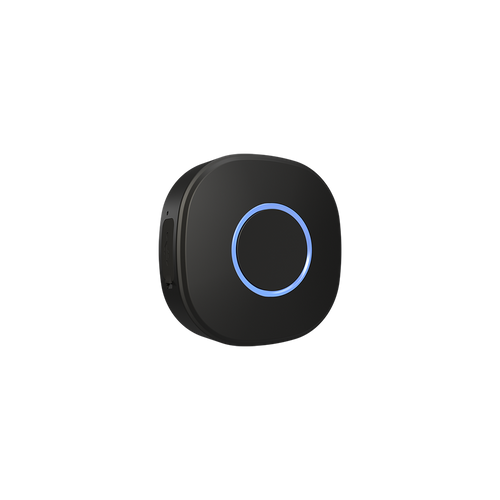

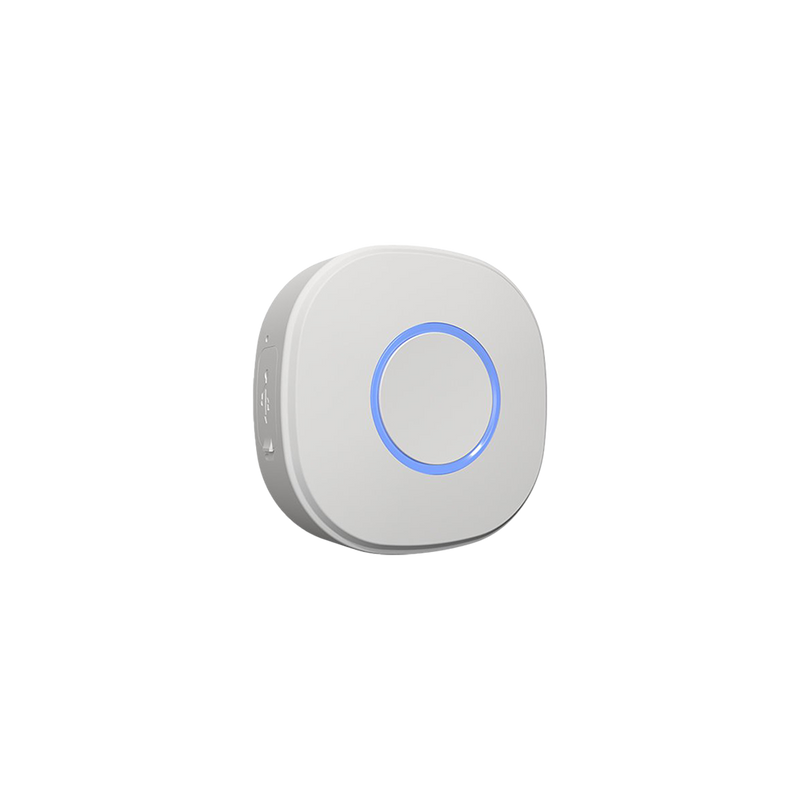

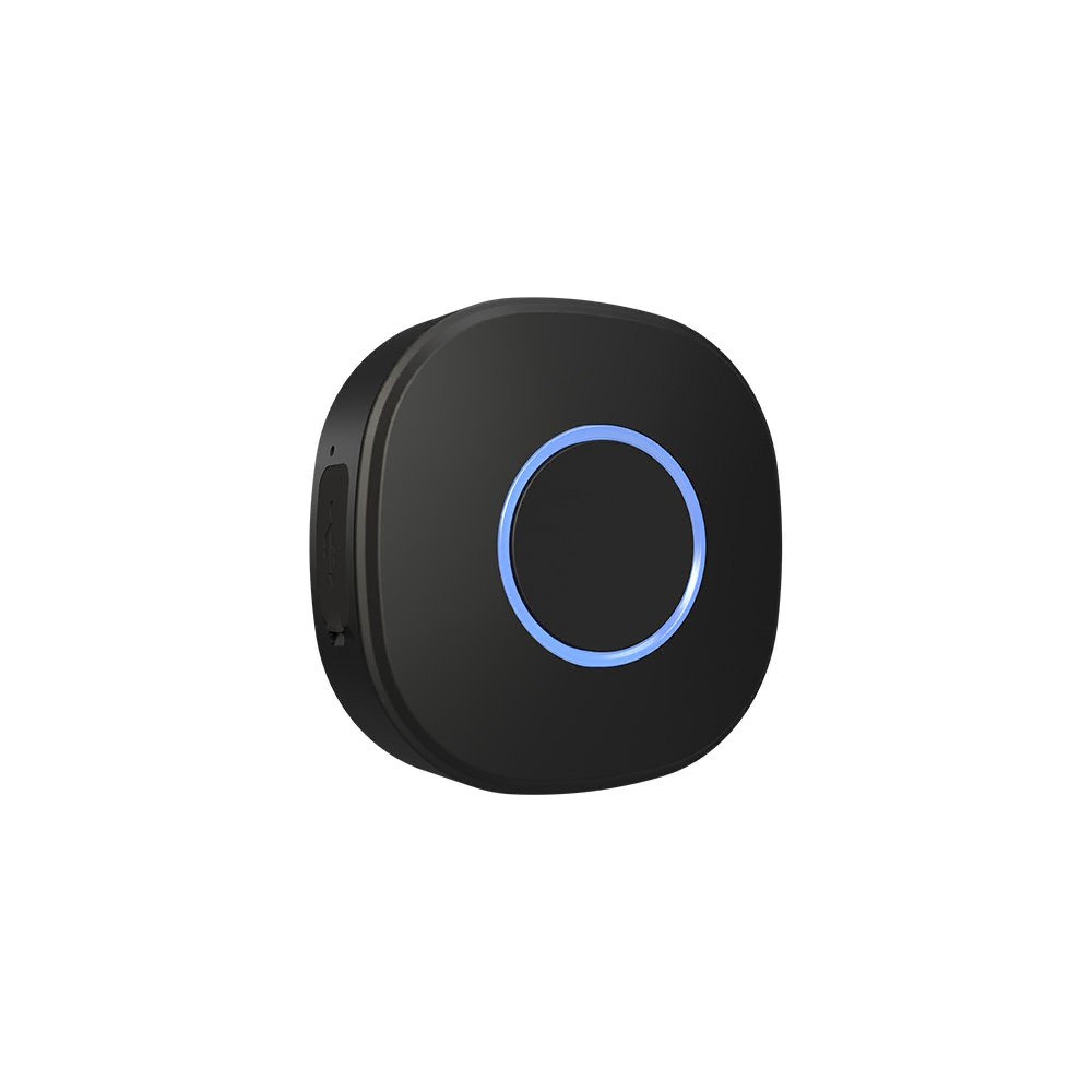

Shelly Button 1
Downloads
Manuals
Shelly Button 1 multilingual printed user and safety guide.pdf
Compliance
Shelly Button1 multilingual EU declaration of conformity.pdf
Shelly Button 1 white UK PSTI ACT Statement of compliance.pdf
Shelly Button 1 black UK PSTI ACT Statement of compliance.pdf

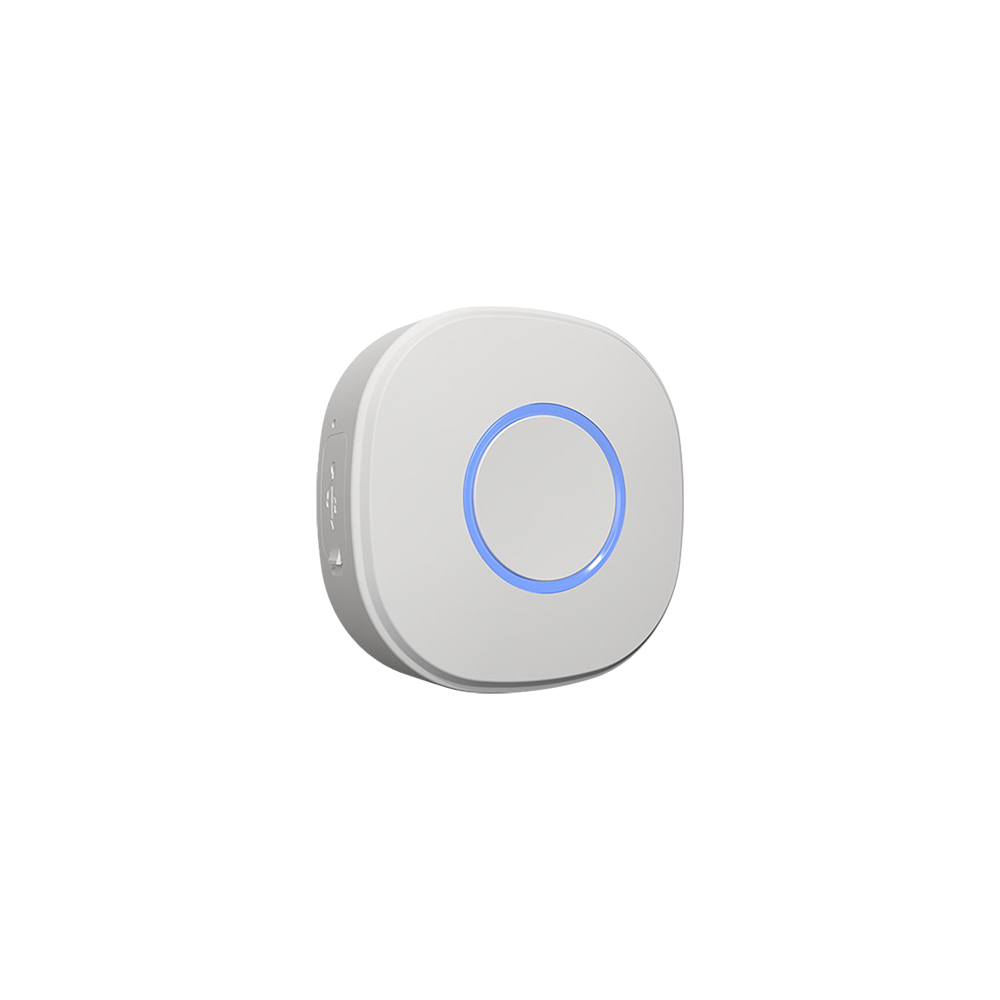

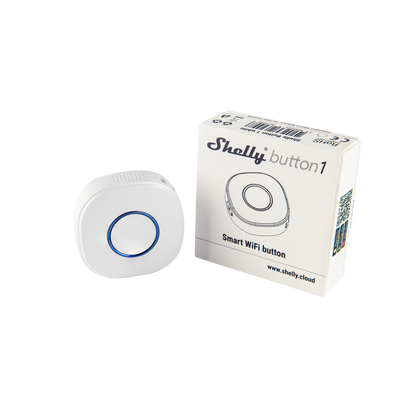

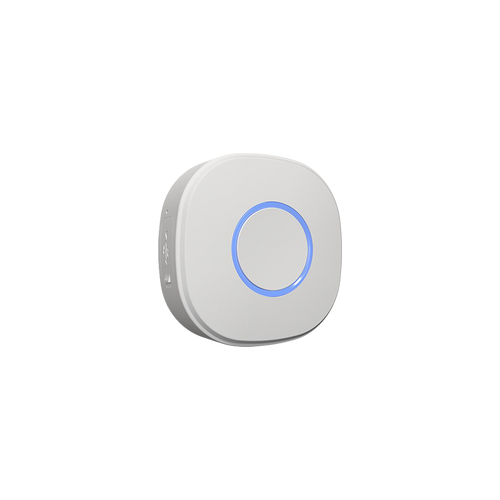

What is Shelly Button 1?
Control everything with just a click

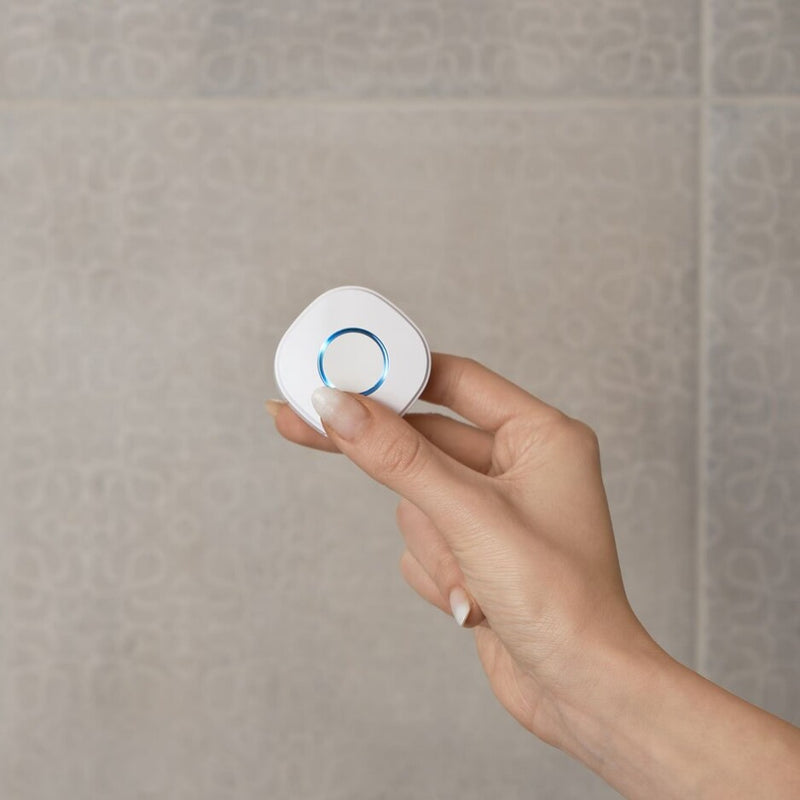

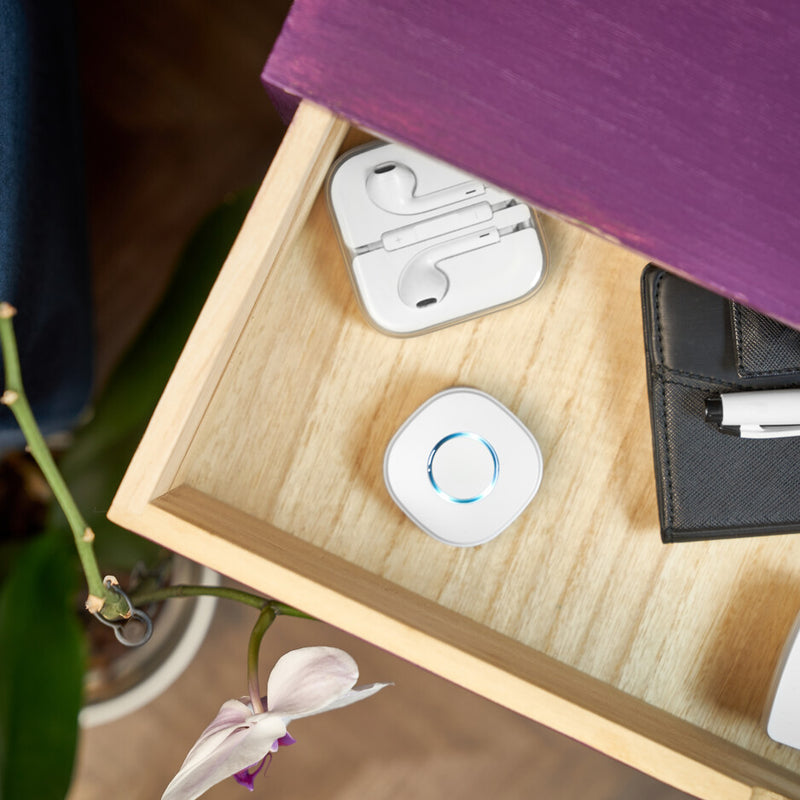

We developed Shelly Button to help you easily activate or deactivate any device or scene manually with just a click. Additionally, Shelly Button is so small and convenient, you can carry it with you absolutely everywhere.
Features
No HUB required.
Rechargeable batteries, allowing for more than 3000 actions per charge.
Response time of less than 2sec. on battery and 100 ms on USB power.
A different color response indication for all situations.
It can be integrated to work with all other Shelly devices.
Compatible with Android, iOS, Amazon Alexa, and home automation servers using MQTT, CoAP, and REST API.
Easily make your Arduino project live and usable in your automation project.
Specification
POWER | |
Battery life |
3000 actions per charge |
Power supply AC |
No |
Power supply DC |
Micro USB 5V |
SPECIAL FUNCTIONS | |
Complex scenes control |
Activate or deactivate synchronized actions of several Shelly devices |
Overload protection |
No |
Power measurement |
No |
Dimming |
Yes |
FEATURES | |
Operational temperature |
-40 to + 40 °C |
Local and remote control |
Yes |
Sunrise/Sunset |
No |
Weekly Schedule |
No |
UL Listed option |
No |
CONNECTIVITY | |
Wireless/WiFi Protocol |
802.11 b/g/n |
Radiofrequency |
2400 2484 MHz |
Range |
up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
DIMENSIONS | |
Size |
45mm x 45mm x 16mm |
