Shelly BLU Gateway

€17,73

€17,73

Incl. VAT Shipping calculated at checkout.

In stock
In stock
In stock
In stock

Shelly BLU Gateway

€17,73

€17,73

Incl. VAT Shipping calculated at checkout.

In stock

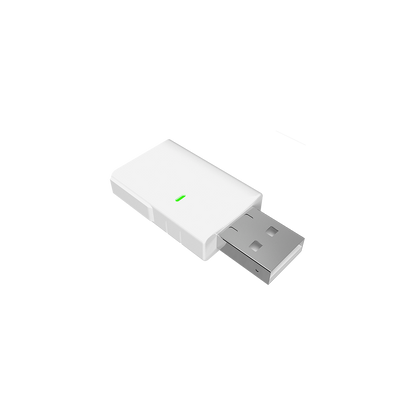

A dongle which works as a bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.

2

Get Protection Plus

€1,77

Extended Coverage: Beyond the standard warranty
Free Replacements
Accidental Damage Protection

Key Features

USB Type-A plug
Scripting for local control
Supports MQTT, WebSocket or any other compatible home automation system, like Home Assistant
Wi-Fi range extender
Can scan the Bluetooth network and find all other Bluetooth devices; can trigger actions on third-party devices using scripting

Shelly BLU Gateway

Device identification

Device name: ShellyBLU Gateway
Device model: GWF-KZ01
Firmware model ID: SNGW-BT01
Device SSID: ShellyBluGw-XXXXXXXXXXXX

Short description

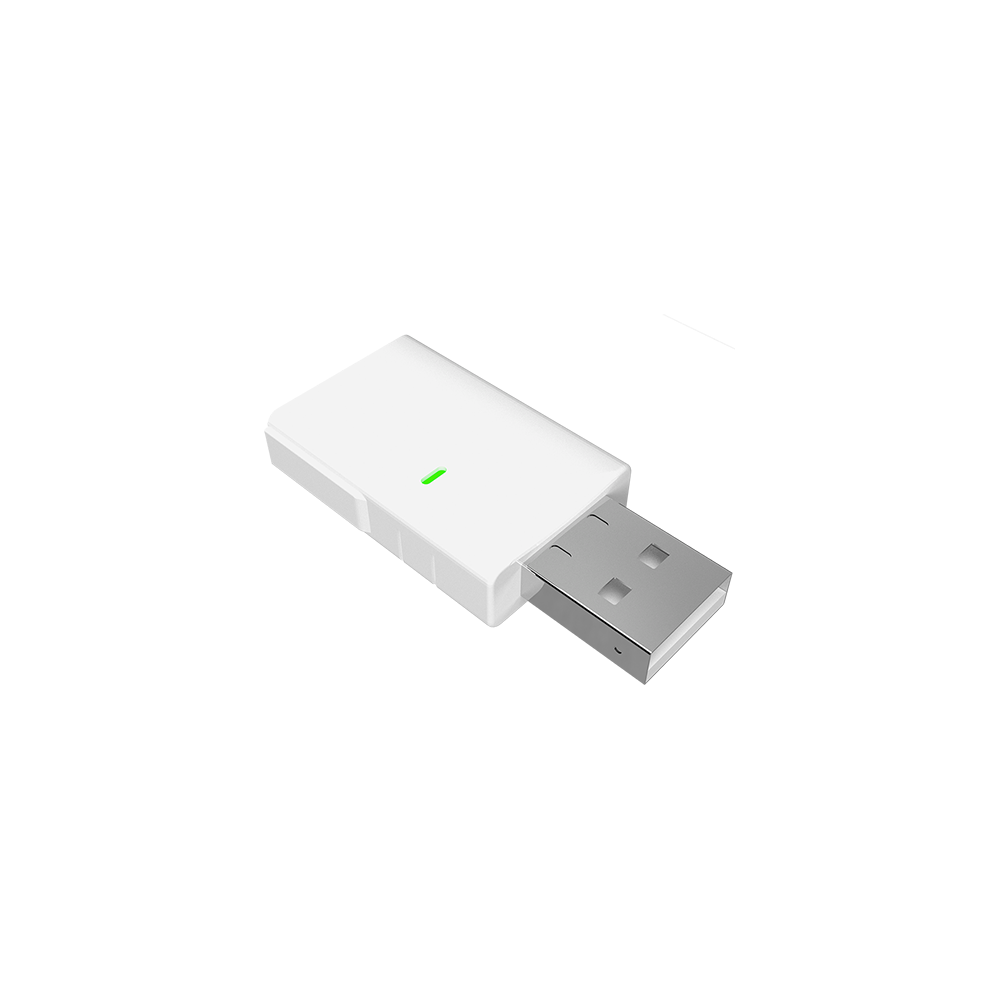

ShellyBLU Gateway (the Device) is a smart BLE to Wi-Fi gateway in a USB A dongle.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

USB Type-A Plug

Connectivity

Wi-Fi
Bluetooth

User interface

Inputs

One (Reset) button
- Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
- Press and hold for 10 seconds to factory reset the Device.

Outputs

LED indication
- Blue light indicator will be on if in AP mode.
- Red light indicator will be on if in STA mode and not connected to a Wi-Fi network.
- Yellow light indicator will be on if in STA mode and connected to a Wi-Fi network. Not connected to Shelly Cloud or Shelly Cloud disabled.
- Green light indicator will be on if in STA mode and connected to a Wi-Fi network and to the Shelly Cloud.
- The light indicator will be flashing Red/Blue if OTA update is in progress.

Specifications

Type	Value
Physical
Size (HxWxD):	45x20x8 mm / 1.77x0.79x0.21 in
Weight:	5 g / 0.18 oz
Material:	Plastic
Color:	White
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Electrical
Power supply:	5 VDC (from USB Type-A port)
Power consumption:	< 1 W
Radio
RF band:	2400 - 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 20 m / 66 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32
Flash:	4 MB
Firmware capabilities
Scripting:	Yes
MQTT:	Yes
CoAP:	No

Troubleshooting

...

Components and APIs

Compliance

Shelly BLU Gateway multilingual EU declaration of conformity.pdf

Shelly BLU Gateway UK PSTI ACT Statement of compliance.pdf

Printed user guide

Shelly BLU Gateway multilingual printed user and safety guide.pdf

Installation guides

Knowledge base

View full details

why shelly Blu gateway?

No Device Left Behind: The Bridge to Limitless Integration

Step into a new era of seamless connectivity with Shelly BLU Gateway. Typically, Bluetooth-enabled devices require a Bluetooth gateway like a Plus or Pro device. But if you want to use Shelly BLU devices with your Gen-1 Shelly relays (Shelly Dimmer2, Shelly RGBW2, etc), Shelly BLU Gateway is the solution! This compact dongle revolutionizes your setup without the need to wire extra relays – just plug it into an adapter. It bridges the gap between your Shelly BLU devices and the broader Shelly ecosystem, capturing Bluetooth signals and transferring them to the cloud or locally to other devices without Bluetooth capability.

Shelly BLU Gateway

Wi-Fi operated

Connect Shelly BLU Gateway to your Wi-Fi network! No HUB required!

Bluetooth

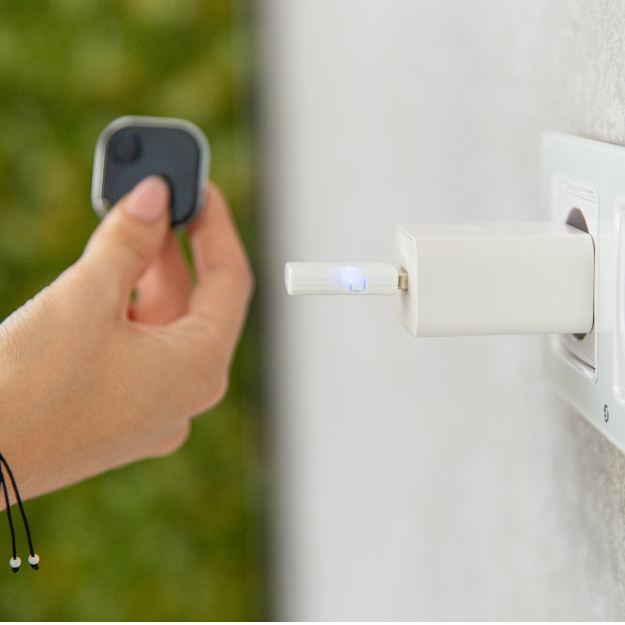

Quick inclusion via Bluetooth or use it as a Bluetooth gateway.

Wire-free

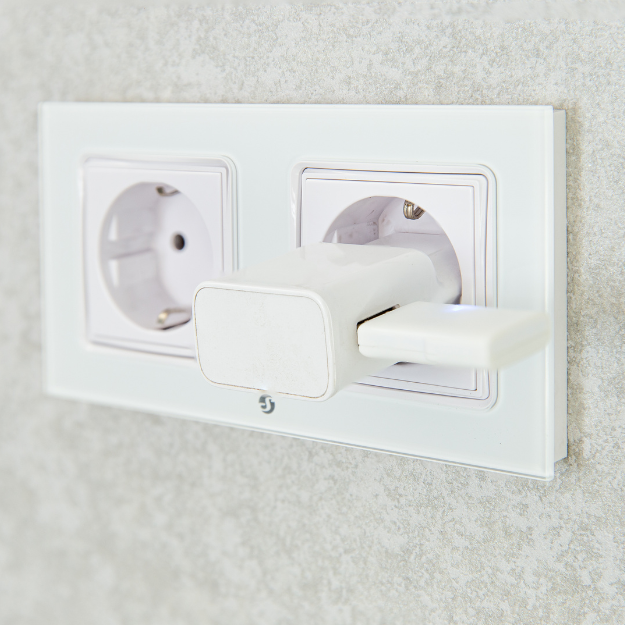

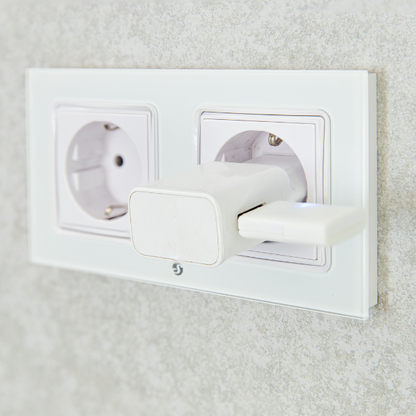

Simply plug it into a USB Type-A adapter and your socket.

Scripting

Send information locally and execute custom actions.

Solutions

Shelly BLU Gateway

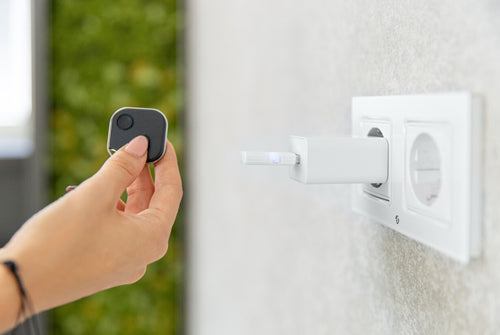

Unite your smart devices – cloud or locally

Unite your smart devices – cloud or locally

Shelly BLU Gateway is a small USB dongle acting as the gateway between Shelly BLU devices and the Shelly Cloud. If you want to use Shelly Gen-1 devices with Shelly BLU sensors, Shelly BLU Gateway can serve as a gateway to Shelly Cloud and thus to your existing Gen-1 devices. This way, you can eliminate the need for an upgrade to Shelly Plus or Pro devices. But Shelly BLU Gateway isn't just limited to cloud connections! The device allows for local control with immediate response through scripting.

Expand your smart ecosystem

Expand your smart ecosystem

When you need to ensure smooth data transfer from your Bluetooth-enabled devices to a wide array of home automation platforms, Shelly BLU Gateway provides a reliable, effective path for communication through MQTT protocol. Thus, you can expand your current smart ecosystem with branded devices and platforms of your choice.

Extend your existing Wi-Fi range

Extend your existing Wi-Fi range

In many homes, a single router is too weak to generate a stable signal reaching every room, resulting in dead zones and glitchy connections. Shelly BLU Gateway helps to broadcast your signal up to 30m indoors and 50m outdoors. Plug in one near the edge of your router's wireless range and pair it with the network, thus creating a seamless connection that will give you extended Wi-Fi range within your current setup.
