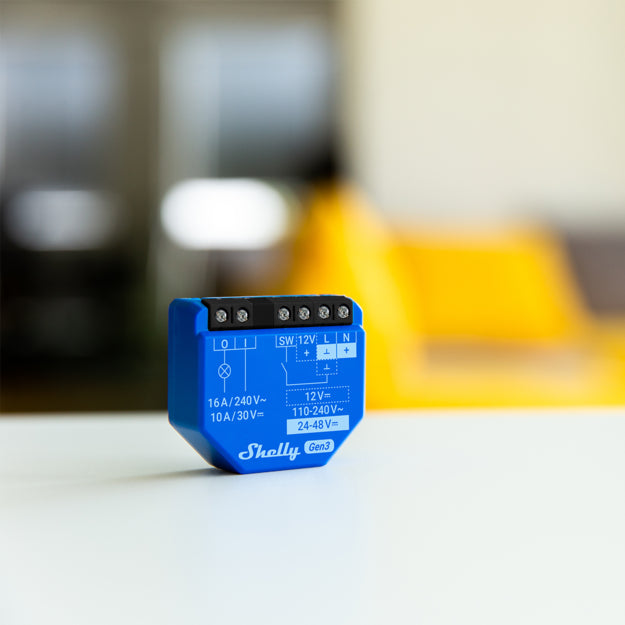

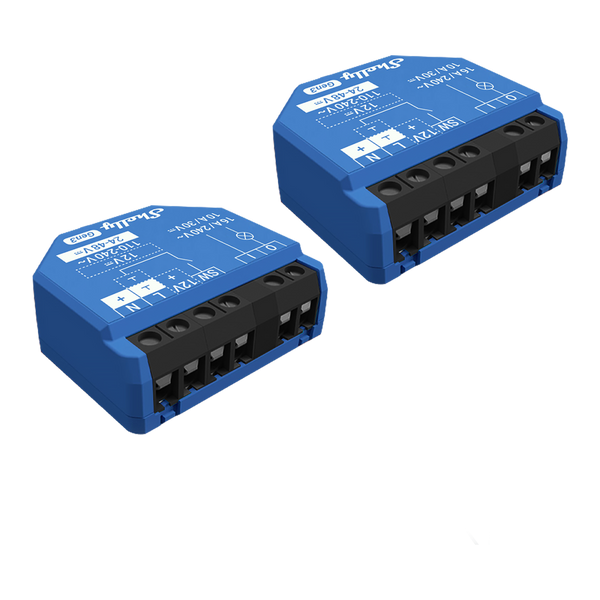

Shelly 1 Gen3 x2

Device identification

Device name: Shelly 1 Gen3
Device model: S3SW-001X16EU
Device SSID: Shelly1G3-XXXXXXXXXXXX
BLE Model ID: 0x1018

Short description

Shelly 1 Gen3 is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device also has improved processor and increased memory compared to its predecessor.

Shelly 1 Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

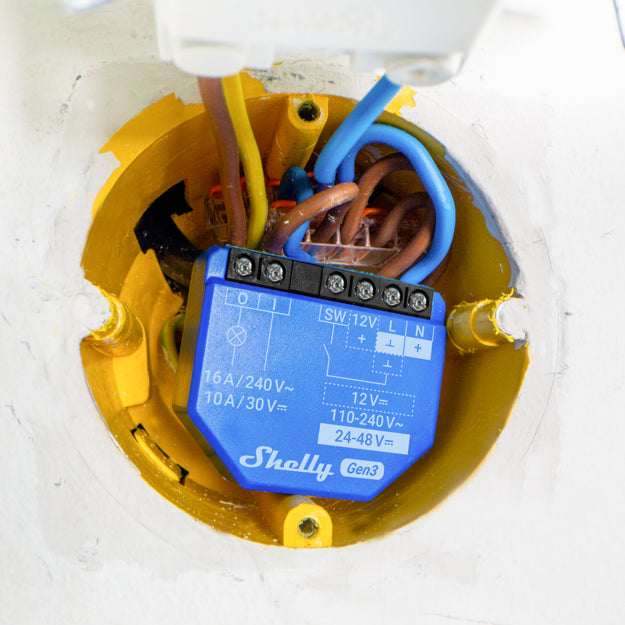

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly 1 Gen3 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main features

Wi-Fi Connectivity: The device can connect to your home Wi-Fi network, allowing you to remotely monitor humidity and temperature data through a smartphone app or other compatible devices.
Integration with Smart Home Platforms: You can integrate the Shelly 1 Gen3 with popular smart home platforms, including Google, Alexa, and Samsung SmartThings. This enables voice control and automation capabilities through these platforms.
Local and Cloud Control: Can function independently in a local Wi-Fi network and can also be operated through cloud home automation services.
Bluetooth Connectivity: Bluetooth and BLE gateway are available for inclusion purposes, which may be useful during the setup process.
User-Friendly Interface: The device provides a user-friendly interface with a reset button for manual interactions.
Improved Processor and Memory: Upgraded with an improved processor and increased memory for enhanced performance.
Embedded Web Interface: Features an embedded web interface for monitoring, control, and adjustment of settings.
Wireless Connectivity: The device supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 protocols with specified indoor and outdoor range capabilities.
Dry Contact: Allows switching on and off of lower voltage devices.
BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.
Wi-Fi Range extender for IoT devices: A Wi-Fi extender is employed to expand the reach of your Wi-Fi network by receiving your current Wi-Fi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.
Scripting: https://shelly-api-docs.shelly.cloud/gen2/Scripts/ShellyScriptLanguageFeatures/
Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP
Schedules: Allows scheduling of complex operations to be executed in predefined time window. Users can specify time windows based on date, time of day, weekdays, hours, minutes and seconds.
Virtual Components: https://shelly-api-docs.shelly.cloud/gen2/DynamicComponents/Virtual/

Use cases

Remote Appliance Control: Turn on or off electric appliances remotely using your mobile phone, tablet, PC, or home automation system.
Internet-Connected Convenience: Access аnd control devices from anywhere with internet connectivity, as long as the Shelly 1 Gen3 is connected to a Wi-Fi router.
Home Automation: Shelly 1 Gen3 enables automatic control of power appliances for more relaxing and enjoyable experience.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Integrations

Amazon Alexa supported capabilities

Yes

Google Smart Home supported traits

Yes

Samsung SmartThings supported capabilities

Yes

Simplified internal schematics

Device electrical interfaces

Inputs

1 switch/button input on screw terminal
1 potential-free contacts relay input on screw terminal
2 power supply inputs on screw terminals: N and L

Outputs

1 potential-free contacts relay output on screw terminal

Connectivity

Wi-Fi
Ethernet
Bluetooth

Safety function

Overheating protection

Supported load types

Resistive (incandescent bulbs, heating appliances)
Capacitive (capacitor banks, electronic equipment, motor starting capacitors)
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners, washing machines, tumble dryers)

User interface

Inputs

One (Control) button
- Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
- Press and hold for 10 seconds to factory reset the Device.

Outputs

LED (monocolor) indication
- AP (Access Point) enabled and Wi-Fi disabled:
  1 second ON / 1 second OFF
- Wi-Fi enabled, but not connected to a Wi-Fi network:
  1 second ON / 3 seconds OFF
- Connected to a Wi-Fi network:
  Constantly ON
- Cloud is enabled, but not connected:
  1 second ON /5 seconds OFF
- Connected to Shelly Cloud:
  Constantly ON
- OTA (Over the Air Update):
  ½ sec ON / ½ second OFF
- Button pressed and held for 5 seconds:
  ½ second ON / ½ second OFF
- Button presses and held for 10 seconds:
  ¼ second ON / ¼ second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Quantity	Value
Physical

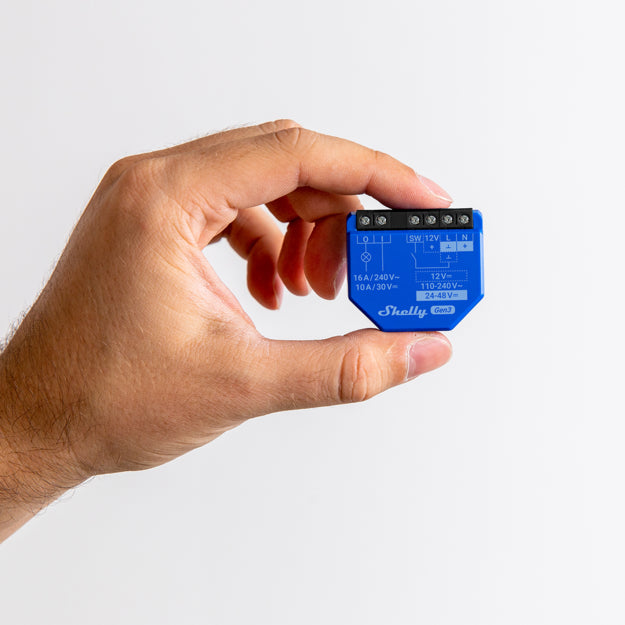

Size (HxWxD):	37x42x16 / 1.46x1.65x0.63
Weight:	26 g / 0.92 oz
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall console
Shell material:	Plastic
Shell color:	Blue
Terminal Color:	Black
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	110-240 V~ 24-48 V⎓ 12 V⎓
Power consumption:	< 1.2 W
External protection:	Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)
Output circuits ratings
Max. switching voltage:	240 V~ 30 V⎓
Max. switching current:	16 A/240 V~ 10 A/30 V⎓
Sensors, meters
Internal-temperature sensor:	Yes
Radio
Wi-Fi
Protocol:	802.11 b/g/n
RF band:	2401 - 2483 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	4.2 with BLE
RF band:	2400 - 2483.5 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP-Shelly-C38F
Flash:	8MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes

Basic wiring diagrams

110-240 V~ power supply

24-48 V⎓ power supply

12 V⎓ stabilized power supply

Legend

Terminals		Wires
I	Load circuit input terminal	L	Live wire (110-240 V~)
O	Load circuit output terminal	N	Neutral wire
SW	Switch (controlling O) input terminal	+	12/24-48V ⎓ positive wire
+12V	12 V⎓ positive terminal	GND	12/24-48V⎓ ground wire
L	Live terminal (110-240 V~)
N	Neutral terminal
+	24-48 V⎓ positive terminal
Ʇ	12/24-48V⎓ ground terminal
