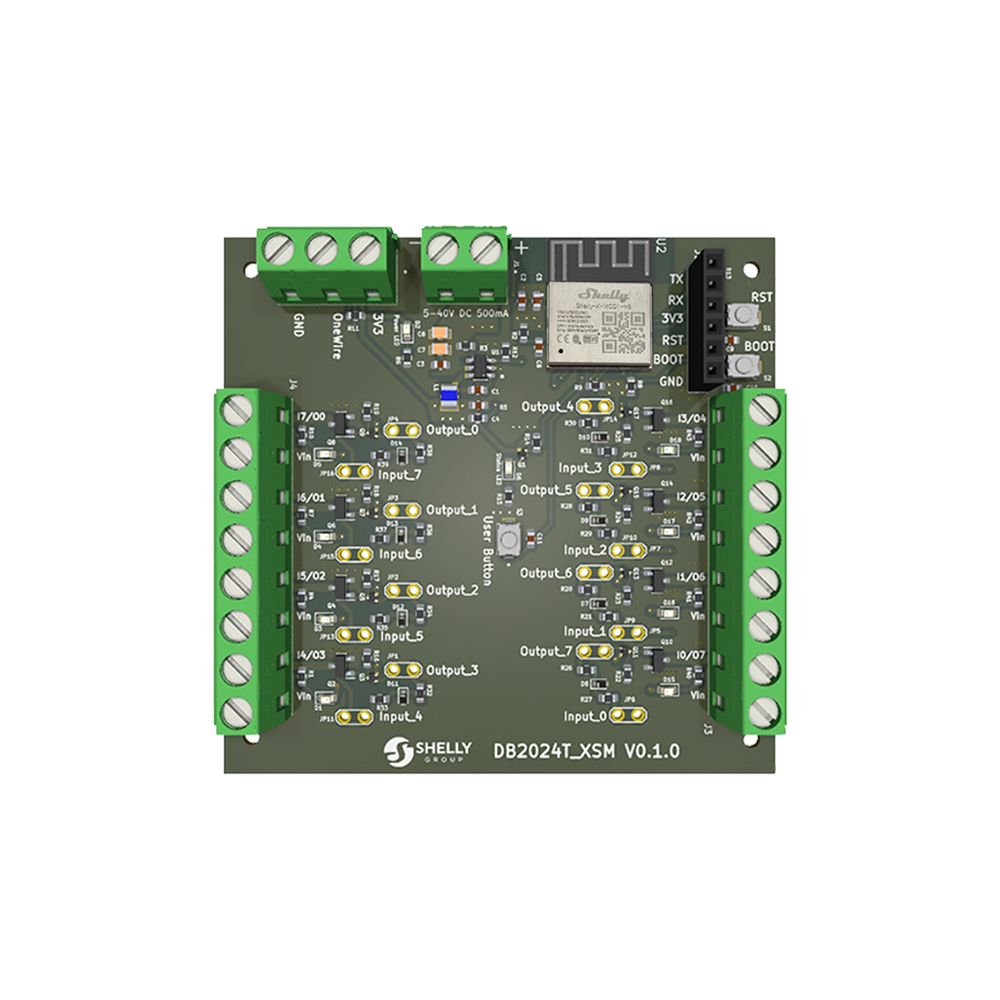

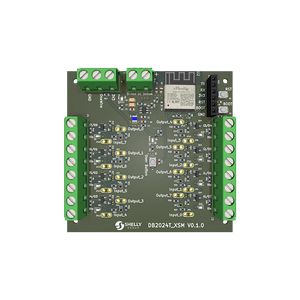

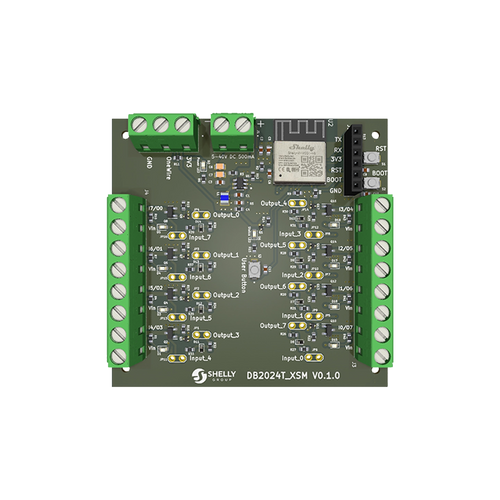

Development Board Shelly X SM Terminals

Shelly-X-MOD1-H8 reference design. Evaluate Shelly ecosystem and Shelly X SM embedded modules family features. On-board terminal connectors for easy integration of external relays, switchers and buttons. Temperature and humidity sensor support. Wi-Fi and Bluetooth connectivity. Control  lighting, heating, or any other connected electrical appliance which requires multichannel switching capability, or high nominal power. Total device maximum - defined by the external relays.

Variant: T
Key Features
  • Shelly-X-MOD1-H8 - small-sized 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 module Built around ESP-Shelly-C38F SoC, RISC-V single-core microprocessor 8 MB flash in chip package
  • Supports up to 8 input/switcher channels
  • 2 x LED indicators
  • Scripting
  • Supports schedules, scenes, and local actions
  • No HUB required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
  • Can act as Wi-Fi range extender & BLE gateway.
View full details
WHY DB2024T_XSM?

Create your smart connected devices, effortlessly

A simple and convenient way to evaluate the features of Shelly X SM family of embedded modules and the features of Shelly IoT ecosystem. Fully provisioned, fully functional with Shelly cloud,  application and ecosystem. Supported by Shelly Smart Control App as a third party OEM device. Create your multi-channel switching system with flexible configuration.

Learn more
DB2024T_XSM
Wi-Fi Operated
Connect Shelly Plus 2PM to your Wi-Fi network. No HUB required!
Configuration
Select the device name, and apply custom configuration to meet the requirements of your application via ShellyX dashboard portal.
Custom schedules​
Set custom schedules based on your daily agenda or automatically follow the sunrise/sunset and control your appliances accordingly.
Smart scenes
Set custom scenes by combining Shelly Plus 2PM with your other Shelly devices.
URL actions ​​
Let DB2024T_XSM directly control or get controlled by other smart devices.
