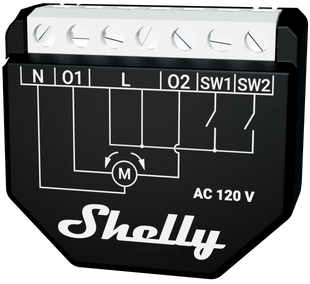

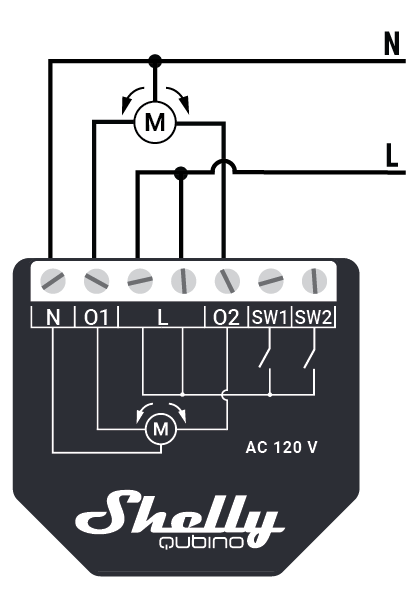

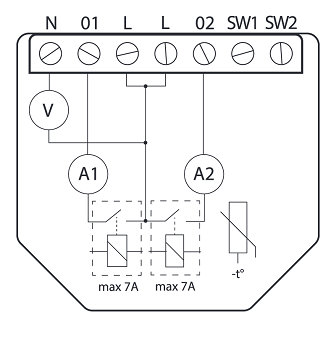

Controls position of blinds, rollers, shades, venetian blinds, etc.

Switching output O1 On, motor will start moving blind Up, switching output O2 On, motor will start moving blind Down. The Device measures energy consumption of the connected motor. When the blind is stopped by end-switch of the motor (Up or Down extreme position), the Device will recognize this because the measured power consumption will drop to zero or to very low value. When the blind is stopped by end-switch of the motor (Up or Down extreme position), or by the Device that determines the extreme position (Up or Down) has been reached based on time, the output O1 or O2 must switch Off, even if the switch connected to SW1 or SW2 is active. Movement time in any direction is limited to max. 2 X Up/Down movement time. Example. If movement time for Up is 10s, the motor can’t be supplied for more than 20s!

The Device must never drive the two phases of connected motor at the same time. That is outputs O1 and O2 must never be active at the same time, even when SW1 and SW2 inputs are active at the same time or Z-Wave command is received that Q1 and Q2 must be active at the same time.
It is recommended to use only blind motors with electronic or mechanical limit switches. The motor limit switches must be set correctly before connecting the Device to the motor.

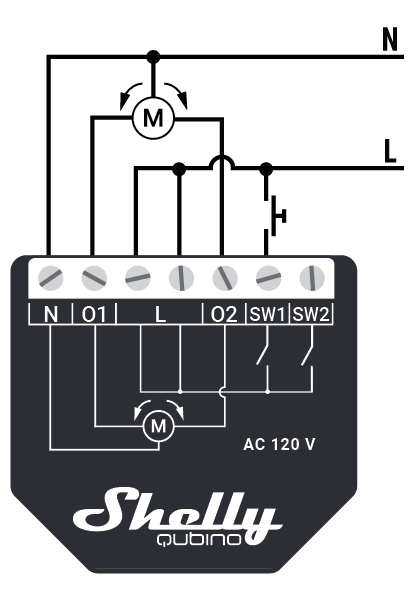

Shutter - Switch/push-button connected to input terminal SW1 and SW2

Supported Switch/push-button to input terminals SW1 and SW2

· switch with up, down and neutral position

· push-button with up and down poles and with normal position in neutral (no signal)

By default inputs are defined as push-buttons. SW1 and SW2 must defined both as switches or both as push-buttons. This can be changed by Parameter No. 5.

Switch/push-button directions connected to:

• SW1 is used for Up (Open) command, controlling output O1 (Up)

• SW2 is used for Down (Close) command, controlling output O2 (Down)

• In case both SW1 and SW2 are active at same time, outputs O1 and O2 are switched both OFF.

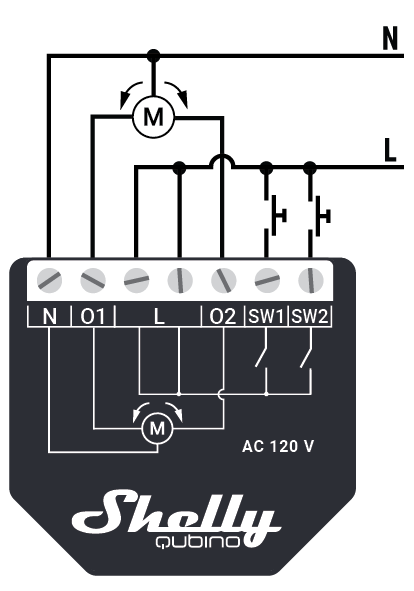

Push-button SW1 or SW2 - Single press

Single press on push-button is a press that lasts less than 0,5 seconds. Single press will trigger blind moving in the direction chosen. For the resulting actions see the table at the end of this table.
If blind is moving, any press (of any push-button) will stop the movement.

Push-button SW1 or SW2 - press and hold (long press)

Press and hold on push-button is a press that lasts longer than 0,5 seconds. Press and hold will trigger moving and tilting the blind in the direction chosen but as soon as the push-button is released, the movement will stop. The main purpose of this feature is to allow for precise control tilting of venetian blind with push-button. For the resulting actions see the table at the end of this table.

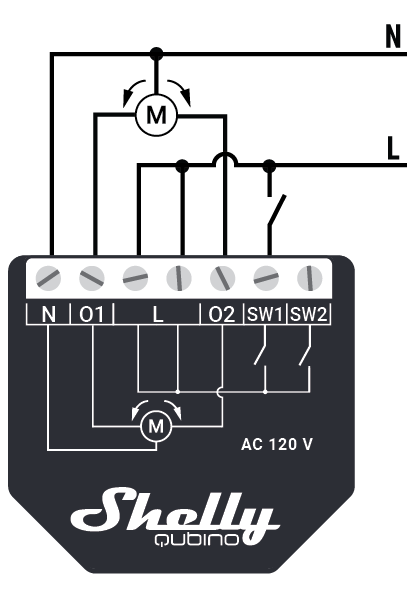

Switch SW1 or SW2

When switch is turned ON, the blind start moving until the switch is turned OFF or stopped by motor end-switch (or time limit). In case both SW1 and SW2 are active at same time, outputs O1 and O2 are switched OFF.

Push-button SW1 or SW2 - for venetian blinds

Parameter No. 71 set to 1 – Venetian blind (with positioning) and Parameter No. 5 set to 0 - momentary switch

General rules:

• Single press (< 0,5 seconds) initiates venetian blind movement

• Press and hold (> 0,5 seconds) initiates venetian blind slats movement

Pressing the push-button for less than 0,5 second (single press) initiates movement.
If the venetian blind is moving, any press (of any push-button) will stop the movement.

Keeping the push-button, pressed for more than 0,5 second (press and hold) initiates slats rotation (0 to 100% or vice versa), until the push-button is released or rotation end position is reached. The rotation time is defined by Parameter No. 72

Switch SW1 or SW2 - for venetian blinds

For venetian blinds push-buttons are recommended!
Parameter No. 71 set to 1 – Venetian blind (with positioning) and Parameter No. 5 set to 1 - toggle switch (contact closed - ON / contact opened - OFF)

When toggle switch is pressed initiates movement, until the toggle switch is pressed again to be in opposite position (change state) or when end switch is reached.

Slats positioning

To reach maximum slats positioning precision when the blind is stopped by push-button, the Gateway or when controlled by the Gateway will position settings the slats in below described conditions perform additional movement.
When the slats are set at any intermediate position and receive the command for different position the slats always perform movement to 100% first and then back to set position.
When blind is moving Down the slats are at 0% position. When the limit switch is reached or the blind is stopped by push-button or by the Gateway the slats perform rotation to 100% an then move to previous position (before they start moving).

When blind is moving Up the slats are at 100% position. When blind is stopped by push-button or by the Gateway the slats move to previous position (before they start moving).

Overheat Protection

Device has internal Overheat protection. If the temperature exceeds predefined values 80°C for more than 5s, the Device will:

• switch off its own output

• send the Notification Report to the gateway (Overheat detected)

• the LED lights react as specified above (check LED blinking mode for Overheat detected)

Additional description above under chapter Notification for Overheat detected.

Overcurrent Protection

Device has internal Overcurrent protection. If the current exceeds 10A+10% (Max switching current +10%) for more than 5s, the Device will:

• switch off its own output

• sends the Notification Report to the gateway (Overcurrent detected)

• the LED lights react as specified above (check LED blinking mode for Overcurrent detected)

Additional description above under chapter Notification for Over-current detected.

Overvoltage Protection

Device has internal Overvoltage protection. This is valid for standard power supply voltage 230 V AC. If the voltage exceeds 240 V AC+15% (278 V AC) for more than 5s, the Device will:

• switch off its own output

• sends the Notification Report to the Gateway (Overvoltage detected)

• the LED lights react as specified above (check LED blinking mode for Overvoltage detected)

Additional description above under chapter Notification for Over-voltage detected.

General rules

• Switching between Normal and Settings mode is done by press and hold the S button.

• Solid LED means that you are in the Settings mode (this is not valid for Plugs). Once in settings mode, switch to normal mode goes automatically after 10s.

• If the LED is not in Alarm mode, it will turn off after a timeout of 30min. Pressing the S button or power cycling the Device will wake the LED for 30min.

Normal mode LED status: Normal mode is defined by stable device function that can remain for an infinite time.

LED type: RGB dimmable

Normal mode

Removed/Excluded not calibrated

The LED will be blinking blue and yellow in Mode 1 for 30min after every power cycle and 10min after S button pressed.

Added/Included not calibrated

The LED will be blinking green and yellow in Mode 1 for 10min after every power cycle and 10min after S button pressed.

Removed/Excluded & calibrated

The LED will be blinking blue and green in Mode 1 for 30min after every power cycle and 10min after S button pressed.

Added/Included & calibrated

The LED will be blinking green in Mode 1 for 30min after every power cycle and 10min after S button pressed.

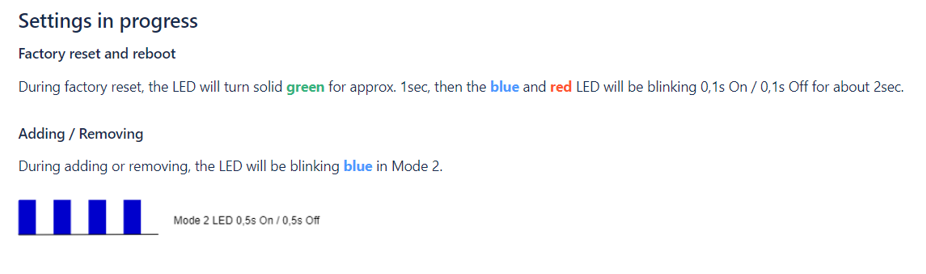

Settings in progress

Factory reset and reboot

During factory reset, the LED will turn solid green for approx. 1sec, then the blue and red LED will be blinking 0,1s On / 0,1s Off for about 2sec.

Adding / Removing

During adding or removing, the LED will be blinking blue in Mode 2.

OTA firmware updating

During the OTA update, the LED will be blinking blue and red in Mode 2.

Checking power supply 230 V AC frequency or 24 V DC voltage

During checking the power supply, the LED will be blinking blue and red in Mode 5.

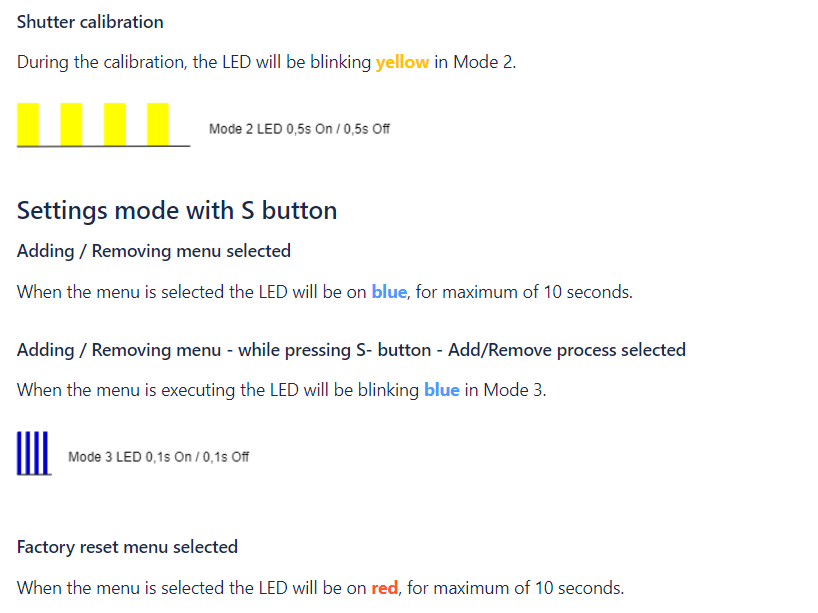

Shutter calibration

During the calibration, the LED will be blinking yellow in Mode 2.

Settings mode with S button

Adding / Removing menu selected

When the menu is selected the LED will be on blue, for maximum of 10 seconds.

Adding / Removing menu - while pressing S- button - Add/Remove process selected

When the menu is executing the LED will be blinking blue in Mode 3.

Factory reset menu selected

When the menu is selected the LED will be on red, for maximum of 10 seconds.

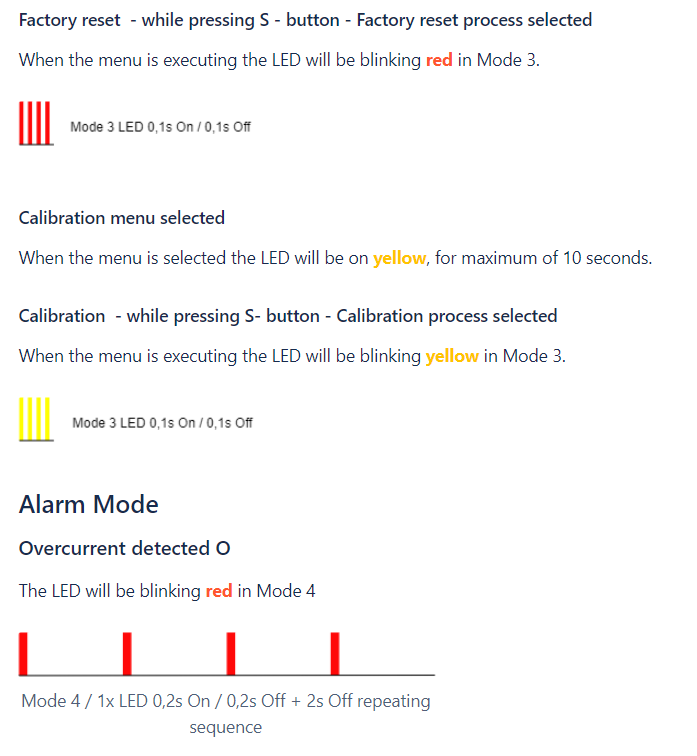

Factory reset - while pressing S - button - Factory reset process selected

When the menu is executing the LED will be blinking red in Mode 3.

Calibration menu selected

When the menu is selected the LED will be on yellow, for maximum of 10 seconds.

Calibration - while pressing S- button - Calibration process selected

When the menu is executing the LED will be blinking yellow in Mode 3.

Alarm Mode

Overcurrent detected O

The LED will be blinking red in Mode 4

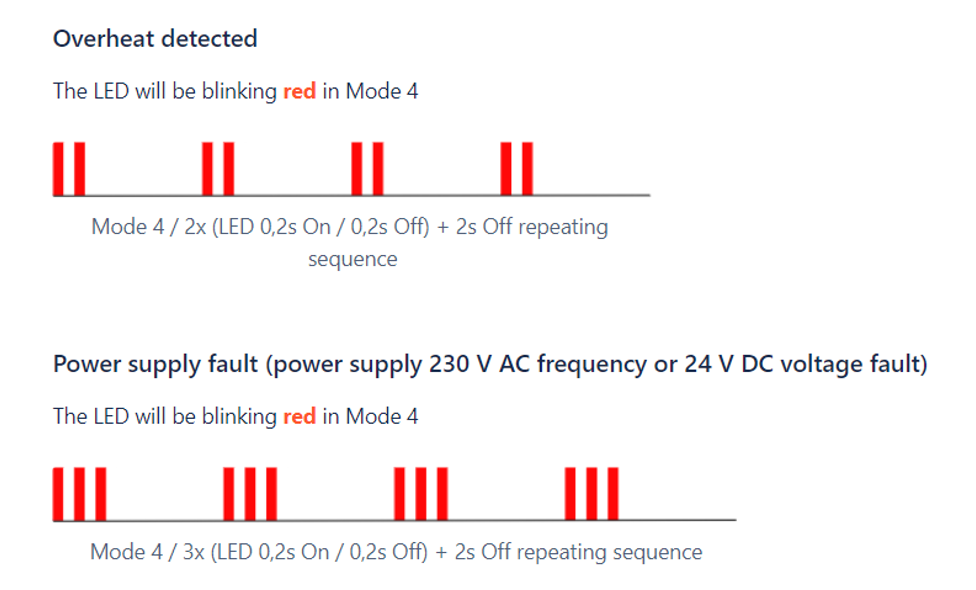

Overheat detected

The LED will be blinking red in Mode 4

Power supply fault (power supply 230 V AC frequency or 24 V DC voltage fault)

The LED will be blinking red in Mode 4

Overcurrent detected O1

The LED will be blinking red in Mode 4

Overcurrent detected O2

The LED will be blinking red in Mode 4

Barrier safety beam obstacle detected

The LED will be blinking red in Mode 4

Overvoltage detected

The LED will be blinking red in Mode 4

Adding the Device to a Z-Wave® network (inclusion)

SmartStart adding (inclusion)

SmartStart enabled products can be added into a Z-Wave® network by scanning the Z-Wave® QR Code present on the Device with a gateway providing SmartStart inclusion. No further action is required, and the SmartStart device will be added automatically within 10 minutes of being switched on in the network vicinity.

1. With the gateway application scan the QR code on the Device label and add the Security 2 (S2) Device Specific Key (DSK) to the provisioning list in the gateway.

2. Connect the Device to a power supply.

3. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave® network.

4. Adding will be initiated automatically within a few seconds after connecting the Device to a power supply, and the Device will be added to a Z-Wave® network automatically.

5. The blue LED will be blinking in Mode 2 during the adding process.

6. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.

Adding (inclusion) with the S button

1. Connect the Device to a power supply.

2. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave® network.

3. Enable add/remove mode on the gateway.

4. To enter the Setting mode, press and hold the S button on the Device until the LED turns solid blue.

5. Release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.

6. The blue LED will be blinking in Mode 2 during the adding process.

7. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.

Adding (inclusion) with a switch/push-button

1. Connect the Device to a power supply.

2. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave® network.

3. Enable add/remove mode on the gateway.

4. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2, etc.) 3 times within 3 seconds (this procedure puts the Device in Learn mode*). The Device must receive on/off signal 3 times, which means pressing the momentary switch 3 times, or toggling the switch on and off 3 times.

5. The blue LED will be blinking in Mode 2 during the adding process.

6. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.

*Learn mode - a state that allows the Device to receive network information from the gateway.

Removing the Device from a Z-Wave® network (exclusion)

Removing (exclusion) with the S button

1. Connect the Device to a power supply.

2. Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave® network.

3. Enable add/remove mode on the gateway.

4. To enter the Setting mode, press and hold the S button on the Device until the LED turns solid blue.

5. Release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.

6. The blue LED will be blinking in Mode 2 during the removing process.

7. The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave® network.

Removing (exclusion) with a switch/push-button

1. Connect the Device to a power supply.

2. Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave® network.

3. Enable add/remove mode on the gateway.

4. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2,…) 3 times within 3 seconds (this procedure puts the Device in Learn mode). The Device must receive on/off signal 3 times, which means pressing the momentary switch 3 times, or toggling the switch on and off 3 times.

5. The blue LED will be blinking in Mode 2 during the removing process.

6. The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave® network.

Factory reset

Factory reset general

After Factory reset, all custom parameters and stored values (kWh, associations, routings, etc.) will return to their default state. HOME ID and NODE ID assigned to the Device will be deleted. Use this reset procedure only when the gateway is missing or otherwise inoperable.

Factory reset with the S button

1. To enter the Setting mode, press and hold the S button on the Device until the LED turns solid blue.

2. Press the S button multiple times until the LED turns solid red.

3. Press and hold (> 2s) S button on the Device until the red LED starts blinking in Mode 3. Releasing the S button will start the factory reset.

4. During factory reset, the LED will turn solid green for about 1s, then the blue and red LED will start blinking in Mode 3 for approx. 2s.

5. The blue LED will be blinking in Mode 1 if the Factory reset is successful.

Factory reset with a switch/push-button

1. Connect the Device to a power supply.

2. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2,…) 5 times within 3 seconds. The Device must receive on/off signal 5 times, which means pressing the push-button 5 times, or toggling the switch on and off 5 times.

3. During factory reset, the LED will turn solid green for about 1s, then the blue and red LED will start blinking in Mode 3 for approx. 2s.

4. The blue LED will be blinking in Mode 1 if the Factory reset is successful.

Remote factory reset with parameter with a gateway

Factory reset can be done remotely with the settings in Parameter No. 120.

The Device supports the latest Security 2 (S2) feature. S2 is handled by the strong AES 128 Encryption protocol, which means that the S2 makes Z-Wave® the most secure IoT (Internet of Things) security platform out there. To fully utilize the product and its Security 2 feature, a Security 2-enabled Z-Wave® gateway must be used.

Authenticated Control

• Out-Of-Band DSK for adding (inclusion)

• May be used by most implementations

The Device also supports Security 2 Authenticated, Unauthenticated, and Unsecure adding (inclusion).

The first five digits of the key are highlighted or underlined to help the user identify the PIN Code part of the DSK text. The DSK is additionally represented with a QR Code as shown on the image.

Z-Wave® DSK label and QR code (example)

A joining node requesting to join the S2 Access Control Class or the S2 Authenticated Class will obfuscate its Public Key by setting the bytes 1..2 to zeros (0x00) before transferring its key via RF.

The DSK may be used for out-of-band (OOB) authentication.

• The including gateway may use a QR code scanning device to read the entire DSK of the joining device and match it with the obfuscated public key received via RF from the joining device.

Parameter No. 5 - SW1 & SW2 Switch type

This parameter defines how the Device should treat the switch (which type) connected to the SW1 and SW2 terminals.

Value size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - momentary switch (push button),

• 1 - toggle switch (contact closed - ON / contact opened - OFF),

• 2 - toggle switch (device changes status when switch changes status)

Parameter No. 6 - Inputs SW1 & SW2 Swap

This parameter allows to swap the operation of switches connected to inputs SW1 and SW2 without changing the wiring.

Value size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - default (SW1 - O1, SW2 - O2),

• 1 - swapped (SW1 - O2, SW2 - O1)

Parameter No. 16 - Outputs O1 & O2 swap (Only used for Wave Shutter and other Devices with 2 Outputs (O1 and O2) like Wave 2PM,…)

This parameter allows to swap the operation of outputs O1 and O2 without changing the wiring (in case of an invalid motor connection) to ensure proper operation.

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - default (O1 - OPEN, O2 - CLOSE),

• 1 - reversed (O1 - CLOSE, O2 - OPEN)

Parameter No. 36 - O (O1) Power report on change - percentage

This parameter determines the minimum change in consumed power that will result in sending a new report to the gateway.

Values size: 1 Byte

Default value: 50

Values & descriptions:

• 0 - reports are disabled

• 1-100 (1-100%) - change in power

Parameter No. 39 - Minimum time between reports (O) O1

This parameter determines the minimum time that must elapse before a new power report on O (O1) is sent to the gateway.

Values size: 1 Byte

Default value: 30

Values & descriptions:

• 0 - reports are disabled

• 1-120 (1-120s) - report interval

Parameter No. 71 - Shutter operating modes

Choose between the two operating modes. In shutter mode, the user can select up/down/stop. In venetian mode, an additional widget/endpoint is displayed in the UI interface, which can be used to control the tilt position of the slats.

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0 – Shutter (with positioning)

• 1 – Venetian blind (with positioning)

• 2 – Manual time set (No end switches)

Parameter No. 72 - Venetian blind - time of the full turn of the slats

For venetian blinds (Parameter No. 71 set to 1) the parameter determines the time of full turn cycle of the slats.

Values size: 2 Byte

Default value: 150

Values & descriptions:

• 0-65535 (0-655.35s, every 0.01s) - time of turn

Parameter No. 73 - Set slats back to the previous position

For venetian blinds (Parameter No. 71 set to 1) the parameter determines slats positioning in various situations.

Values size: 1 Byte

Default value: 1

Values & descriptions:

• 0 – Disable

• 1 – Slats return to the previously set position in case of the gateway operation, momentary switch operation, when a limit switch is reached, or after receiving the Switch Multilevel Stop control frame.

Parameter No. 74 - Shutter Time of Up movement

This parameter determines the time it takes for the blind to reach the top. For modes with positioning, the value is set automatically during calibration, otherwise, it must be set manually.

Values size: 2 Byte

Default value: 6000

Values & descriptions:

• 1-65535 (0.01-655.35s, every 0.01s) - movement time

Parameter No. 75 - Shutter Time of Down movement

This parameter determines the time it takes for roller blinds to reach the top. For modes with positioning, the value is set automatically during calibration, otherwise, it must be set manually.

Values size: 2 Byte

Default value: 6000

Values & descriptions:

• 1-65535 (0.01-655.35s, every 0.01s) - movement time

Parameter No. 76 - Shutter Motor operation detection

Power threshold to be interpreted as reaching a limit switch.

Values size: 1 Byte

Default value: 1

Values & descriptions:

• 0 - Disabled: reaching a limit switch will not be detected

• 1 - Auto power calibration

• 2 - 1-255 (1-255W) - report interval

Parameter No. 77 - Shutter Time delay for next motor movement

This parameter defines the minimum time duration between successive motor movements (minimum time after which the motor is switched off and on again).

Values size: 1 Byte

Default value: 5

Values & descriptions:

• 1 - 255 = 0.1seconds – 25,5seconds (100ms resolution)

Parameter No. 78 - Forced Shutter calibration

Setting this parameter to the value 3 puts the Device into calibration mode. This parameter is only relevant if the Device is set to operate in positioning mode (Parameter No. 71 set to 0 or 1).

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0-> default setting

• 1-> device is calibrated (status - read only)

• 2-> device is not calibrated (status - read only)

• 3-> start calibration

• 4-> calibration error (status - read only)

Parameter No. 79 - Shutter power consumption max. delay time

Defines the maximum time before the motor power consumption is read from the Device after one of the relays is switched ON. If there is no power consumption within the set time (motor is not connected, is damaged or needs longer time to start, is at the end position), the relay will switch OFF. The max. time is defined by entering it manually.

Values size: 1 Byte

Default value: 3

Values & descriptions:

• 0 = time is set automatically

• 3 - 50 = 0.3seconds - 5seconds (100ms resolution)

Parameter No. 80 - Shutter delay motor stop after reaching the end switch

For blinds, the parameter determines the time after which the motor will be stopped after the end switch contacts are closed. The parameter allows to calibrate devices to soft start by setting a soft start time.

Values size: 1 Byte

Default value: 10

Values & descriptions:

• 0-255 (0-25.5s) - time

Parameter No. 81 - Shutter motor max. moving time

If the Device is not calibrated and the time is set with par. 74 and 75, outputs O1 or O2 are active for the time set by this parameter. The parameter is intended as an additional protection where limit switches are not present.

Values size: 1 Byte

Default value: 120

Values & descriptions:

• value = 1 - 32000s

• value = 65000 = unlimited time

Parameter No. 82 - Shutter obstacle detection power

This parameter defines the threshold where the increase in power consumption is recognized as obstacle detection. Note that this parameter is related to Par. No. 83 and 84.

Values size: 1 Byte

Default value: 20

Values & descriptions:

• 0 - disabled

• 1 - automatic: Shutter set the cut-off threshold by measured power consumption during normal operation + 20% (defined through a test done)

• 2-100 - Set any percentage between 2% and 100%, every 1%, to the cut-off threshold above measured power consumption during normal operation

Parameter No. 83 - Shutter obstacle detection action

The parameter is valid only if obstacle detection is enabled by setting Parameter No. 82 to a value equal to or greater than 1 (1, 2, 3…).

Values size: 1 Byte

Default value: 3

Values & descriptions:

• 1 - Stop While Opening (UP)

• 2 - Stop While Closing (DOWN)

• 3 - Stop While Moving (UP/DOWN)

• 4 - Reverse While Opening

• 5 - Reverse While Closing

• 6 - Reverse While Moving

Parameter No. 84 - Shutter obstacle detection delay

This parameter defines the delay (in seconds) of ‘Shutter obstacle detection action’ after obstacle detection is triggered.

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - No delay

• 1 - 127 (1s resolution)

Parameter No. 85 - Shutter positioning reset

Shutter resets its position every time the top or the lowest position is reached. Moving the shutter between these two extremes may result in a loss of position precision. This parameter, if enabled, counts the up and down movements of the shutter, and if after 29 consecutive movements one of the extreme positions is not reached, the next command shall automatically move up to the top position (position reset) and then move to the set position.

Values size: 1 Byte

Default value: 0

Values & descriptions:

• 0 - Disabled

• 1- Positioning reset enable

Parameter No. 91 - Water Alarm

This parameter determines how the device should respond to the reports of alarm frames. The parameters consist of 4 bytes, the three most significant bytes are set according to the official Z-Wave protocol specification.

The notification types it reacts to are as followed:

Notification Type:

• NOTIFICATION_TYPE_WATER_ALARM 0x05

Notification Events:

• All except ALARM_NO_EVENT 0x00

Values size: 4 Byte
Default value: 0
Values & descriptions:

• 0 no action

• 1 open relay

• 2 close relay

Parameter No. 92 - Smoke Alarm

This parameter determines how the device should respond to the reports of alarm frames. The parameters consist of 4 bytes, the three most significant bytes are set according to the official Z-Wave protocol specification.

The notification types it reacts to are as followed:

Notification Type:

• NOTIFICATION_TYPE_SMOKE_ALARM 0x01

Notification Events:

• NOTIFICATION_EVENT_SMOKE_ALARM_SMOKE_DETECTED 0x01

• NOTIFICATION_EVENT_SMOKE_ALARM_SMOKE_DETECTED_UNKNOWN_LOCATION 0x02

Values size: 4 Byte
Default value: 0
Values & descriptions:

• 0 no action

• 1 open relay

• 2 close relay

Parameter No. 93 - CO Alarm

This parameter determines how the device should respond to the reports of alarm frames. The parameters consist of 4 bytes, the three most significant bytes are set according to the official Z-Wave protocol specification.

The notification types it reacts to are as followed:

Notification Type:

• NOTIFICATION_TYPE_CO_ALARM 0x02

Notification Events:

• All except ALARM_NO_EVENT 0x00

Values size: 4 Byte
Default value: 0
Values & descriptions:

• 0 no action

• 1 open relay

• 2 close relay

Parameter No. 94 - Heat Alarm

This parameter determines how the device should respond to the reports of alarm frames. The parameters consist of 4 bytes, the three most significant bytes are set according to the official Z-Wave protocol specification.

The notification types it reacts to are as followed:

Notification Type:

• NOTIFICATION_TYPE_HEAT_ALARM 0x04

Notification Events:

• NOTIFICATION_EVENT_HEAT_ALARM_RAPID_TEMPERATURE_RISE_LOCATION_PROVIDED 0x03

• NOTIFICATION_EVENT_HEAT_ALARM_RAPID_TEMPERATURE_RISE 0x04

• NOTIFICATION_EVENT_HEAT_ALARM_RAPID_TEMPERATURE_FALL_LOCATION_PROVIDED 0x0C

• NOTIFICATION_EVENT_HEAT_ALARM_RAPID_TEMPERATURE_FALL 0x0D

Values size: 4 Byte
Default value: 0
Values & descriptions:

• 0 no action

• 1 open relay

• 2 close relay

Parameter No. 120 - Factory Reset

Reset to factory default settings and removed from the Z-Wave network.

The parameter is Advanced and may be hidden under the Advanced tag.

Values size: 4 Byte

Default value: 0

Values & descriptions:

• 0 - No action

• 1 - Factory reset

Parameter No. 201 - Serial Number 1

This parameter contains a part of device’s serial number.

The parameter is Read-Only and cannot be changed.
The parameter is Advanced and may be hidden under the Advanced tag.

Values size: 4 Byte

Default value: Device specific

Values & descriptions:

• 0x00000000 - 0x7FFFFFFF

Parameter No. 202 - Serial Number 2

This parameter contains a part of device’s serial number.

The parameter is Read-Only and cannot be changed.
The parameter is Advanced and may be hidden under the Advanced tag.

Values size: 4 Byte

Default value: Device specific

Values & descriptions:

• 0x00000000 - 0x7FFFFFFF

Parameter No. 203 - Serial Number 3

This parameter contains a part of device’s serial number.

The parameter is Read-Only and cannot be changed.
The parameter is Advanced and may be hidden under the Advanced tag.

Values size: 4 Byte

Default value: Device specific

Values & descriptions:

• 0x00000000 - 0x7FFFFFFF

1. APPLICATION_STATUS_V1 [S0, S2]*

2. ASSOCIATION_V2 [S0, S2]*

3. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

4. AUTHENTICATION_V1

5. BASIC_V2 [S0, S2]*

6. CONFIGURATION_V4 [S0, S2]*

7. DEVICE_RESET_LOCALLY_V1 [S0, S2]*

8. FIRMWARE_UPDATE_MD_V5 [S0, S2]*

9. INDICATOR_V3 [S0, S2]*

10. MANUFACTURER_SPECIFIC_V2 [S0, S2]*

11. METER_V6 [S0, S2]*

12. MULTI_CHANNEL_V4 [S0, S2]*

13. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

14. SWITCH_MULTILEVEL_V4 [S0, S2]*

15. NOTIFICATION_V8 [S0, S2]*

16. POWERLEVEL_V1 [S0, S2]*

17. SECURITY_V1

18. SECURITY_2_V1

19. SUPERVISION_V1

20. TRANSPORT_SERVICE_V2

21. VERSION_V3 [S0, S2]*

22. WINDOW_COVERING_V1 [S0, S2]*

23. ZWAVEPLUS_INFO_V2

EndPoint 1

1. ASSOCIATION_V2 [S0, S2]*

2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

3. BASIC_V2 [S0, S2]*

4. METER_V6 [S0, S2]*

5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

6. NOTIFICATION_V8 [S0, S2]*

7. SECURITY_V1

8. SECURITY_2_V1

9. SUPERVISION_V1

10. WINDOW_COVERING_V1 [S0, S2]*

11. ZWAVEPLUS_INFO_V2

EndPoint 2

1. APPLICATION_STATUS_V1 [S0, S2]*

2. ASSOCIATION_V2 [S0, S2]*

3. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

4. BASIC_V2 [S0, S2]*

5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

6. NOTIFICATION_V8 [S0, S2]*

7. SECURITY_V1

8. SECURITY_2_V1

9. SUPERVISION_V1

10. WINDOW_COVERING_V1 [S0, S2]*

11. ZWAVEPLUS_INFO_V2

[S2]* Security S2 Command Class

Supporting Command Class Basic

COMMAND_CLASS_BASIC is mapped into COMMAND_CLASS_SWITCH_BINARY, for enabling Switch (O) O1, O2,.. control:

Switch (O) O1, O2,.. will be turned ON or OFF, after receiving the BASIC_SET command:

Supporting Command Class Indicator

The Device supports the Command Class Indicator V3 (ID 0x50). When the Device receives an indicator set, the LED blinks according to the received indicator set.

Refer to LED Signalization chapter.

Supporting Meter Command Class

The product supports the meter command class and KWh is the default scale report send when the scale type is not present in the received Get.

Overheat detected

Over-current detected O

Over-voltage detected

Obstacle detected

Associations are used for direct communication between the Device and other devices within your Z-Wave network without the need of the Z-Wave gateway.
Max. number of associated devices per group is 9. This value is fixed and cannot be configured.
Each association group supports the association of up to 9 devices (nodes). To avoid network delays, we recommend limiting the number of associated devices to no more than 5 per group. "Lifeline group" is reserved for controlling devices, such as Gateways and remote controllers, or devices who can interpret the reports sent.Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Max. 9 nodes are allowed:

Root device

Root device - Association Group 1 - Lifeline

1. INDICATOR_REPORT : LED status

2. DEVICE_RESET_LOCALLY_NOTIFICATION : triggered upon request

3. SWITCH_BINARY_REPORT : status change report for all outputs O (O, O1, O2, …) - common

4. NOTIFICATION_REPORT : triggered on Overheat

5. NOTIFICATION_REPORT : triggered on Overcurrent detected sum of all outputs O (O1+O2+…)

6. NOTIFICATION_REPORT : triggered on Overvoltage detected

7. METER_REPORT : triggered by the load power consumption of all connected loads to all outputs O (O1+O2+…) (according to the settings of Parameters from No. 36 to 43).

Root device - Association Group 2

Association Group 2
Allowed nodes: 9
It is assigned to switch connected to the SW (SW1) terminal (uses Basic command class).
Triggered by SW (SW1). The device sends according to the state of SW (SW1) (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. This command is reflected to the output of associated device. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Root device - Association Group 3

Association Group 3
Allowed nodes: 9
It is assigned to switch connected to the SW (SW1) terminal (uses Switch Multilevel command class). Triggered by SW (SW1).

It is recommended to use push buttons for this association. Supports the following command classes:

• SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

• SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Root device - Association Group 4

Association Group 4
Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Basic command class).
Triggered by SW2. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Root device - Association Group 5

Association Group 5
Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Switch Multilevel command class). Triggered by SW2.

It is recommended to use push buttons for this association. Supports the following command classes:

• SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

• SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Endpoint 1

Endpoint 1 - Association Group 1 - Lifeline

SWITCH_BINARY_REPORT : status change report for output O (O1)NOTIFICATION_REPORT : triggered on Overcurrent detected O (O1)METER_REPORT : triggered by load power consumption connected to output O (O1) (according to the settings of Parameters No. 36 and 39)

Association Group 2
Allowed nodes: 9
It is assigned to switch connected to the SW (SW1) terminal (uses Basic command class).
Triggered by SW (SW1). The device sends according to the state of SW (SW1) (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. This command is reflected to the output of associated device. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Association Group 3
Allowed nodes: 9
It is assigned to switch connected to the SW (SW1) terminal (uses Switch Multilevel command class). Triggered by SW (SW1).

It is recommended to use push buttons for this association. Supports the following command classes:

• SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

• SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Endpoint 2

Endpoint 2 - Association Group 1 - Lifeline

SWITCH_BINARY_REPORT : status change report for output O2NOTIFICATION_REPORT : triggered on Overcurrent detected O2METER_REPORT : triggered by load power consumption connected to output O2 (according to the settings of Parameters No. 37 and 40)

Association Group 2
Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Basic command class).
Triggered by SW2. The device sends according to the state of SW2 (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. Supports the following command classes:

• BASIC_SET : set On / Off state at the associated device

Association Group 3
Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Switch Multilevel command class). Triggered by SW2.

It is recommended to use push buttons for this association. Supports the following command classes:

• SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

• SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)
