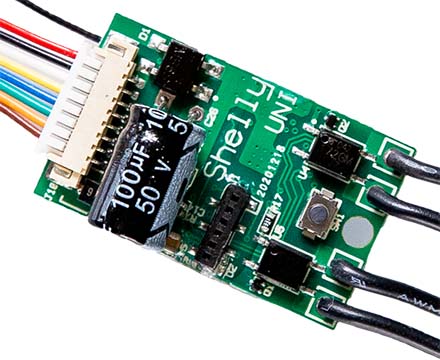

What is Shelly Uni?

The Intelligent Wi-Fi operated implant

Make any old appliance smart! Shelly UNI is the smallest universal module with two available digital inputs and potential-free outputs, providing endless functionalities.

Features

• No HUB required.

• Wide range of voltage support.

• 2 digital inputs

• 2 potential-free outputs

• ADC range can measure any voltage from 0 to 30 VDC

• Supports up to three DS18B20 temperature sensors or a single DHT22 humidity and temperature sensor.

• Transparent insulation cover over the chip protects it from high humidity, dust, and the threat of short circuits

• Designed to fit in most standard electrical boxes and switches.

• It can be integrated to work with all other Shelly devices.

• Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.

• Easily make your Arduino project live and usable in your automation project.

Specification

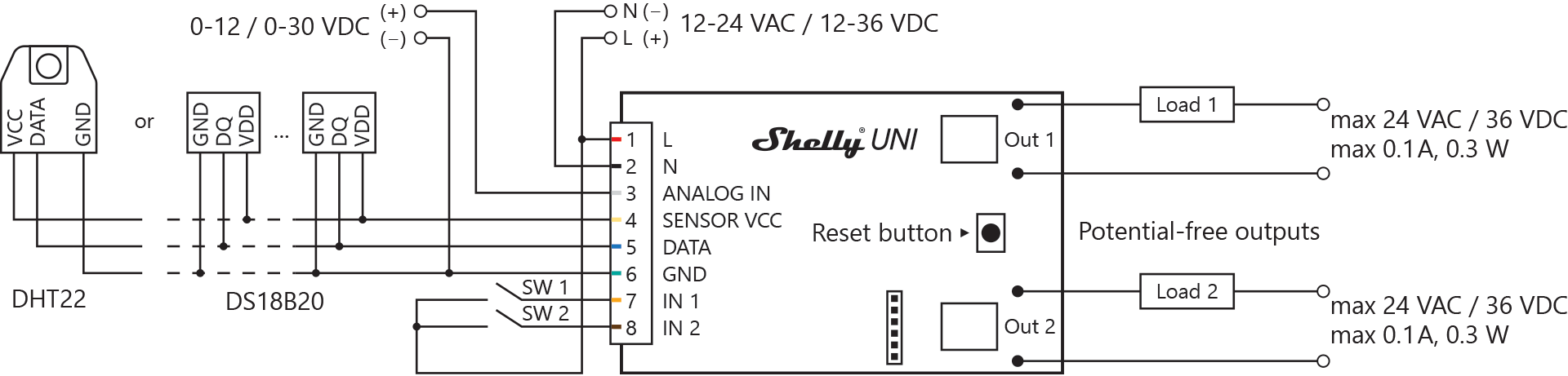

Wiring diagrams
