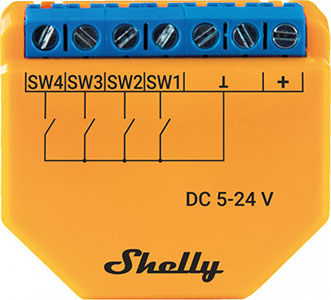

Shelly Plus I4DC

Shelly Plus i4DC

Device identification

  • Device name: Shelly Plus i4DC

  • Device model: SNSN-0D24X

  • Device SSID: ShellyPlusI4DC-XXXXXX

Short description

Shelly Plus i4DC is a smart Wi-Fi switch input that allows you to manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios. You can use Shelly Plus i4DC to control other connected Shelly switches, sensors, or HTTP and MQTT-controlled devices. Small enough to fit behind every wall switch, Shelly Plus i4DC can show the status and control the action of four inputs.

You can access and monitor Shelly Plus i4DC remotely from any place where you have internet connectivity, if the Device is connected to a Wi-Fi router and the Internet.

You can retrofit the Device into standard electrical wall boxes, behind power sockets, light switches, or into other places with limited space.

Shelly Plus i4DC has an embedded Web Interface that you can use to control it and set it up.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Integrations

  • Alexa (through a virtual device routine)

Simplified internal schematics

Device electrical interfaces

Inputs

  • 4 switch/button inputs on screw terminal: SW1, SW2, SW3, and SW4

  • 3 power supply inputs on screw terminals: 1 + and 2 Ʇ

Outputs

N/A

Add-on interface

  • Shelly proprietary serial interface

Shelly Plus 1 addon interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

  • Wi-Fi

  • Bluetooth

Safety features

  • Overheating protection

User interface

Inputs

  • One (Reset) button

    • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

    • Press and hold for 10 seconds to factory reset the Device.

Outputs

  • LED (monocolor) indication

    • AP (Access Point) enabled and Wi-Fi disabled:
      1 second ON / 1 second OFF

    • Wi-Fi enabled, but not connected to a Wi-Fi network:
      1 second ON / 3 seconds OFF

    • Connected to a Wi-Fi network:
      Constantly ON

    • Cloud is enabled, but not connected:
      1 second ON /5 seconds OFF

    • Connected to Shelly Cloud:
      Constantly ON

    • OTA (Over the Air Update):
      ½ sec ON / ½ second OFF

    • Button pressed and held for 5 seconds:
      ½ second ON / ½ second OFF

    • Button presses and held for 10 seconds:
      ¼ second ON / ¼ second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Type

Value

Physical

Size (HxWxD):

37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in

Weight:

17 g / 0.6 oz

Mounting:

Wall box

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.5 to 1.5 mm² / 20 to 16 AWG

Conductor stripped length:

5 to 6 mm / 0.20 to 0.24 in

Shell material:

Plastic

Color:

Neon orange (Pantone 2010C)

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Electrical

Power supply:

5-24 VDC

Power consumption:

< 1 W

Sensors, meters

Internal-temperature sensor:

Yes

Radio

RF band:

2400 - 2495 MHz

Max. RF power:

<20 dBm

Wi-Fi protocol:

802.11 b/g/n

Wi-Fi Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol:

4.2

Bluetooth Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU:

ESP32-U4WDH

Flash:

4 MB

Firmware capabilities

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

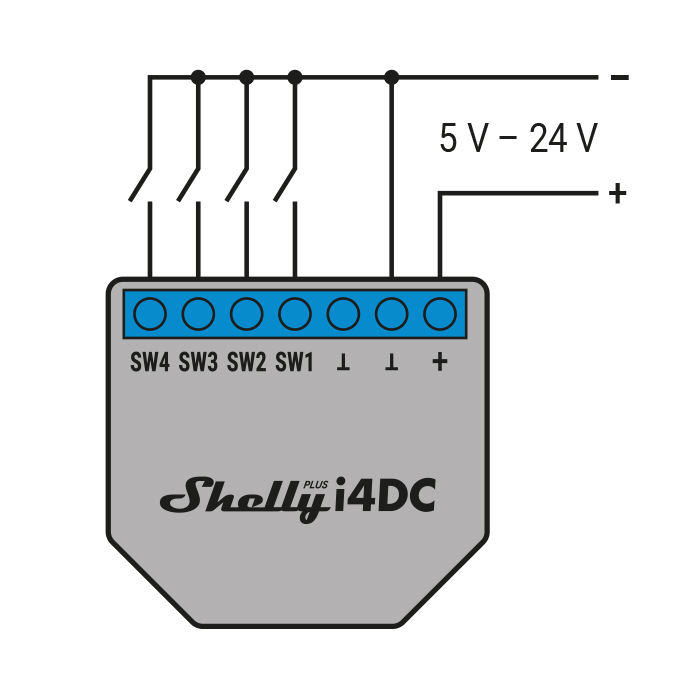

Basic wiring diagrams

Legend

Terminals

Wires

SW1, SW2, SW3, SW4

Switch/button input terminals

+

5-24 VDC positive wire

+

5-24 VDC positive terminal

Ʇ

5-24 VDC negative wire

Ʇ

5-24 VDC negative terminal

⊥

Troubleshooting

...

Web Interface guide

Read the Shelly Plus i4DC web interface guide

Components and APIs

Printed user guide

Shelly Plus i4DC multilingual printed user and safety guide.pdf

Compliance

Shelly Plus i4DC multilingual EU declaration of conformity.pdf

Shelly Plus i4 DC UK PSTI ACT Statement of compliance.pdf
