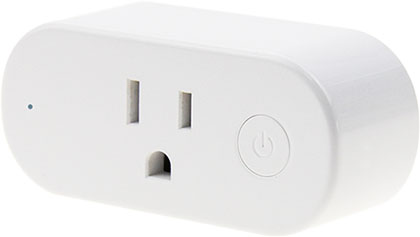

What is Shelly Plug US?
The smallest Wi-Fi smart plug with power мetering
Shelly Plug US automatically monitors and controls lightning, heating or any other connected electrical appliance at home, no matter where you are. When an electric appliance, such as a lamp, is plugged into the Shelly Plug US, you can switch it on and off through the Shelly Cloud mobile application at any time, from anywhere.
Features
No HUB required.
With Shelly Plug US you can control a wide range of devices and appliances.
Shelly Plug US has an integrated precise power meter.
It can be integrated to work with all other Shelly devices.
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
Easily make your Arduino project live and usable in your automation project.
Specification
Power | |
Power supply AC |
110-230V ±10%, 50/60Hz |
Power supply DC |
No |
Special functions | |
Device temperature protection |
Yes |
Overload protection |
Yes |
Power measurement |
Yes |
Features | |
Maximum load |
15A at 110V; 12A at 230V |
Operational temperature |
-10ºC to +50ºC |
Device power consumption |
< 1 W |
Intelligent On/Off |
Yes |
Local and remote control |
Yes |
Sunrise/Sunset |
Yes |
Weekly Schedule |
Yes |
Connectivity | |
Wireless |
802.11 b/g/n |
Wi-Fi Protocol |
802.11 b/g/n |
Wi-Fi Radio frequency |
2400 – 2500 MHz |
Wi-Fi Range |
up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
Dimensions | |
Size |
50mm x 37mm x 83mm |
