Shelly BLU Motion

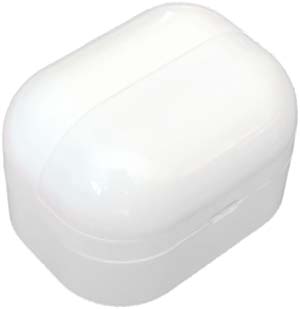

ShellyBLU Motion

Device identification

  • Device name: ShellyBLU Motion

  • Device model: SBMO-003Z

Short description

ShellyBLU Motion (the Device) is a smart Bluetooth motion detection sensor featuring a lux meter.

Features

  • Long battery life

  • Illumination measurement

  • Beacon mode

  • Encrypted mode

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Connectivity

  • Bluetooth

Modes of operation

  • Regular mode - the Device broadcasts the motion detection status, illuminance, and battery status each time the motion-detection status changes (motion is detected or no motion is detected during the blind time). You can adjust the blind time from the Device settings in the Shelly Smart Control application. For more details, visit the Shelly Smart Control guide.

  • Beacon mode - the Device broadcasts the motion detection status, illuminance, and battery status every 30 seconds. You can enable the Beacon mode from the Device settings in the Shelly Smart Control application. For more details, visit the Shelly Smart Control guide.

The battery life may be significantly reduced when the Device is in Beacon mode.

User interface

Inputs

  • One push button (behind the back cover)

    • Press and hold for 10 sec to pair ShellyBLU Motion with another Bluetooth device.

    • Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).

    • Double-press to set the Device in test mode. For a minute, the Device will broadcast every motion detection, indicating it by a red flash.

Specifications

Type

Value

Physical

Size (HxWxD):

32x42x27 ±0.5 mm / 1.26х1.65х1.06 ±0.02 in

Weight:

26 ±1 g / 0.92 ±0.05 oz (Device with the battery)

Shell material:

Plastic

Color:

White

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Electrical

Power supply:

1x 3 V CR2477 battery (included)

Battery life:

5 years

Sensors

PIR

Yes

Light sensor

Yes

Radio

RF band:

2400 - 2483.5 MHz

Max. RF power:

<4 dBm

Bluetooth Protocol:

4.2

Bluetooth Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU:

EFR32BG22C222F352GM32

Firmware capabilities

Encryption:

AES encryption (CCM mode)

Beacon mode:

Yes
