Shelly UNI

Downloads

Manuals

Shelly Uni multilingual printed user and safety guide.pdf

Compliance

Shelly Uni multilingual EU declaration of conformity.pdf

Shelly Uni UK PSTI ACT Statement of compliance.pdf

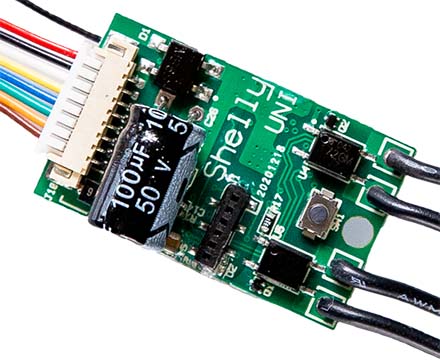

What is Shelly Uni?

The Intelligent Wi-Fi operated implant

Make any old appliance smart! Shelly UNI is the smallest universal module with two available digital inputs and potential-free outputs, providing endless functionalities.

Features

  • No HUB required.

  • Wide range of voltage support.

  • 2 digital inputs

  • 2 potential-free outputs

  • ADC range can measure any voltage from 0 to 30 VDC

  • Supports up to three DS18B20 temperature sensors or a single DHT22 humidity and temperature sensor.

  • Transparent insulation cover over the chip protects it from high humidity, dust, and the threat of short circuits

  • Designed to fit in most standard electrical boxes and switches.

  • It can be integrated to work with all other Shelly devices.

  • Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.

  • Easily make your Arduino project live and usable in your automation project.

Specification

POWER

Power supply AC

12V – 24V

Power supply DC

12V – 36V

SPECIAL FUNCTIONS

Inputs

2 Separated digital inputs from 2.2-36V DC and 12-24V AC

Outputs

2 Potential free outputs up to 24VAC and 36VDC, max 100 mA, 300mW each

Overload protection

No

Power measurement

1 ADC – dual ranges from 0-12V and 0-30V

FEATURES

Channels

2 Channel

Operational temperature

0 to + 40 °C

Device power consumption

< 1 W

Intelligent On/Off

Yes

Sunrise/Sunset

Yes

Weekly Schedule

Yes

UL Listed option

No

CONNECTIVITY

Wireless/WiFi Protocol

802.11 b/g/n

Radiofrequency

2400 – 2500 MHz

Range

up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

DIMENSIONS

Size

20mm x 33mm x 13mm

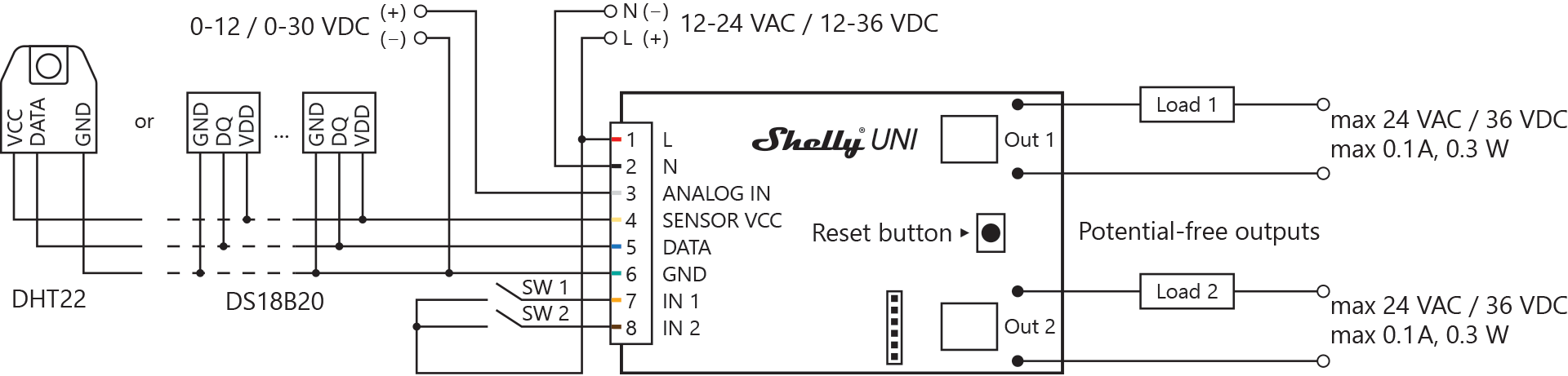

Wiring diagrams
