Shelly Pro Dual Cover PM

Shelly Pro Dual Cover/Shutter PM

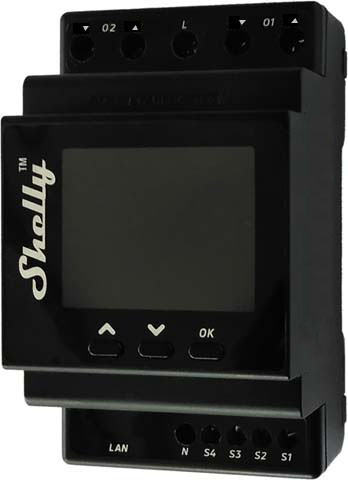

Shelly Pro Dual Cover PM

Device identification

  • Device name: Shelly Pro Dual Cover/Shutter PM

  • Device model: SPSH-002PE16EU

  • Device SSID: ShellyPro2Cover-XXXXXX

Short description

Shelly Pro Dual Cover/Shutter PM (the Device) is a DIN rail mountable smart dual cover controller with power measurement capabilities. Enhanced with all the gen2 firmware flexibility and LAN connectivity, it provides professional integrators with many more options for end-customer solutions. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly Pro Dual Cover PM can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

Shelly Pro Dual Cover PM has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Industrial (factories, power plants, water processing, refineries, etc.)

  • Government/municipal

  • University/college

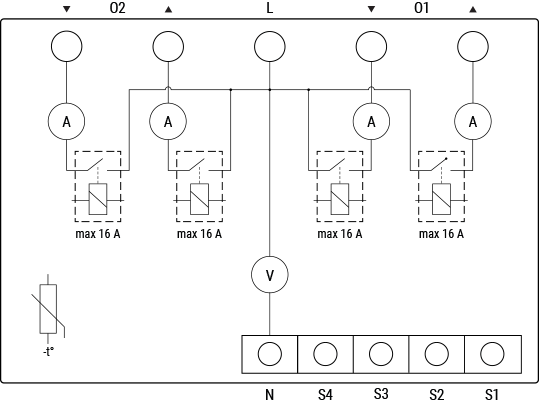

Simplified internal schematics

Shelly Pro Dual Cover PM simplified internal schematics

Device electrical interfaces

Inputs

  • 4 switch/button inputs on screw terminals: S1, S2, S3, S4

  • 2 power supply inputs on screw terminals: 1 N and 1 L

Outputs

  • 4 relay outputs: ▲ and ▼ of O1, ▲ and ▼ of O2

Ethernet port

  • 1 RJ45 connector

⚠CAUTION! Plug in or unplug the LAN cable only when the Device is powered off! The LAN cable connector must not be metallic in the parts touched by the user to plug in or unplug the cable.

Connectivity

  • Wi-Fi

  • Ethernet

  • Bluetooth

Safety features

  • Overheating protection

  • Overvoltage protection

  • Overcurrent protection

  • Overpower protection

Supported load types

  • Bi-directional AC motors with RC Snubbers

User interface

Inputs

Three press buttons on the front plate:

  • Left button:

    • Press to scroll up in the currently displayed menu

  • Middle button:

    • Press to scroll up in the currently displayed menu

  • Right button:

    • Press to wake up the Device display

    • Press and hold to get into the menu screen

    • Press to select a menu item

    • Press and hold while in a sub menu to go back

Outputs

Color LCD.

The LCD top bar displays short status information:

  • Time

  • Bluetooth connection status

    • Disabled - no icon

    • Enabled - blue icon

  • LAN status:

    • Disabled - no icon

    • Enabled, but not connected - red icon

    • Connected - green icon

  • Wi-Fi STA status:

    • Disabled - no icon

    • Enabled, but not connected - red icon

    • Connected - green icon

  • Wi-Fi AP status:

    • Disabled - no icon

    • Enabled, but not connected - red icon

    • Connected - green icon

  • Cloud status:

    • Disabled - no icon

    • Enabled, but not connected - red icon

    • Connected - green icon

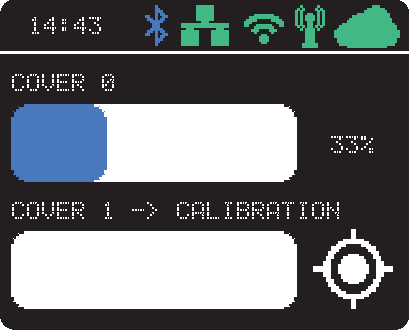

The rest of the LCD is used to display the Device menu screens:

  • Main (default) screen displays for each cover:

    • Name of the cover (can be changed in the device settings).

    • Slider, which visualizes the position of the cover.

    • Notification area, which shows the position of the covers in percentage or an icon indicating an event (calibration, obstruction, overvoltage, overcurrent, or overpower).
      The events are also transcribed next to the cover name.

  • Network:

    • Wi-Fi AP enable/disable

    • Wi-Fi STA enable/disable

    • Ethernet enable/disable

    • Bluetooth enable/disable

  • Status:
    Displays complete status information

  • Maintenance

    • Wi-Fi reset

    • Factory reset

    • Reboot

Specifications

Type

Value

Physical

Size (HxWxD):

96x53x59 ±0.02 mm / 3.78x2.01x2.32 ±0.02 in

Weight:

150 g / 5.30 oz

Mounting:

DIN rail

Screw terminals max torque:

0.4 Nm / 3.5 lbin (green connectors)

Conductor cross section:

0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in (green connectors)

Shell material:

Plastic

Color:

Dark gray

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Electrical

Power supply voltage AC:

110 - 240 V

Power supply voltage DC:

N/A

Power consumption:

< 3 W

Neutral not needed:

No

Output circuits ratings

Max switching voltage AC:

240 V

Max switching voltage DC:

N/A

Max switching current AC:

16 A per output

Max switching current DC:

N/A

Sensors, meters

Voltmeter (AC)

Yes

Ammeter (AC)

Yes

Internal temperature sensor:

Yes

Radio

RF band:

2400 - 2495 MHz

Max. RF power:

<20 dBm

Wi-Fi protocol:

802.11 b/g/n

Wi-Fi Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol:

4.2

Bluetooth Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU:

ESP32-D0WDQ6

Flash:

8 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

CoAP:

No

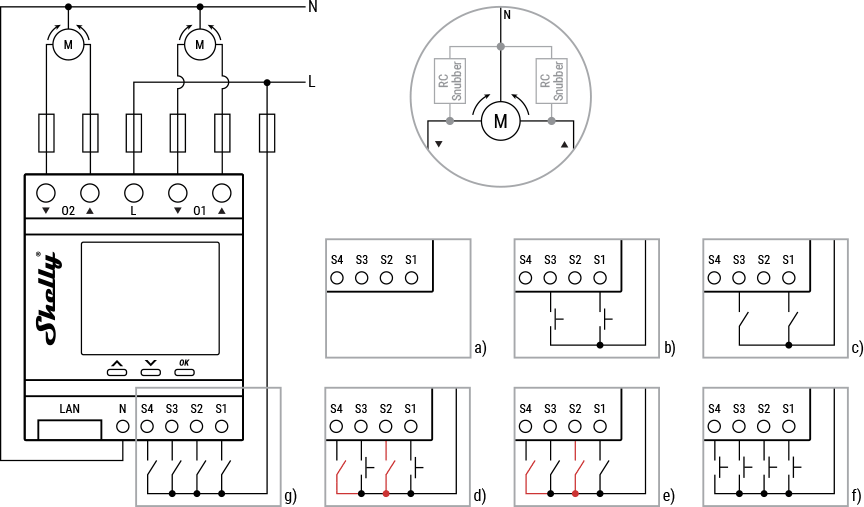

Basic wiring diagram

Shelly Pro Dual Cover PM

Legend

Terminals

Wires

O1, O2

Cover 1 and Cover 2 output terminal pairs

L

Live (110-240 V) wire

▲, ▼

Cover direction output terminals

N

Neutral wire

S1, S2

Switch/button input terminals for controlling Cover 1

S3, S4

Switch/button input terminals for controlling Cover 2

L

Live (110-240 V) terminal

N

Neutral terminal

LAN

Local Area Network RJ 45 connector

Troubleshooting

...

Components and APIs

Compliance

Shelly Pro Dual Cover Shutter PM multilingual EU declaration of conformity.pdf

Shelly Pro Dual Cover PM UK PSTI ACT Statement of compliance.pdf

Printed user guide

Shelly Pro Dual CoverShutter PM multilingual printed user guide.pdf
