Shelly EM
Downloads
Manuals
Compliance
Shelly EM multilingual EU declaration of conformity.pdf

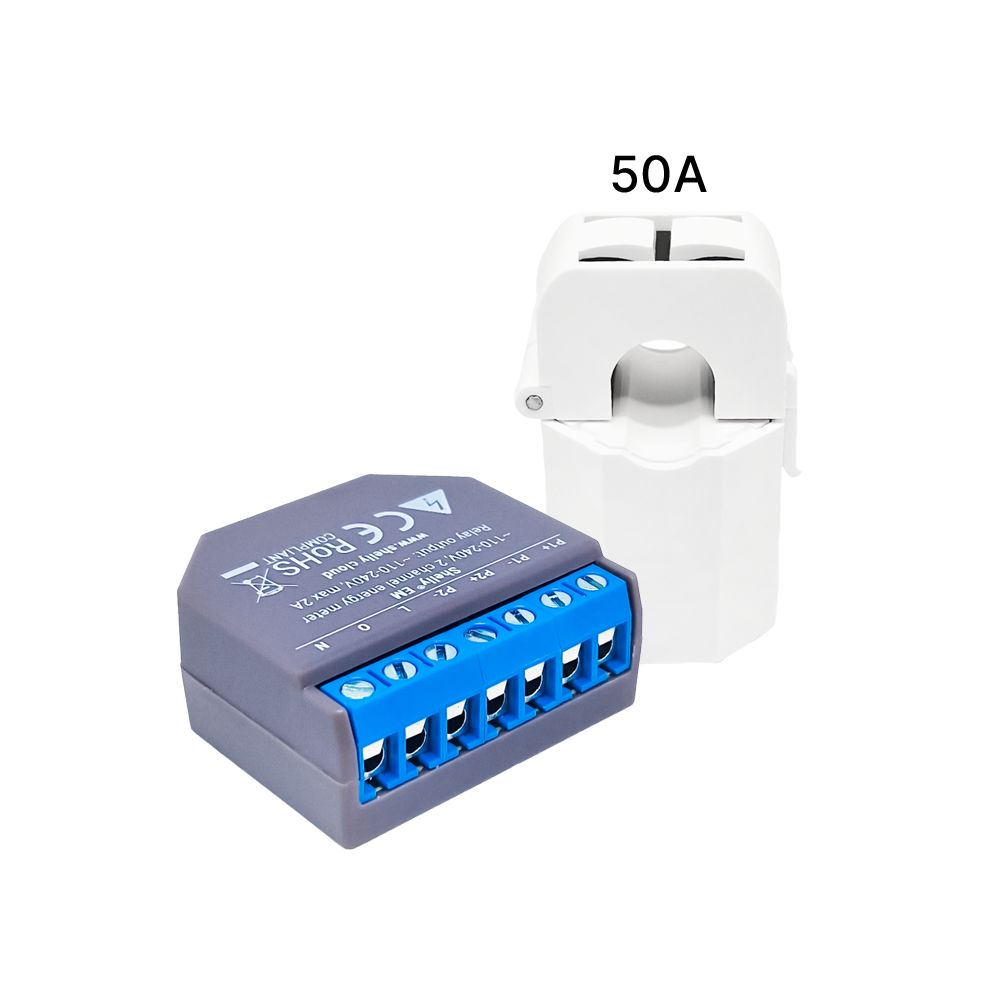

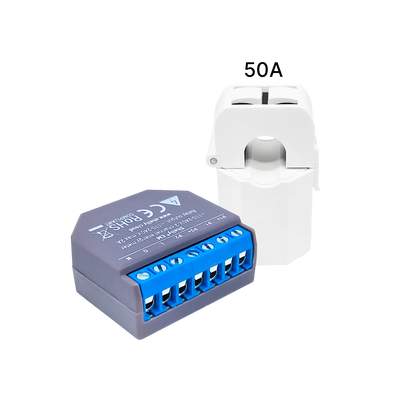

Shelly EM + 50A UK PSTI ACT Statement of compliance.pdf

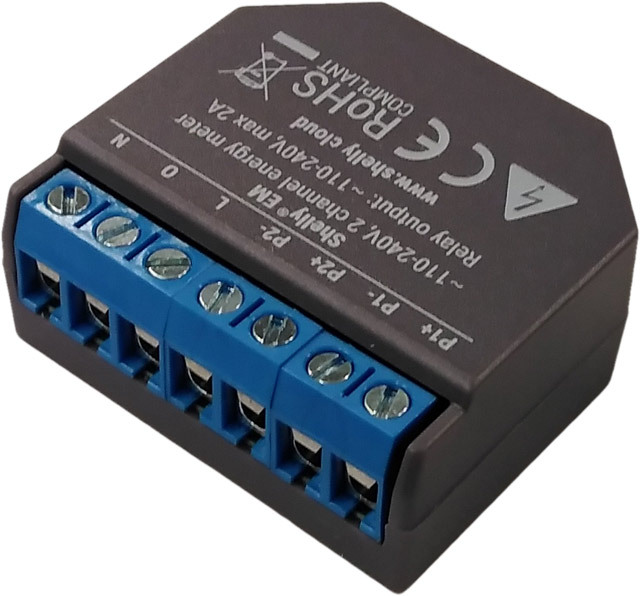

What is Shelly EM?
365 day built-in energy history
We developed Shelly ЕМ to allow you to monitor the status and history, as well as the current and past electrical power consumption for the day, week, month or year.
Features
No HUB required.
Internal temperature sensor for overheating protection.
Shelly EM can automatically turn off the whole circuit if consumption or energy (prepaid energy option) reaches the set limit.
Designed to fit in most standard electrical boxes and switches.
It can be integrated to work with all other Shelly devices.
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
Easily make your Arduino project live and usable in your automation project.
Specification
POWER | |
Power supply AC |
110-240 V, 50/60Hz |
Power supply DC |
No |
SPECIAL FUNCTIONS | |
Contactor Control |
Yes – max 2A |
Roller shutter mode |
No |
Device temperature protection |
Yes |
Overload protection |
No |
Power measurement |
Yes |
FEATURES | |
Channels |
2 Channel (Single phase) |
Operational temperature |
-20 °C to 40 °C |
Device power consumption |
< 1 W |
Intelligent On/Off |
Yes |
Local and remote control |
Yes |
Sunrise/Sunset |
Yes |
Weekly Schedule |
Yes |
UL Listed option |
No |
CONNECTIVITY | |
RF band: |
2401-2483 МHz |
Max. RF power: |
<20 dBm |
Wi-Fi protocol: |
802.11 b/g/n |
Wi-Fi Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
DIMENSIONS | |
Size |
39mm x 36mm x 17 mm |

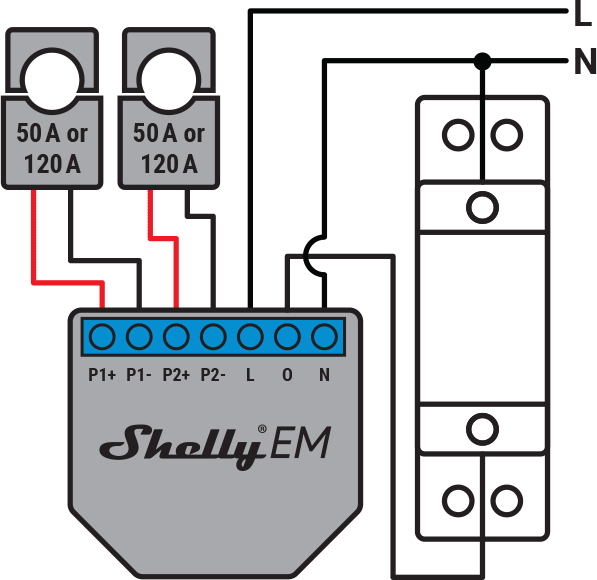

Wiring diagrams
Use cases
Detailed info about your electricity consumption
With Shelly EM, you can view the quality of your electricity network regarding active power, reactive power, voltage, and power factor. Monitor your facility or home to avoid additional expenses or drastic drops in energy that may damage your appliances and machines.
Projects
Shelly Power Consumption Alarm Signal
Always be notified and monitor your power consumption with Shelly EM, so your power counter never cuts-out your electricity.
Shelly EM Auto Toggle Based on Solar Panels Production
Learn how you can use Shelly EM to auto toggle based on the production of your solar panels.
