What is Shelly Dimmer 2?

Dimming without a neutral line

We developed Shelly Dimmer 2 to be able to cover all possible electrical installations all over the world. Shelly Dimmer 2 can be used in houses where the neutral line is missing and provides a full set of dimming functionalities. You can control a wide range of halogen lights, dimmable LEDs and ferromagnetic transformers.

Features

  • No HUB required.

  • Dimming without a neutral line.

  • Turn ON/OFF or use the dimming function to set the brightness to your preferred intensity,

  • Integrated internal temperature sensor for overheating protection.

  • Designed to fit in most standard electrical boxes and switches.

  • It can be integrated to work with all other Shelly devices.

  • Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.

  • Easily make your Arduino project live and usable in your automation project.

Specification

POWER

Power supply AC

110-230V ±10%, 50/60Hz

SPECIAL FUNCTIONS

Device temperature protection

Yes; 95°C

Overload protection

Yes

Power measurement

Yes

Dimming

Yes

Operational current:

0.1-1.1 A

Dimmable LED

50-200VA / 10W – 200W

Incandescent and halogen light sources

10-220W

Working without a neutral line

Yes

FEATURES

Colour changing

No

Predefined effects

Yes

Channels

1 Channel

Operational temperature

0 to + 40°C

Device power consumption

< 1 W

Intelligent On/Off

Yes

Local and remote control

Yes

Sunrise/Sunset

Yes

Weekly Schedule

Yes

UL Listed option

No

CONNECTIVITY

Wireless/WiFi Protocol

802.11 b/g/n

Radiofrequency

2400 – 2500 MHz

Range

up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

DIMENSIONS

Size

42mm x 36mm x 14 mm

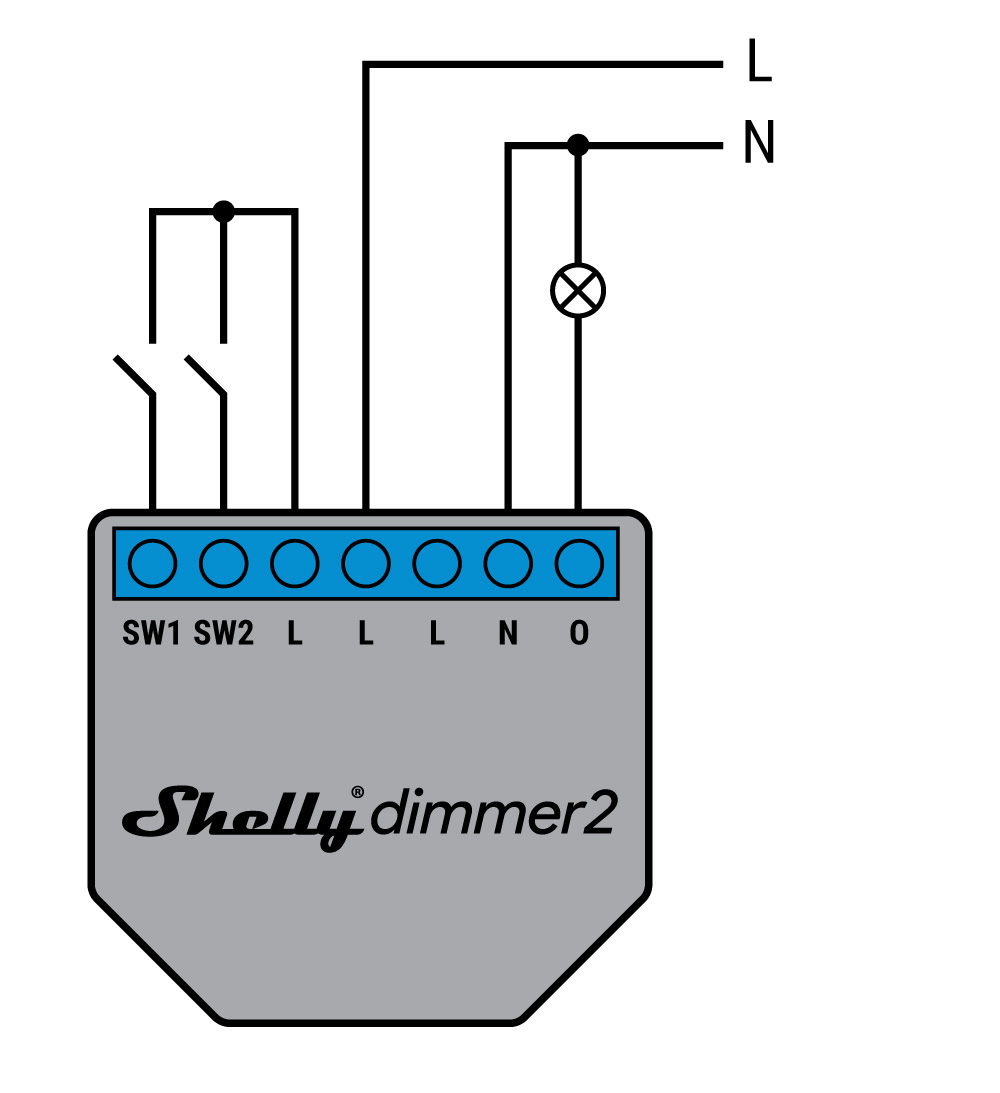

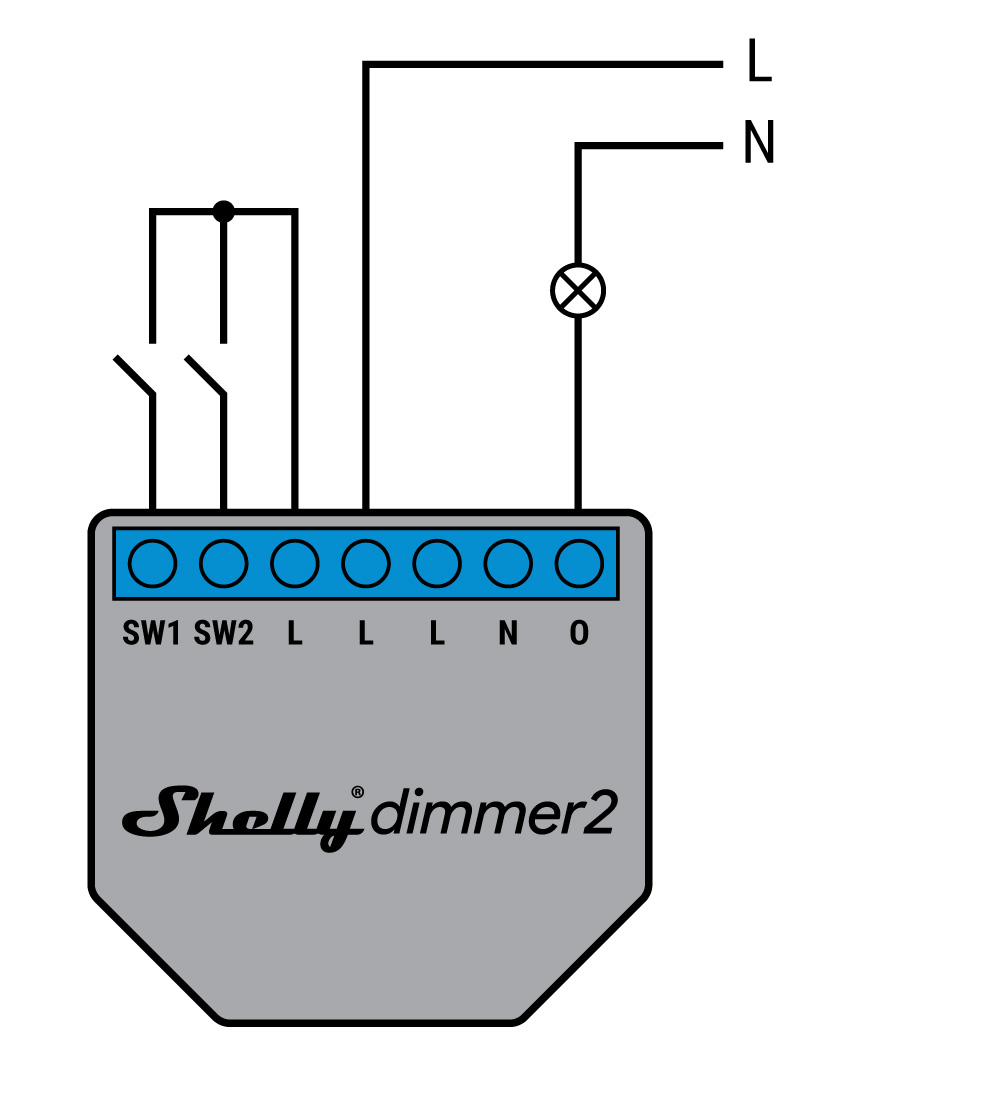

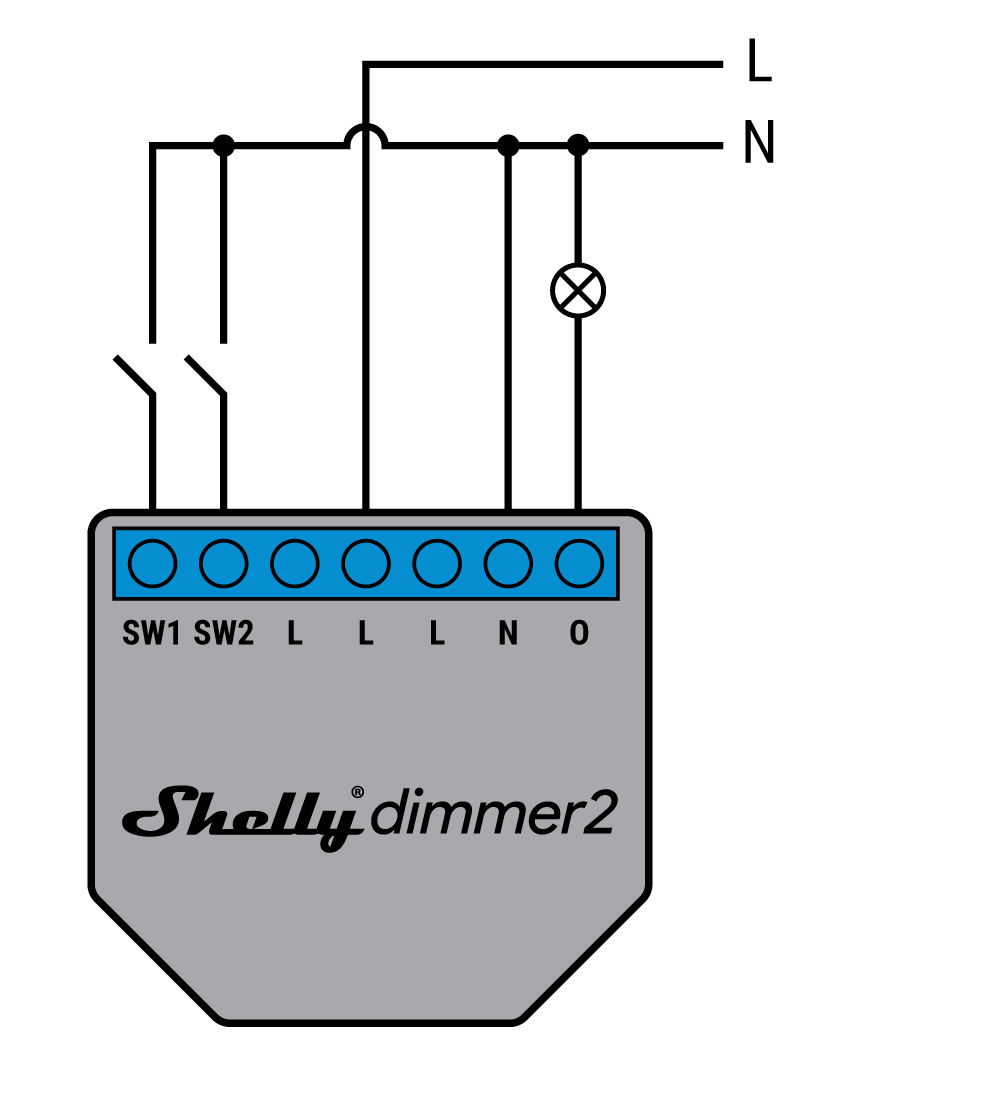

Wiring diagrams

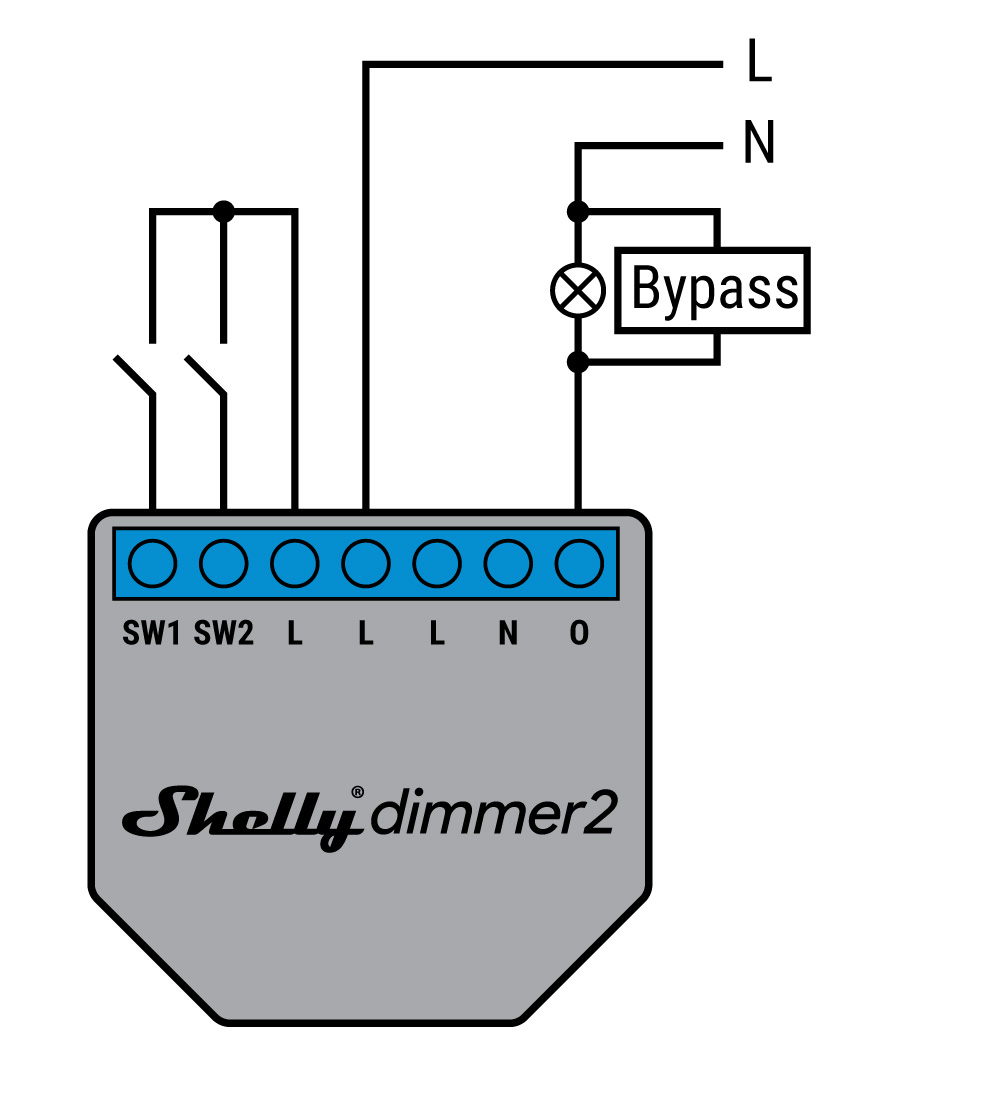

*When using the device without neutral, Shelly Dimmer 2 requires at least 20W @ 240 VAC of power consumption to operate. If the connected light has a smaller power consumption, then Shelly Bypass is needed for the device to work.

Use cases

Lighting control

Install Shelly Dimmer, and control any lights at home easily via your smartphone or with your voice. When you are reading your favorite book in the evening, picking a stronger light will ease your eyes. Also, dimming the lights during movie nights has never been easier!
