Shelly Blu Button Tough 1

Shelly BLU Button Tough 1

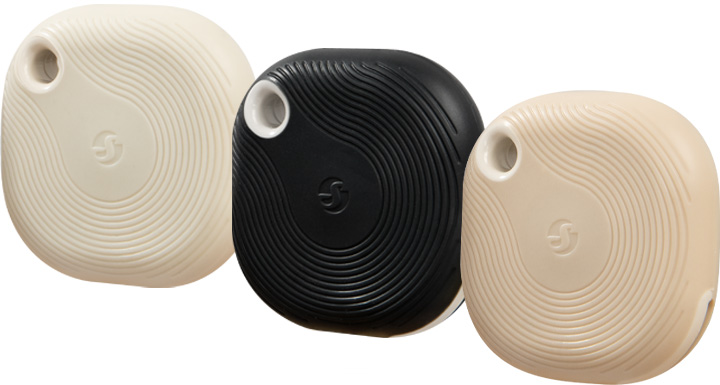

Device image

Shelly BLU Button Tough 1.jpg

Device identification

  • Device name: Shelly BLU Button Tough 1

  • Device model: SBBT-002C

  • Device Bluetooth ID: 0x0001

Short description

Shelly BLU Button Tough 1 (the Device) is a smart shock, water, and dust-resistant Bluetooth button of a compact size. It features a long battery life, supports multi-click and strong encryption.

Main features

  • Long battery life

  • Shock, water, and dust-resistant

  • Supports multi-click

  • Compact size, portability, and ease of use

  • Strong encryption

Use cases

  • Lighting control: Assign a button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.

  • Garage door opener: Use the strong encryption of Shelly BLU Button Tough 1 and control your smart garage door opener as you approach or leave your garage.

  • Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.

  • Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the button for presence control, for example to keep lights on while you need to spend some time in a certain area.

Connectivity

  • Bluetooth

User interface

Inputs

  • One push button

    • Press and hold for 10 sec to pair ShellyBLU Button Tough 1 with another Bluetooth device.

    • Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).

Specifications

Quantity

Value

Physical

Size (HxWxD):

42x42x13 mm / 1.65x1.65x0.51 in

Weight:

15 g / 0.53 oz

Shell material:

Plastic

Shell color:

  • Black: C-0%; M-0%; Y-0%; K-100%

  • Mocha: C-0%; M-12%; Y-28%; K-12%

  • Ivory: C-3%; M-4%; Y-14%; K-8%

Environmental

Ambient working temperature:

-20 °C to 60 °C / -5 °F to 140 °F

Humidity:

0% to 90% RH

Electrical

Power supply:

1x 3 V battery (included)

Battery type:

CR2032

Estimated battery life:

Up to 2 years

Bluetooth

Protocol:

4.2

RF band:

2400 - 2483.5 MHz

Max. RF power:

< 4 dBm

Range:

Up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)

Encryption:

AES (CCM mode)

Troubleshooting

…

Components and APIs

Compliance

Shelly BLU Button Tough 1 multilingual EU declaration of conformity.pdf

Battery material safety data sheet

CR-PSDS-01 Panasonic MSDS

Printed user guide

Shelly BLU Button tough 1 multilingual printed user and safety guide.pdf
