Physical

Size (HxWxD):

84x54x48 ±0.5 mm / 3.31x2.13x1.89 ±0.02 in (without the cable)

Weight:

290 ±1 g / 10.23 ±0.05 oz (with the cable)

Conductor aperture:

Ø35 mm / 1.38 in

Core:

Ferite

Shell material:

Plastic

Color:

White

Environmental

Ambient temperature:

-10 °C to 50 °C / 14 °F to 122 °F

Humidity:

0 % to 80 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Primary/secondary current ration:

3000/1

Rated max. primary current:

400 A

Electrical strength:

3000 VAC, 60 sec

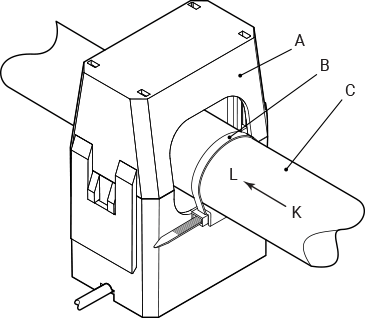

A

Shelly CT400A

B

Cable tie (another one on the opposite side)

C

Primary conductor
